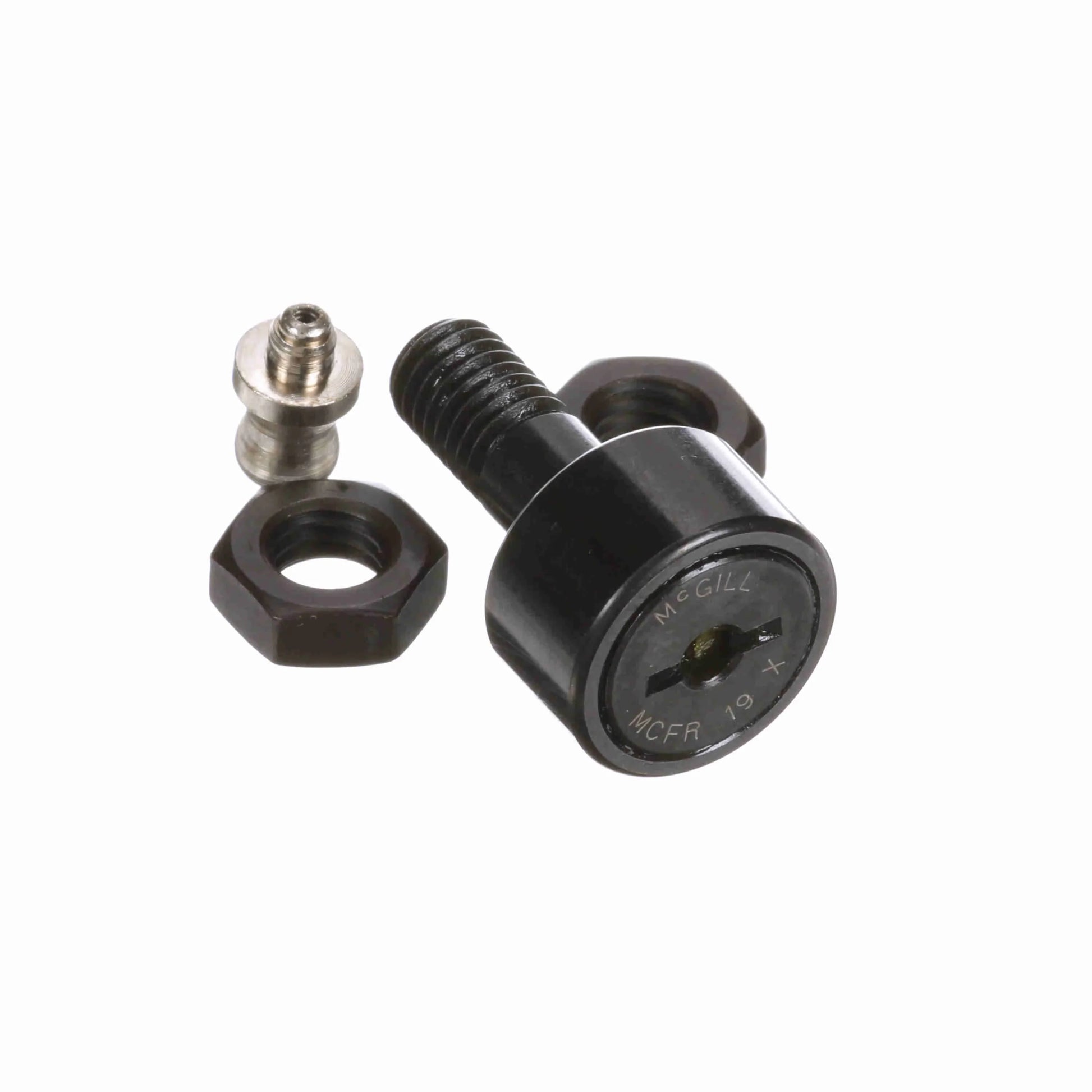

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Metric Cam Follower - Stud Mount Roller - Screwdriver Slot - MCFR 19 X
General Specifications
| UPC: | 726166015459 | Weight: | 0.10 LB |
| Packaged Length: | 1.4 Inches | Packaged Width: | 1.5 Inches |
| Packaged Height: | 1.3 Inches | Country of Origin: | China |
Dimensions
| Threads: | M8x1.25 | Roller Width - mm: | 11 mm |
| Minimum Thread Length: | 11 | Reamed Hole - mm: | 4 mm |
| Stud Diameter - mm: | 8 mm | Lubrication Fitting Size - Metric: | 4 |
| Roller Diameter - mm: | 19 mm | Overall Length - mm: | 32 mm |
| Stud Length - mm: | 20 mm |
Technical Specifications
| Dynamic Radial Rating: | 839 | Hex/Slot: | Screwdriver Slot |
| Rolling Element: | Needle Roller - Caged | Limiting Speed: | 15,500 |
| Dynamic Track Roller Load Rating (N): | 3,730 N | O.D. Configuration: | Cylindrical |
| Sealing: | Unsealed | Adjustment: | None |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Industry Standard: | DIN / JIS | Static Load Rating: | 4,140 |
| Dynamic Load Rating - lb: | 2,460 | Roller Shape: | Cylindrical |
| Platform: | CAMROL® | Dynamic Load Rating - N: | 4,510 |
| Tolerance Class: | P0 Equivalent | Clamping Torque - Nm: | 8 |
| Static Track Roller Load Rating: | 4,140 | Stud Type: | Standard Stud |
| Lubrication Hole Location: | Stud side |
