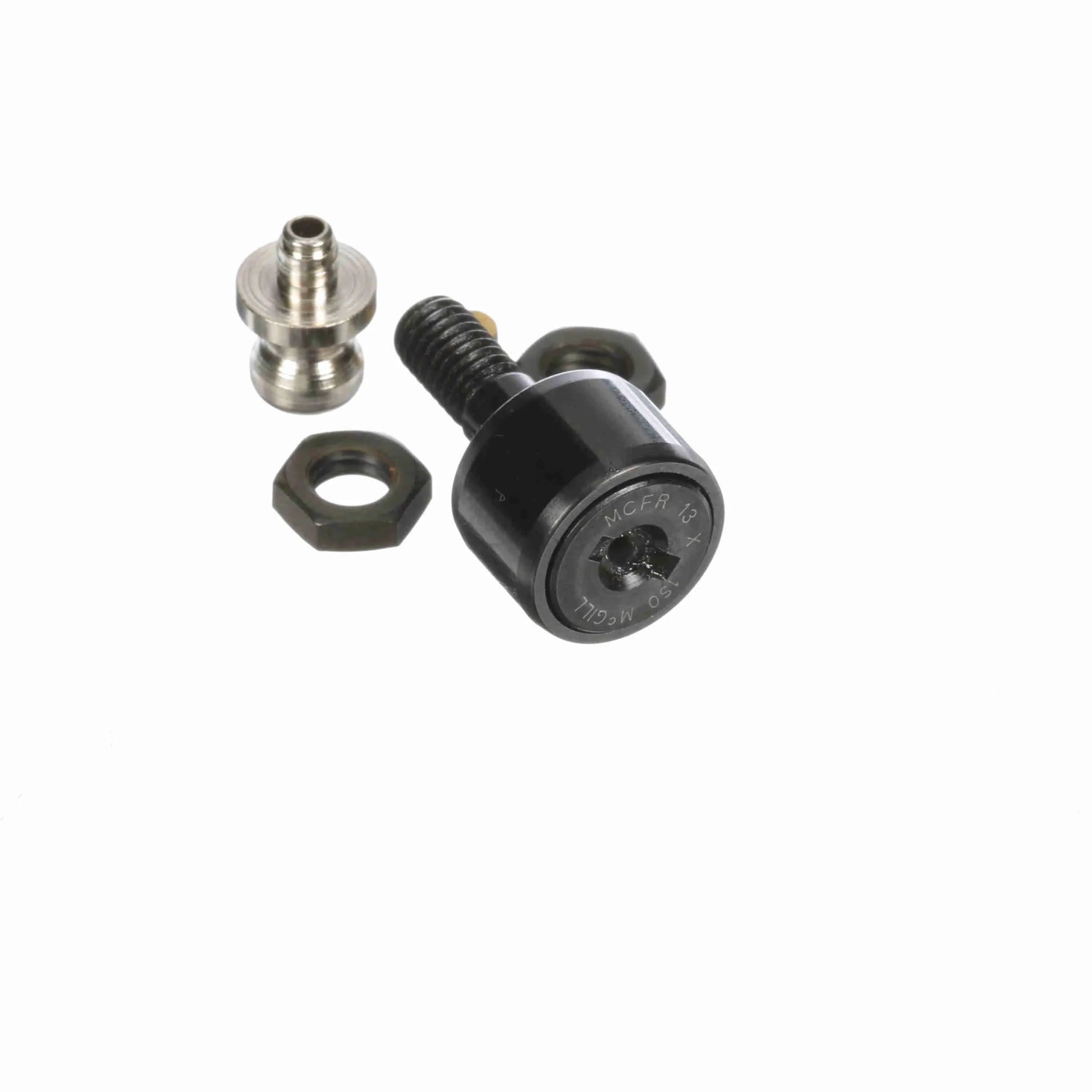

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Metric Cam Follower - Stud Mount Roller - Screwdriver Slot - MCFR 13 X
General Specifications
| UPC: | 726166013998 | Weight: | 0.07 LB |
| Packaged Length: | 1.65 Inches | Packaged Width: | 1.38 Inches |
| Packaged Height: | 1.38 Inches | Country of Origin: | China |
Dimensions
| Threads: | M5x0.8 | Minimum Thread Length: | 7.5 |
| Stud Diameter - mm: | 5 mm | Reamed Hole - mm: | 3.1 mm |
| Roller Width - mm: | 9 mm | Overall Length - mm: | 23 mm |
| Lubrication Fitting Size - Metric: | 3.1 | Stud Length - mm: | 13 mm |
| Roller Diameter - mm: | 13 mm |
Technical Specifications
| Rolling Element: | Needle Roller - Caged | Dynamic Track Roller Load Rating (N): | 2,060 N |
| Sealing: | Unsealed | O.D. Configuration: | Cylindrical |
| Dynamic Radial Rating: | 463 | Adjustment: | None |
| Limiting Speed: | 20,000 | Hex/Slot: | Screwdriver Slot |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Tolerance Class: | P0 Equivalent | Roller Shape: | Cylindrical |
| Industry Standard: | DIN / JIS | Stud Type: | Standard Stud |
| Dynamic Load Rating - N: | 2,450 | Platform: | CAMROL® |
| Dynamic Load Rating - lb: | 2,460 | Static Track Roller Load Rating: | 1,650 |
| Static Load Rating: | 1,650 | Clamping Torque - Nm: | 2.2 |
| Lubrication Hole Location: | Stud side |
