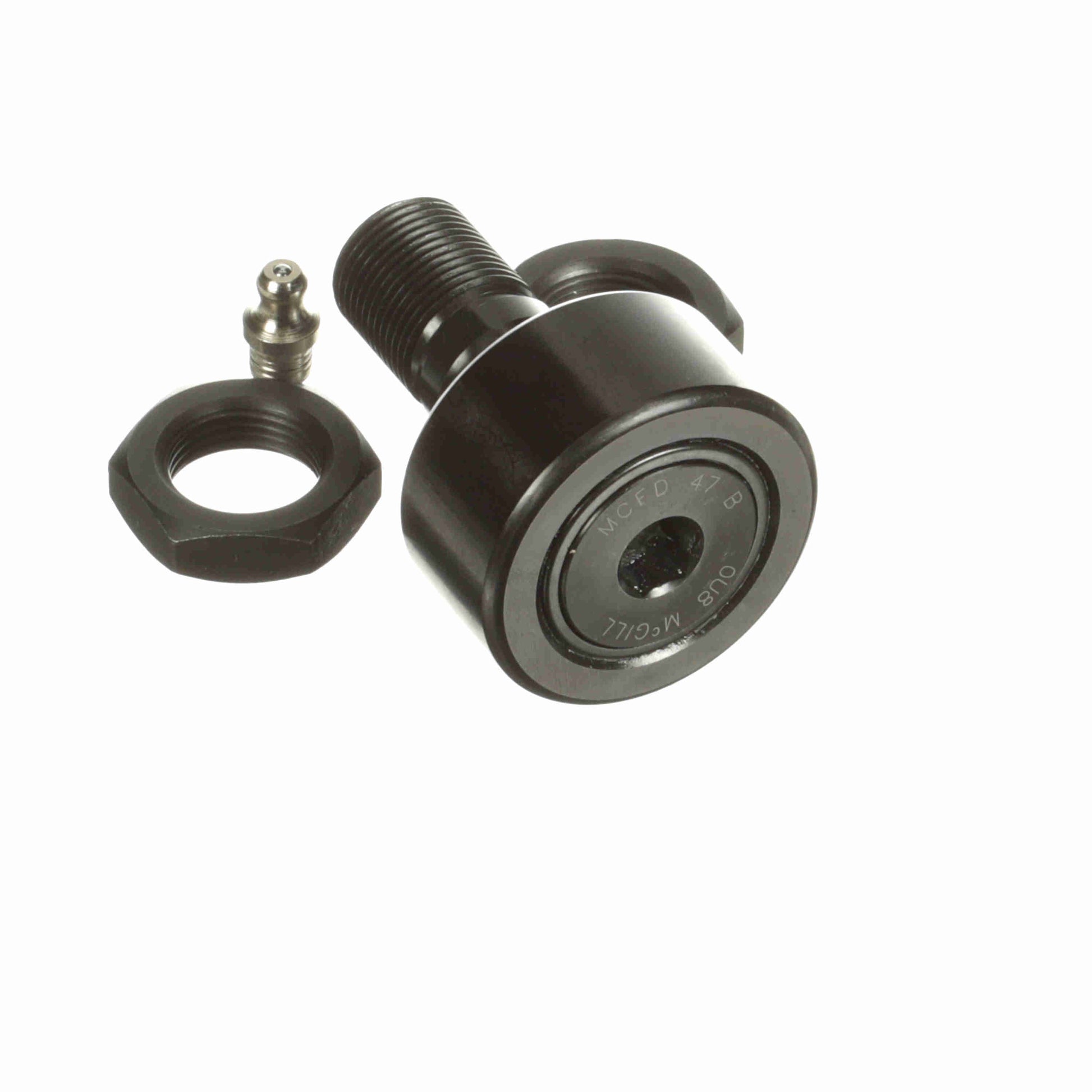

รายละเอียด ตลับลูกปืน McGill CAMROL® Crowned Heavy Duty Metric Cam Follower - Stud Mount Roller - Hex Hole - Shielded - MCFD 47 B
General Specifications
| UPC: | 726166111854 | Weight: | 1.01 LB |
| Packaged Length: | 2.76 Inches | Packaged Width: | 2.21 Inches |
| Packaged Height: | 2.21 Inches | Country of Origin: | China |
Dimensions
| Crown Radius: | 19.685039 | Threads: | M20x1.5 |
| Roller Width - mm: | 24 mm | Minimum Thread Length: | 21 |
| Stud Length - mm: | 40.5 mm | Roller Diameter - mm: | 47 mm |
| Reamed Hole - mm: | 8 mm | Oil Hole Center - mm: | 9 mm |
| Lubrication Fitting Size - Metric: | 8 | Stud Diameter - mm: | 20 mm |
| Endplate Outer Diameter: | 27 | Oil Hole Diameter - mm: | 4 mm |
| Overall Length - mm: | 66 mm |
Technical Specifications
| Hex/Slot: | Hex Hole | Dynamic Track Roller Load Rating: | 6,070 lbs |
| Dynamic Track Roller Load Rating (N): | 27,000 N | Adjustment: | None |
| Limiting Speed: | 4,200 | Rolling Element: | Cylindrical Roller |
| Dynamic Radial Rating: | 6,070 | Sealing: | Shielded |
| O.D. Configuration: | Crowned | Relubricatable: | Yes |
| Material: | Bearing Steel, Black Oxide Finish | Roller Shape: | Crowned |
| Static Load Rating: | 32,000 | Platform: | CAMROL® |
| Static Track Roller Load Rating: | 32,000 | Stud Type: | Standard Stud |
| Clamping Torque - Nm: | 118 | Tolerance Class: | P0 Equivalent |
| Dynamic Load Rating - N: | 38,000 |
