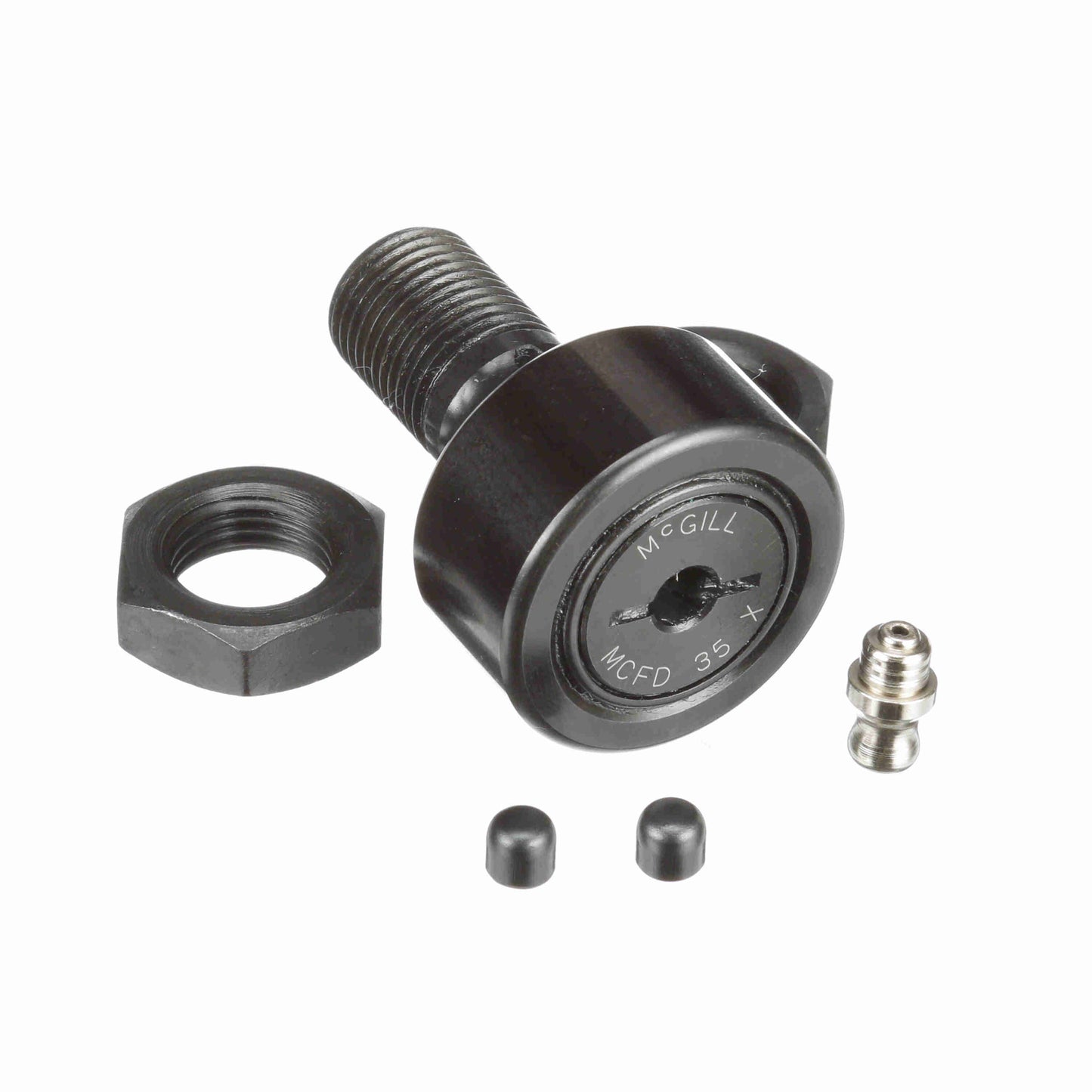

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Heavy Duty Metric Cam Follower - Stud Mount Roller - Screwdriver Slot - Shielded - MCFD 35 X
General Specifications
| UPC: | 726166020750 | Weight: | 0.48 LB |
| Packaged Length: | 1.8 Inches | Packaged Width: | 1.7 Inches |
| Packaged Height: | 2.5 Inches | Country of Origin: | China |
Dimensions
| Threads: | M16x1.5 | Oil Hole Center - mm: | 8 mm |
| Roller Diameter - mm: | 35 mm | Roller Width - mm: | 18 mm |
| Stud Length - mm: | 32.5 mm | Overall Length - mm: | 52 mm |
| Reamed Hole - mm: | 6 mm | Minimum Thread Length: | 17 |
| Stud Diameter - mm: | 16 mm | Lubrication Fitting Size - Metric: | 6 |
| Endplate Outer Diameter: | 21 | Oil Hole Diameter - mm: | 3 mm |
Technical Specifications
| Limiting Speed: | 6,500 | Adjustment: | None |
| Hex/Slot: | Screwdriver Slot | Rolling Element: | Cylindrical Roller |
| Dynamic Track Roller Load Rating (N): | 16,000 N | O.D. Configuration: | Cylindrical |
| Sealing: | Shielded | Dynamic Radial Rating: | 3,597 |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Platform: | CAMROL® | Dynamic Load Rating - N: | 23,000 |
| Static Load Rating: | 18,000 | Stud Type: | Standard Stud |
| Roller Shape: | Cylindrical | Static Track Roller Load Rating: | 18,000 |
| Clamping Torque - Nm: | 57 | Tolerance Class: | P0 Equivalent |
