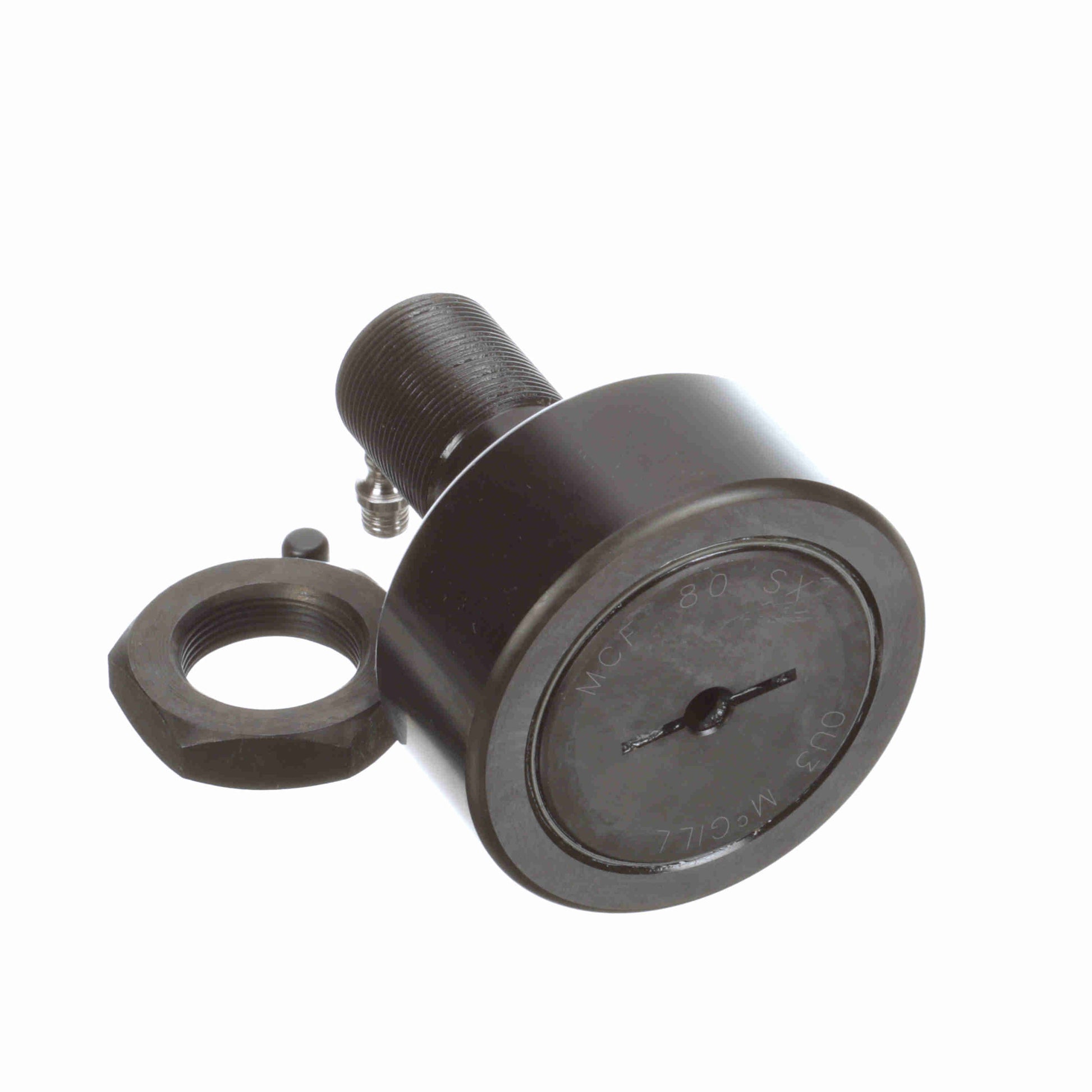

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Metric Cam Follower - Stud Mount Roller - Screwdriver Slot - Sealed - MCF 80 SX
General Specifications
| UPC: | 726166027292 | Weight: | 4.08 LB |
| Packaged Length: | 4.41 Inches | Packaged Width: | 3.27 Inches |
| Packaged Height: | 3.27 Inches | Country of Origin: | China |
Dimensions
| Threads: | M30x1.5 | Oil Hole Diameter - mm: | 4 mm |
| Roller Diameter - mm: | 80 mm | Stud Length - mm: | 63 mm |
| Overall Length - mm: | 100 mm | Oil Hole Center - mm: | 15 mm |
| Roller Width - mm: | 35 mm | Minimum Thread Length: | 32 |
| Lubrication Fitting Size - Metric: | 8 | Stud Diameter - mm: | 30 mm |
| Reamed Hole - mm: | 8 mm |
Technical Specifications
| Sealing: | Sealed | O.D. Configuration: | Cylindrical |
| Hex/Slot: | Screwdriver Slot | Dynamic Track Roller Load Rating (N): | 64,140 N |
| Dynamic Radial Rating: | 14,420 | Adjustment: | None |
| Rolling Element: | Needle Roller - Full Complement | Limiting Speed: | 1,500 |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Platform: | CAMROL® | Industry Standard: | DIN / JIS |
| Static Load Rating: | 102,300 | Clamping Torque - Nm: | 441 |
| Tolerance Class: | P0 Equivalent | Stud Type: | Standard Stud |
| Dynamic Load Rating - N: | 76,980 | Roller Shape: | Cylindrical |
| Static Track Roller Load Rating: | 102,300 |
