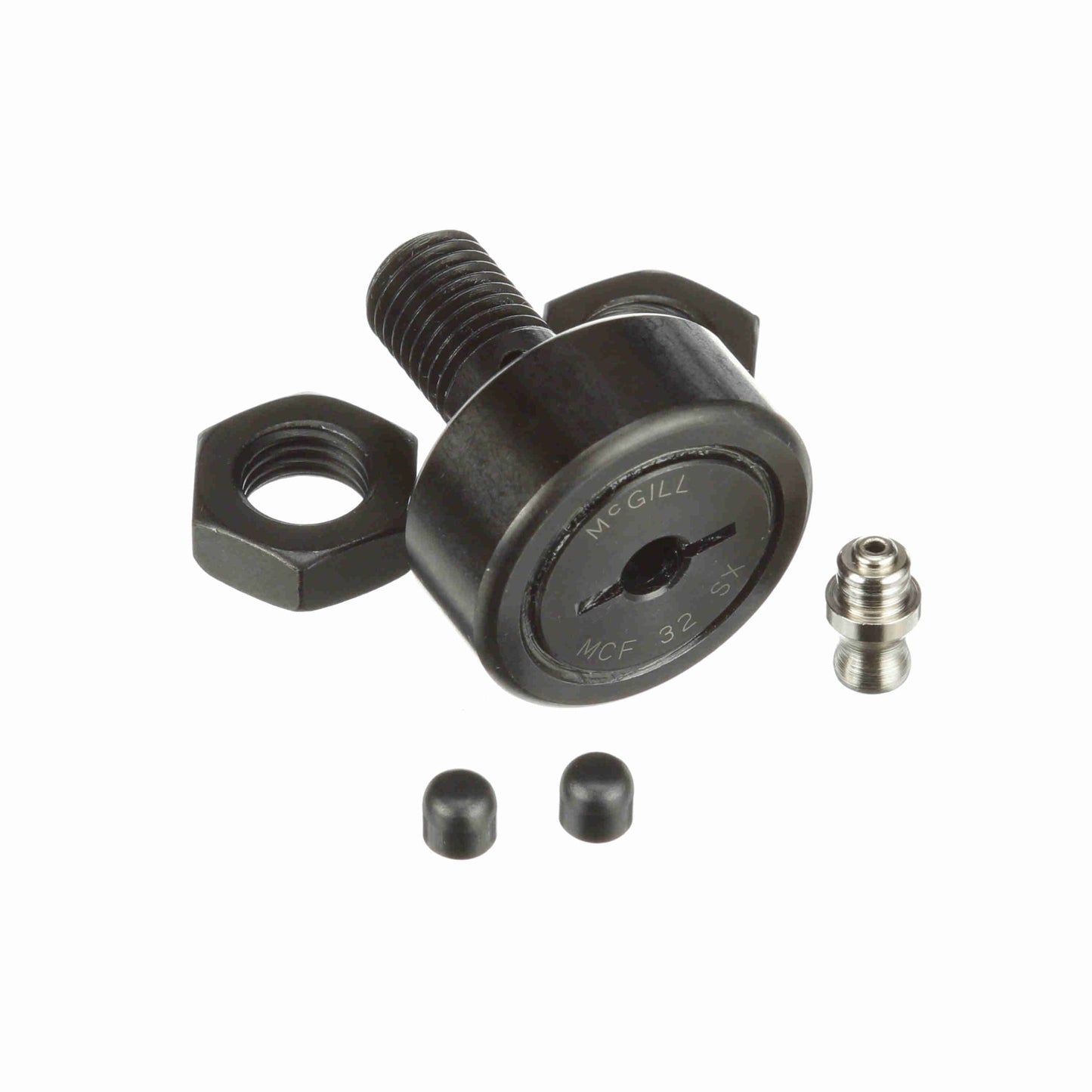

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Metric Cam Follower - Stud Mount Roller - Screwdriver Slot - Sealed - MCF 32 SX
General Specifications
| UPC: | 726166019358 | Weight: | 0.28 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.2 Inches |
| Packaged Height: | 1.6 Inches | Country of Origin: | China |
Dimensions
| Threads: | M12x1.5 | Overall Length - mm: | 40 mm |
| Roller Width - mm: | 14 mm | Oil Hole Diameter - mm: | 3 mm |
| Minimum Thread Length: | 14 | Oil Hole Center - mm: | 6 mm |
| Roller Diameter - mm: | 32 mm | Stud Diameter - mm: | 12 mm |
| Lubrication Fitting Size - Metric: | 6 | Reamed Hole - mm: | 6 mm |
| Stud Length - mm: | 25 mm |
Technical Specifications
| Adjustment: | None | Hex/Slot: | Screwdriver Slot |
| Limiting Speed: | 6,400 | O.D. Configuration: | Cylindrical |
| Dynamic Track Roller Load Rating (N): | 11,080 N | Rolling Element: | Needle Roller - Full Complement |
| Sealing: | Sealed | Dynamic Radial Rating: | 2,491 |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Stud Type: | Standard Stud | Industry Standard: | DIN / JIS |
| Roller Shape: | Cylindrical | Static Load Rating: | 15,300 |
| Tolerance Class: | P0 Equivalent | Dynamic Load Rating - N: | 13,240 |
| Platform: | CAMROL® | Static Track Roller Load Rating: | 15,300 |
| Clamping Torque - Nm: | 22 |
