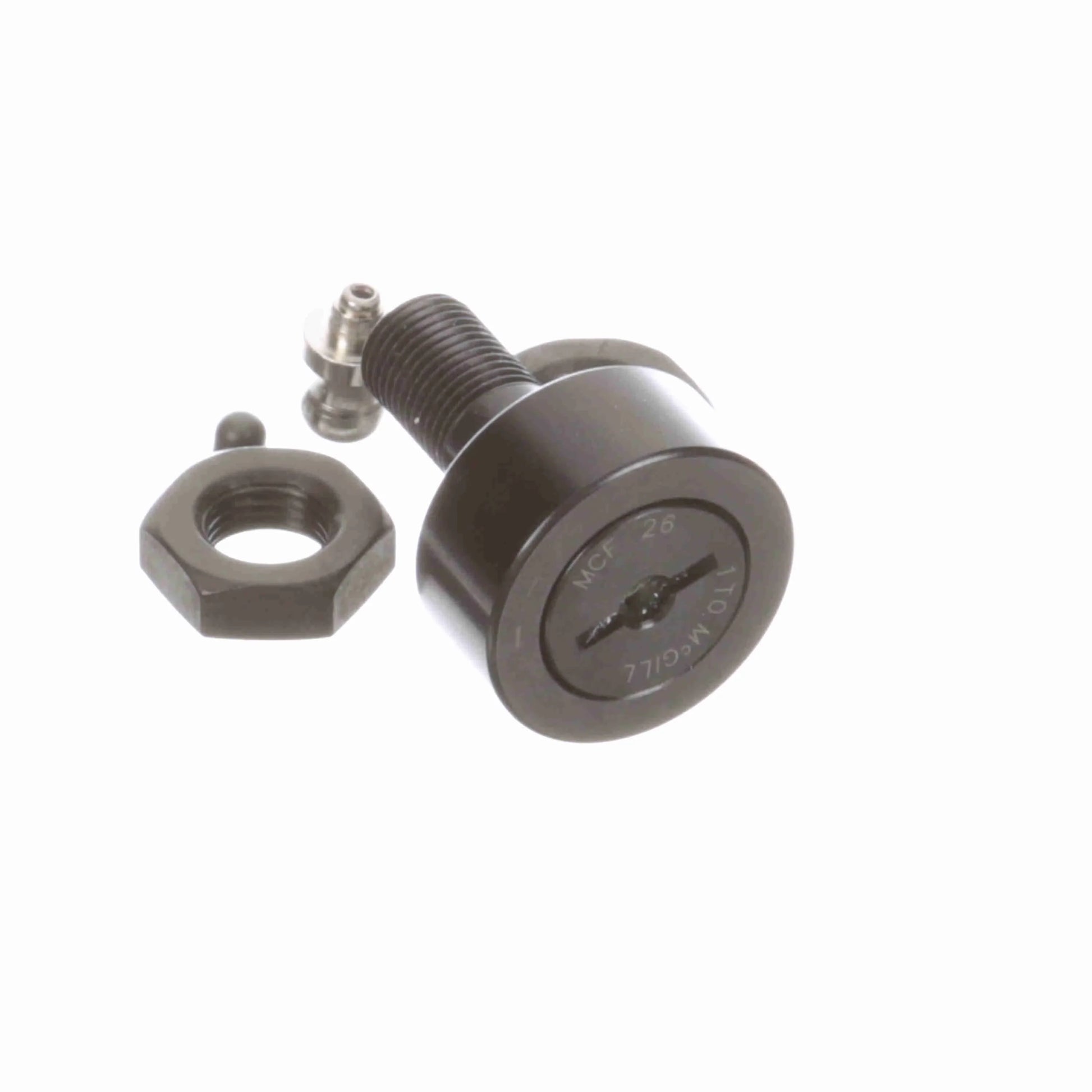

รายละเอียด ตลับลูกปืน McGill CAMROL® Crowned Metric Cam Follower - Stud Mount Roller - Screwdriver Slot - MCF 26
General Specifications
| UPC: | 726166017071 | Weight: | 0.19 LB |
| Packaged Length: | 1.4 Inches | Packaged Width: | 1.3 Inches |
| Packaged Height: | 1.6 Inches | Country of Origin: | China |
Dimensions
| Threads: | M10x1 | Reamed Hole - mm: | 4 mm |
| Lubrication Fitting Size - Metric: | 4 | Overall Length - mm: | 36 mm |
| Roller Diameter - mm: | 26 mm | Stud Length - mm: | 23 mm |
| Stud Diameter - mm: | 10 mm | Roller Width - mm: | 12 mm |
| Minimum Thread Length: | 12 |
Technical Specifications
| O.D. Configuration: | Crowned | Sealing: | Unsealed |
| Limiting Speed: | 9,000 | Rolling Element: | Needle Roller - Full Complement |
| Hex/Slot: | Screwdriver Slot | Dynamic Radial Rating: | 1,765 |
| Dynamic Track Roller Load Rating (N): | 7,850 N | Adjustment: | None |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Static Load Rating: | 10,400 | Platform: | CAMROL® |
| Clamping Torque - Nm: | 15 | Tolerance Class: | P0 Equivalent |
| Industry Standard: | DIN | Roller Shape: | Crowned |
| Static Track Roller Load Rating: | 10,400 | Dynamic Load Rating - N: | 9,410 |
| Stud Type: | Standard Stud |
