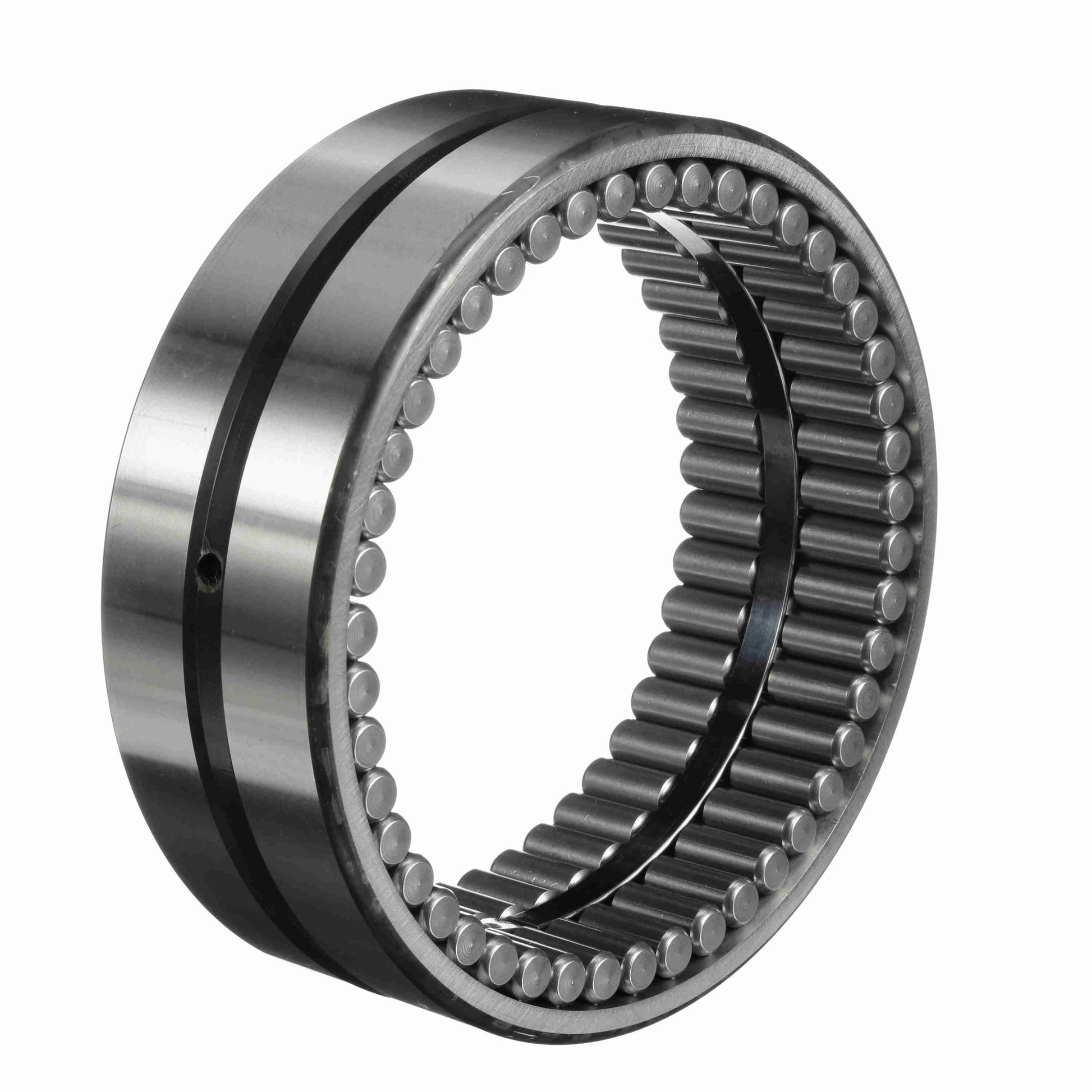

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (with inner) - GR 96 N
General Specifications
| UPC: | 726166063658 | Weight: | 9.59 LB |
| Packaged Length: | 8.06 Inches | Packaged Width: | 8.06 Inches |
| Packaged Height: | 3 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 2.5 | Bore Size - Inch: | 6 in |
| Housing & Shaft Fillet (in): | 0.12 in | Outside Diameter - Inch: | 7.5 in |
| Hole Diameter: | 0.25 |
Technical Specifications
| Series: | Narrow | Material: | 52100 Bearing Steel |
| Includes Inner Ring: | No | Cage Material: | No retainer |
| Seal Type: | Unsealed | Rolling Element: | Needle Roller |
| Radial Clearance: | Normal | Misalignment: | No |
| Bore Type: | Straight | Number of Rows: | 1 |
| Platform: | Guiderol Bearing | Sealed: | None |
| Duplexing: | No | Dynamic Load Rating: | 65,700 |
| Full Complement/Caged: | Full Complement | Static Load Rating (lb): | 223,000 lb |
| Speed (Max) Grease: | 500 | Speed (Max) Oil: | 1,000 |
| Lubrication Hole Type: | Lubrication Groove & Hole | Flanges: | No Flanges |
| Standard Met: | ABMA, ISO | Precision Rating: | RBEC-1 |
| Related Inner Ring: | MI 80 N | Operating Temperature Range: | -20 to 250 °F |
| Component Type: | Outer race only | Separable: | Nonseparable |
| Enclosure: | Open | Retainer: | No |
