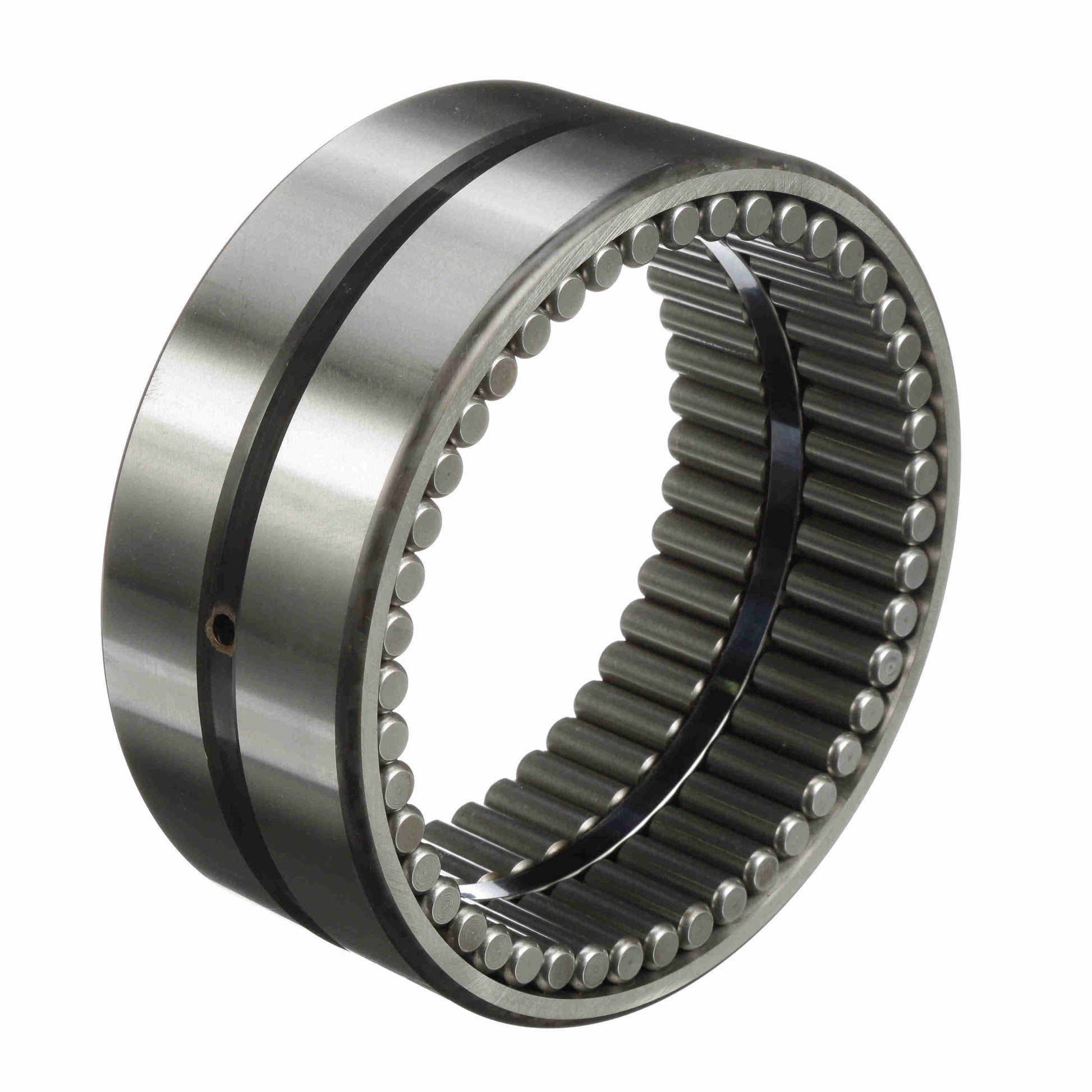

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - GR 96
General Specifications
| UPC: | 726166063627 | Weight: | 11.44 LB |
| Packaged Length: | 8.06 Inches | Packaged Width: | 8.06 Inches |
| Packaged Height: | 3 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 3 | Outside Diameter - Inch: | 7.5 in |
| Housing & Shaft Fillet (in): | 0.12 in | Bore Size - Inch: | 6 in |
| Hole Diameter: | 0.25 |
Technical Specifications
| Includes Inner Ring: | No | Material: | 52100 Bearing Steel |
| Series: | Standard | Cage Material: | No retainer |
| Radial Clearance: | Normal | Misalignment: | No |
| Rolling Element: | Needle Roller | Seal Type: | Unsealed |
| Bore Type: | Straight | Number of Rows: | 1 |
| Speed (Max) Grease: | 500 | Dynamic Load Rating: | 71,400 |
| Speed (Max) Oil: | 1,000 | Sealed: | None |
| Static Load Rating (lb): | 283,000 lb | Full Complement/Caged: | Full Complement |
| Platform: | Guiderol Bearing | Duplexing: | No |
| Lubrication Hole Type: | Lubrication Groove & Hole | Related Inner Ring: | MI 80 |
| Operating Temperature Range: | -20 to 250 °F | Standard Met: | ABMA, ISO |
| Flanges: | No Flanges | Precision Rating: | RBEC-1 |
| Separable: | Nonseparable | Component Type: | Outer race only |
| Enclosure: | Open | Retainer: | No |
