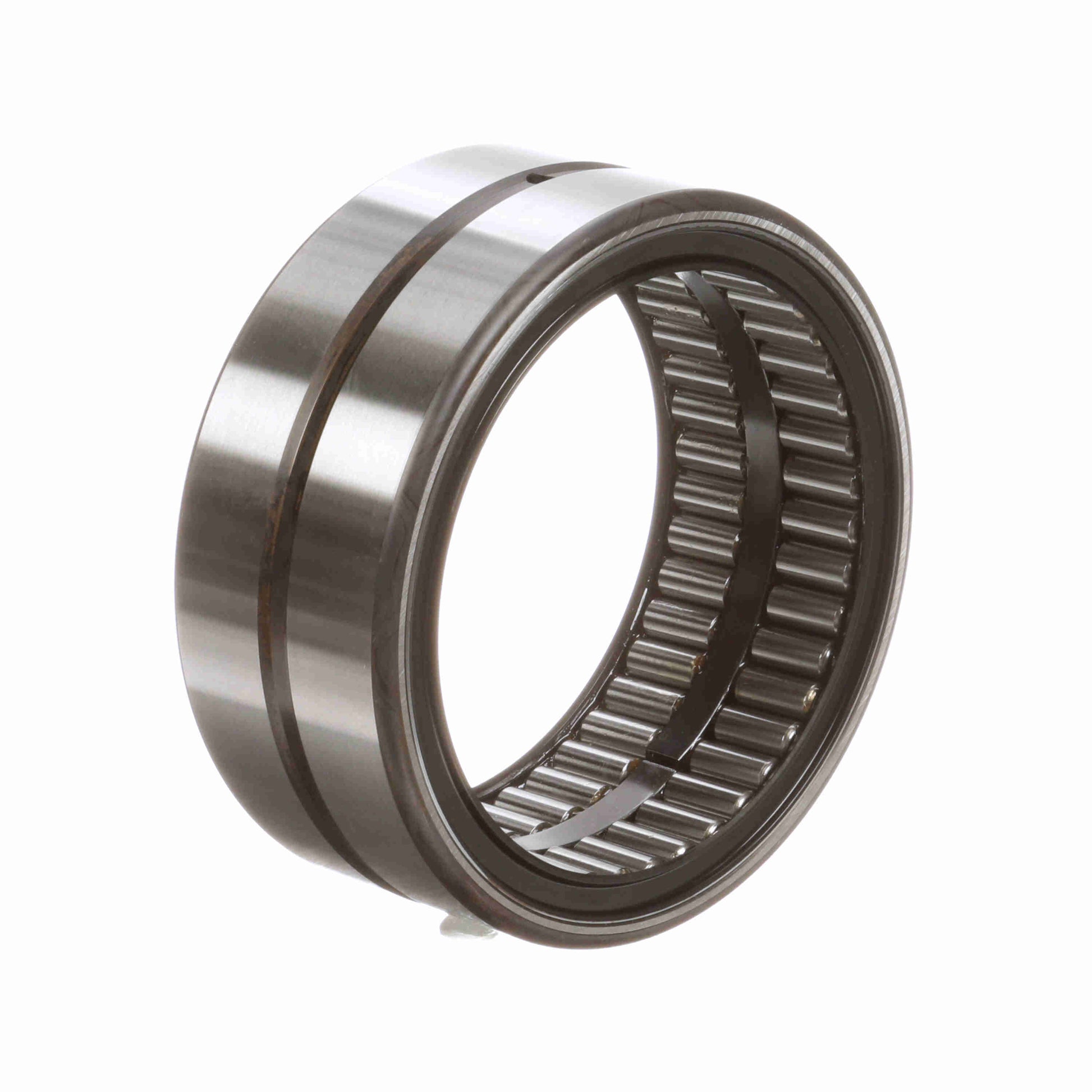

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 64 RSS
General Specifications
| UPC: | 726166063382 | Weight: | 3.10 LB |
| Packaged Length: | 5.68 Inches | Packaged Width: | 2.12 Inches |
| Packaged Height: | 5.75 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 2 | Housing & Shaft Fillet (in): | 0.1 in |
| Bore Size - Inch: | 4 in | Outside Diameter - Inch: | 5 in |
| Hole Diameter: | 0.188 |
Technical Specifications
| Series: | Standard | Material: | 52100 Bearing Steel |
| Includes Inner Ring: | No | Cage Material: | No retainer |
| Misalignment: | No | Rolling Element: | Needle Roller |
| Radial Clearance: | Normal | Seal Type: | Rubber Lip |
| Number of Rows: | 1 | Bore Type: | Straight |
| Static Load Rating (lb): | 98,800 lb | Speed (Max) Grease: | 475 |
| Dynamic Load Rating: | 26,750 | Platform: | Guiderol Bearing |
| Duplexing: | No | Full Complement/Caged: | Full Complement |
| Speed (Max) Oil: | 950 | Sealed: | Sealed - Both Sides |
| Related Inner Ring: | MI 54 | Operating Temperature Range: | -20 to 250 °F |
| Flanges: | No flange | Lubrication Hole Type: | Lubrication groove and hole |
| Precision Rating: | RBEC-1 | Enclosure: | Sealed Both Sides |
| Separable: | Nonseparable | Component Type: | Outer race only |
| Retainer: | No |
