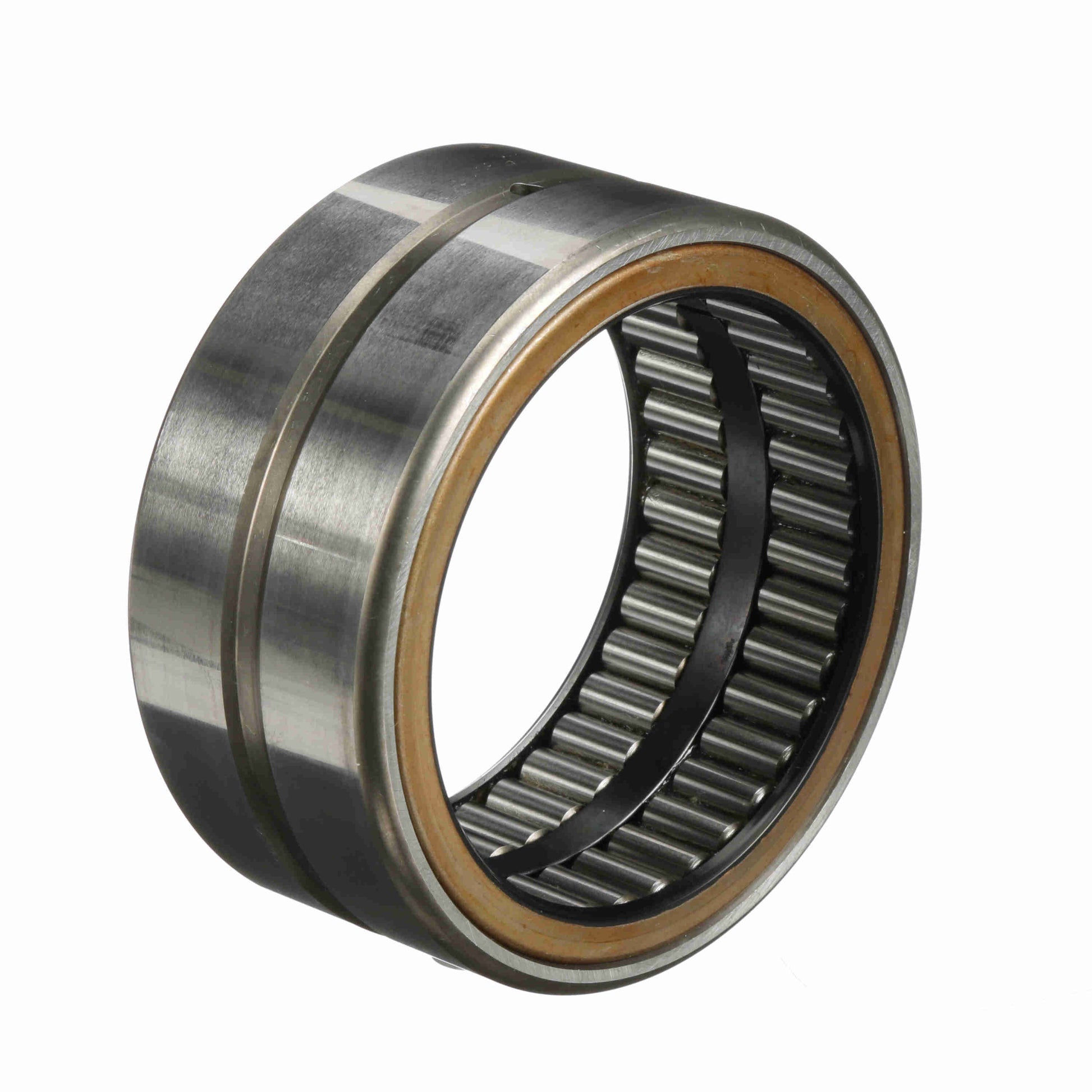

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 56 SS
General Specifications
| UPC: | 726166063177 | Weight: | 2.78 LB |
| Packaged Length: | 4.87 Inches | Packaged Width: | 2.12 Inches |
| Packaged Height: | 4.87 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 2 | Housing & Shaft Fillet (in): | 0.08 in |
| Outside Diameter - Inch: | 4.5 in | Hole Diameter: | 0.188 |
| Bore Size - Inch: | 3.5000 in |
Technical Specifications
| Series: | Standard | Material: | 52100 Bearing Steel |
| Includes Inner Ring: | No | Cage Material: | No retainer |
| Radial Clearance: | Normal | Misalignment: | No |
| Bore Type: | Straight | Number of Rows: | 1 |
| Rolling Element: | Needle Roller | Seal Type: | Rubber Lip |
| Full Complement/Caged: | Full Complement | Platform: | Guiderol Bearing |
| Duplexing: | No | Static Load Rating (lb): | 86,500 lb |
| Sealed: | Sealed - Both Sides | Speed (Max) Grease: | 1,090 |
| Dynamic Load Rating: | 25,100 | Lubrication Hole Type: | Lubrication Groove & Hole |
| Related Inner Ring: | MI 46 | Standard Met: | ABMA, ISO |
| Flanges: | No Flanges | Operating Temperature Range: | -20 to 250 °F |
| Precision Rating: | RBEC-1 | Component Type: | Outer race only |
| Separable: | Nonseparable | Enclosure: | Sealed Both Sides |
| Retainer: | No |
