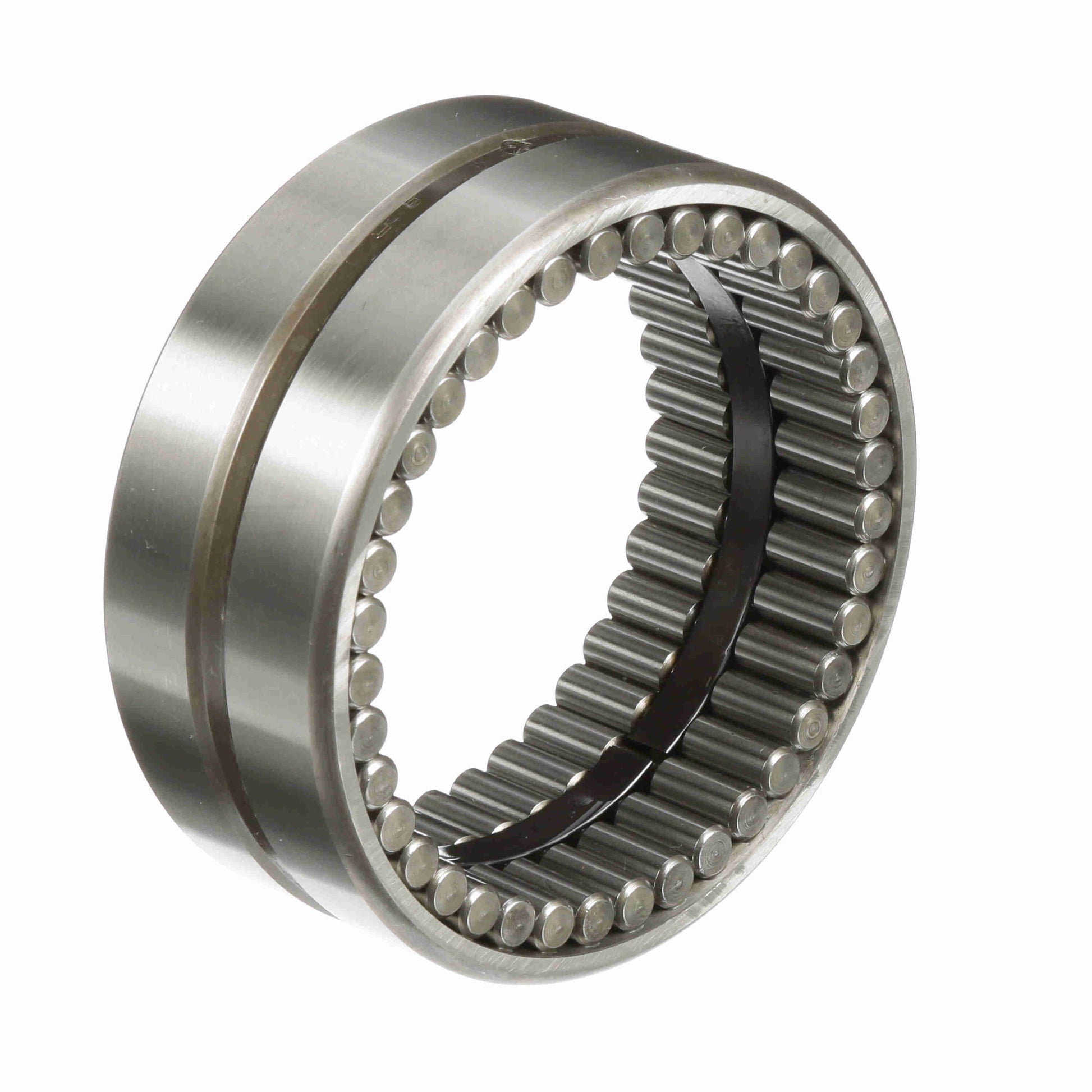

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - GR 56 N
General Specifications
| UPC: | 726166063221 | Weight: | 2.59 LB |
| Packaged Length: | 5.2 Inches | Packaged Width: | 5 Inches |
| Packaged Height: | 2.1 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.75 | Bore Size - Inch: | 3.5000 in |
| Housing & Shaft Fillet (in): | 0.08 in | Hole Diameter: | 0.188 |
| Outside Diameter - Inch: | 4.5 in |
Technical Specifications
| Series: | Narrow | Includes Inner Ring: | No |
| Material: | 52100 Bearing Steel | Cage Material: | No retainer |
| Seal Type: | Unsealed | Bore Type: | Straight |
| Radial Clearance: | Normal | Number of Rows: | 1 |
| Misalignment: | No | Rolling Element: | Needle Roller |
| Sealed: | None | Full Complement/Caged: | Full Complement |
| Static Load Rating (lb): | 86,500 lb | Speed (Max) Oil: | 1,700 |
| Duplexing: | No | Speed (Max) Grease: | 850 |
| Platform: | Guiderol Bearing | Dynamic Load Rating: | 25,100 |
| Related Inner Ring: | MI 48 N | Standard Met: | ABMA, ISO |
| Precision Rating: | RBEC-1 | Lubrication Hole Type: | Lubrication Groove & Hole |
| Flanges: | No Flanges | Operating Temperature Range: | -20 to 250 °F |
| Component Type: | Outer race only | Separable: | Nonseparable |
| Enclosure: | Open | Retainer: | No |
