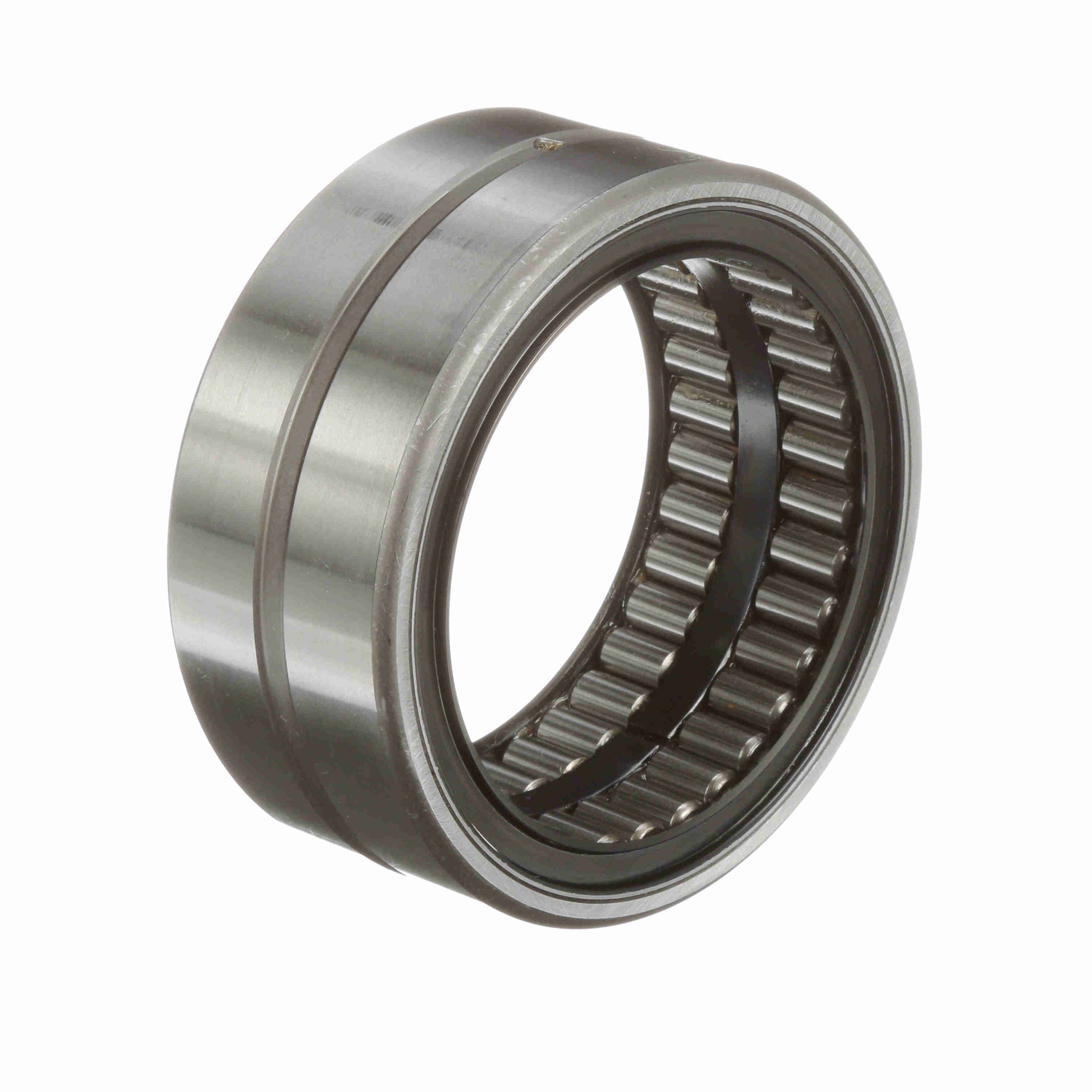

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 52 RSS
General Specifications
| UPC: | 726166063122 | Weight: | 2.37 LB |
| Packaged Length: | 4.87 Inches | Packaged Width: | 2.12 Inches |
| Packaged Height: | 4.87 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.75 | Housing & Shaft Fillet (in): | 0.08 in |
| Outside Diameter - Inch: | 4.25 in | Hole Diameter: | 0.188 |
| Bore Size - Inch: | 3.2500 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Includes Inner Ring: | No |
| Series: | Standard | Cage Material: | No retainer |
| Number of Rows: | 1 | Bore Type: | Straight |
| Seal Type: | Rubber Lip | Rolling Element: | Needle Roller |
| Radial Clearance: | Normal | Misalignment: | No |
| Duplexing: | No | Platform: | Guiderol Bearing |
| Speed (Max) Oil: | 1,175 | Full Complement/Caged: | Full Complement |
| Dynamic Load Rating: | 20,050 | Speed (Max) Grease: | 585 |
| Static Load Rating (lb): | 63,800 lb | Sealed: | Sealed - Both Sides |
| Flanges: | No flange | Precision Rating: | RBEC-1 |
| Lubrication Hole Type: | Lubrication groove and hole | Related Inner Ring: | MI 42 |
| Operating Temperature Range: | -20 to 250 °F | Separable: | Nonseparable |
| Component Type: | Outer race only | Enclosure: | Sealed Both Sides |
| Retainer: | No |
