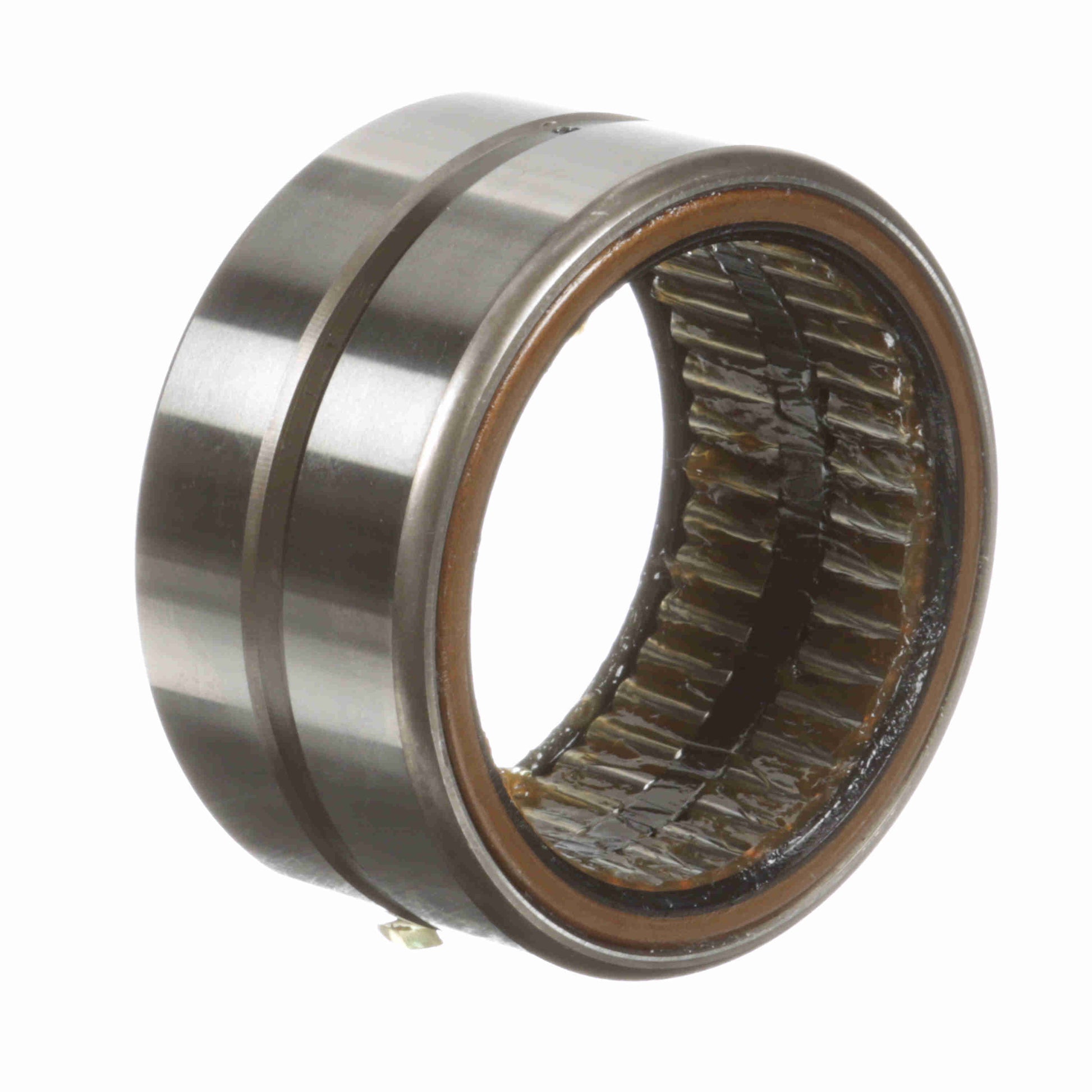

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 44 SRS
General Specifications
| UPC: | 726166062811 | Weight: | 1.42 LB |
| Packaged Length: | 3.62 Inches | Packaged Width: | 2.12 Inches |
| Packaged Height: | 3.62 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.75 | Housing & Shaft Fillet (in): | 0.08 in |
| Bore Size - Inch: | 2.7500 in | Hole Diameter: | 0.125 |
| Outside Diameter - Inch: | 3.5 in |
Technical Specifications
| Includes Inner Ring: | No | Material: | 52100 Bearing Steel |
| Series: | Standard | Cage Material: | No retainer |
| Number of Rows: | 1 | Misalignment: | No |
| Rolling Element: | Needle Roller | Radial Clearance: | Normal |
| Bore Type: | Straight | Seal Type: | Rubber Lip |
| Duplexing: | No | Dynamic Load Rating: | 16,800 |
| Speed (Max) Grease: | 1,390 | Static Load Rating (lb): | 59,900 lb |
| Full Complement/Caged: | Full Complement | Platform: | Guiderol Bearing |
| Sealed: | Sealed - Both Sides | Precision Rating: | RBEC-1 |
| Related Inner Ring: | MI 35 | Standard Met: | ABMA, ISO |
| Flanges: | No Flanges | Operating Temperature Range: | -20 to 250 °F |
| Lubrication Hole Type: | Lubrication Groove & Hole | Separable: | Nonseparable |
| Enclosure: | Sealed Both Sides | Component Type: | Outer race only |
| Retainer: | No |
