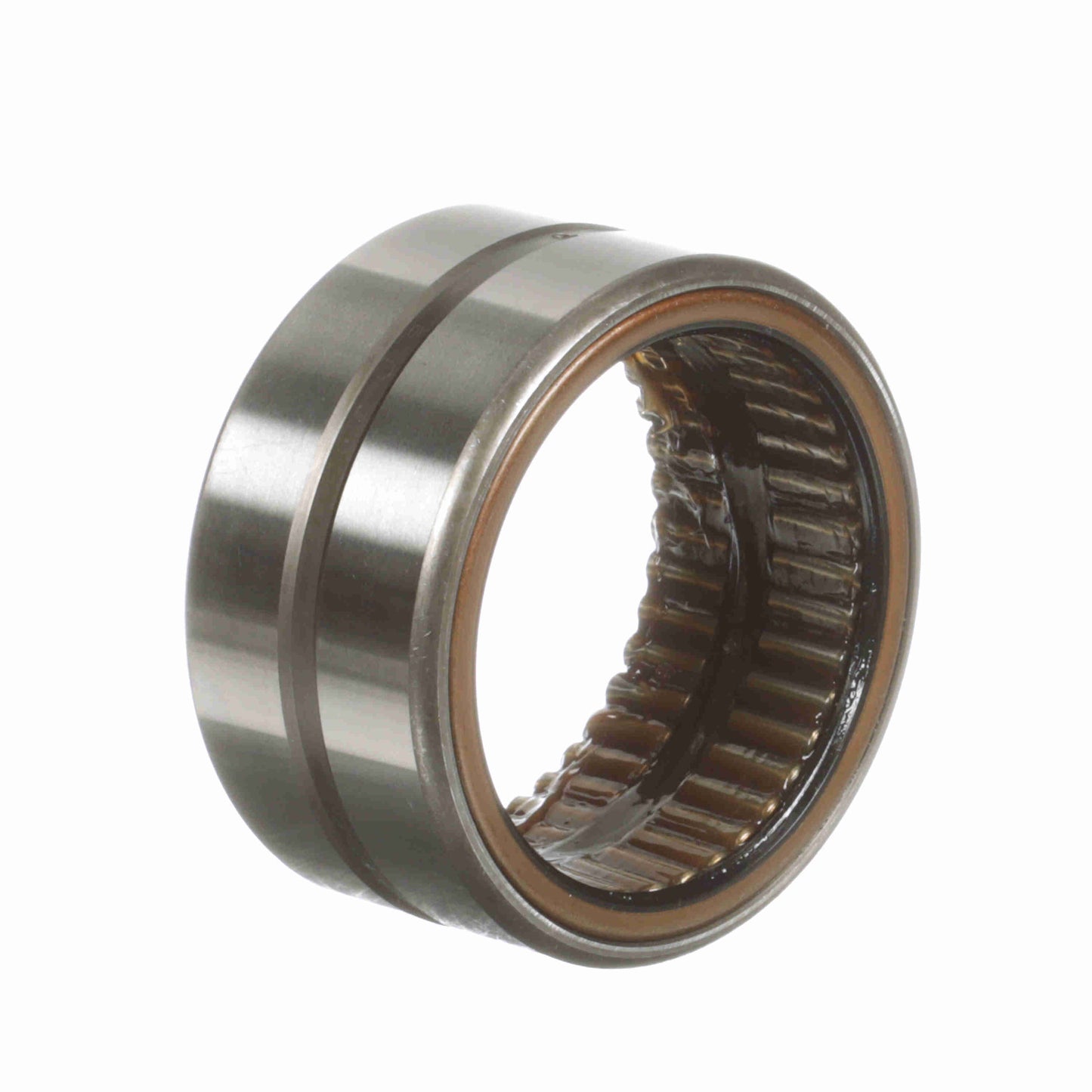

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 44 S
General Specifications
| UPC: | 726166062804 | Weight: | 1.59 LB |
| Packaged Length: | 3.62 Inches | Packaged Width: | 2.12 Inches |
| Packaged Height: | 3.62 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.75 | Housing & Shaft Fillet (in): | 0.08 in |
| Hole Diameter: | 0.125 | Outside Diameter - Inch: | 3.5 in |
| Bore Size - Inch: | 2.7500 in |
Technical Specifications
| Series: | Standard | Includes Inner Ring: | No |
| Material: | 52100 Bearing Steel | Cage Material: | No retainer |
| Seal Type: | Rubber Lip | Radial Clearance: | Normal |
| Number of Rows: | 1 | Bore Type: | Straight |
| Misalignment: | No | Rolling Element: | Needle Roller |
| Sealed: | Sealed - One Side | Duplexing: | No |
| Dynamic Load Rating: | 16,800 | Speed (Max) Grease: | 1,390 |
| Static Load Rating (lb): | 59,900 lb | Platform: | Guiderol Bearing |
| Full Complement/Caged: | Full Complement | Related Inner Ring: | MI 35 |
| Standard Met: | ABMA, ISO | Lubrication Hole Type: | Lubrication Groove & Hole |
| Precision Rating: | RBEC-1 | Operating Temperature Range: | -20 to 250 °F |
| Flanges: | No Flanges | Enclosure: | Sealed One Side |
| Component Type: | Outer race only | Separable: | Nonseparable |
| Retainer: | No |
