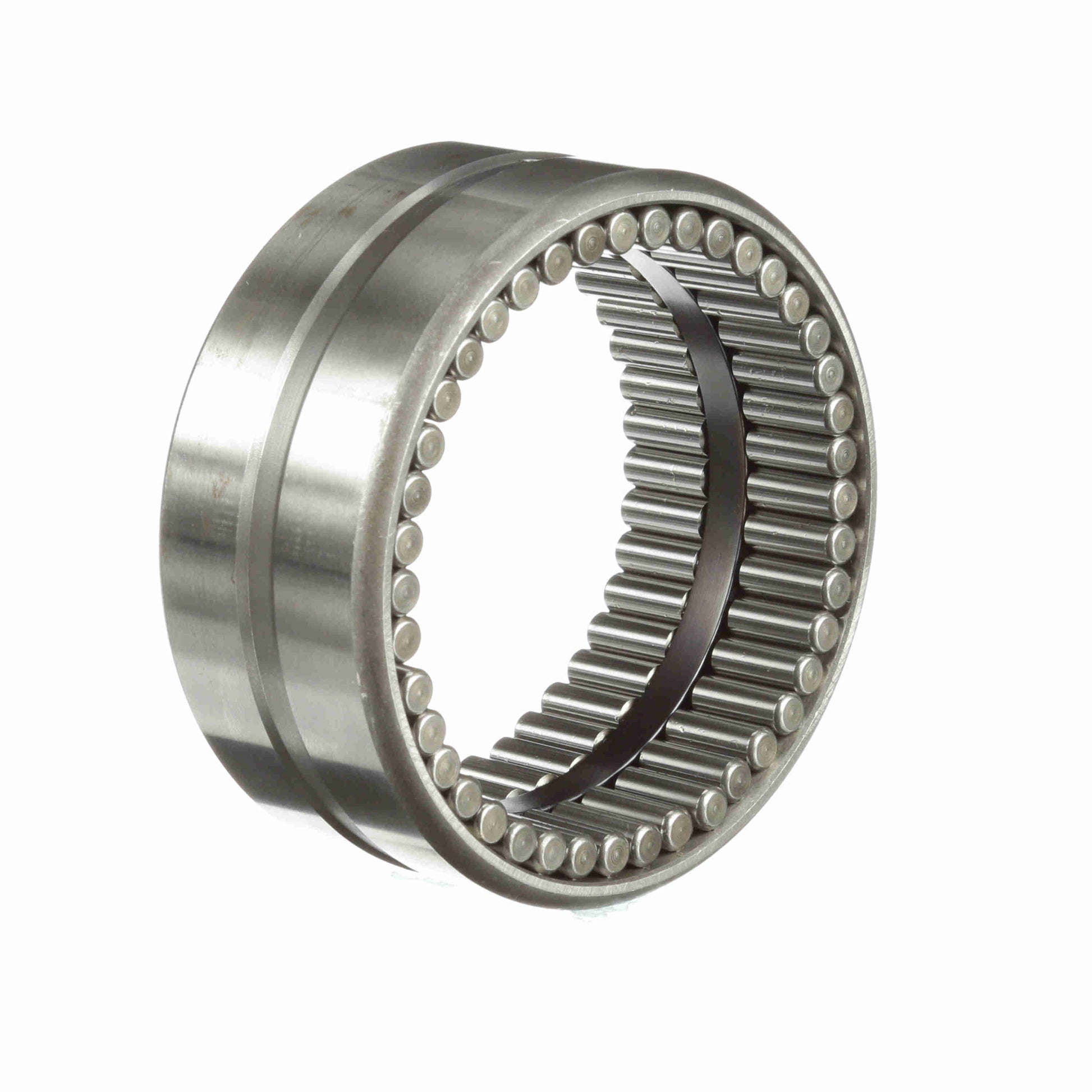

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - GR 44 N
General Specifications
| UPC: | 726166062880 | Weight: | 1.29 LB |
| Packaged Length: | 3.8 Inches | Packaged Width: | 3.7 Inches |
| Packaged Height: | 2.2 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.5 | Housing & Shaft Fillet (in): | 0.08 in |
| Bore Size - Inch: | 2.7500 in | Hole Diameter: | 0.125 |
| Outside Diameter - Inch: | 3.5 in |
Technical Specifications
| Series: | Narrow | Material: | 52100 Bearing Steel |
| Includes Inner Ring: | No | Cage Material: | No retainer |
| Rolling Element: | Needle Roller | Radial Clearance: | Normal |
| Misalignment: | No | Number of Rows: | 1 |
| Bore Type: | Straight | Seal Type: | Unsealed |
| Dynamic Load Rating: | 16,800 | Sealed: | None |
| Full Complement/Caged: | Full Complement | Speed (Max) Grease: | 1,100 |
| Static Load Rating (lb): | 59,900 lb | Speed (Max) Oil: | 2,200 |
| Duplexing: | No | Platform: | Guiderol Bearing |
| Lubrication Hole Type: | Lubrication groove and hole | Flanges: | No flange |
| Operating Temperature Range: | -20 to 250 °F | Precision Rating: | RBEC-1 |
| Related Inner Ring: | MI 36 N | Separable: | Nonseparable |
| Enclosure: | Open | Component Type: | Outer race only |
| Retainer: | No |
