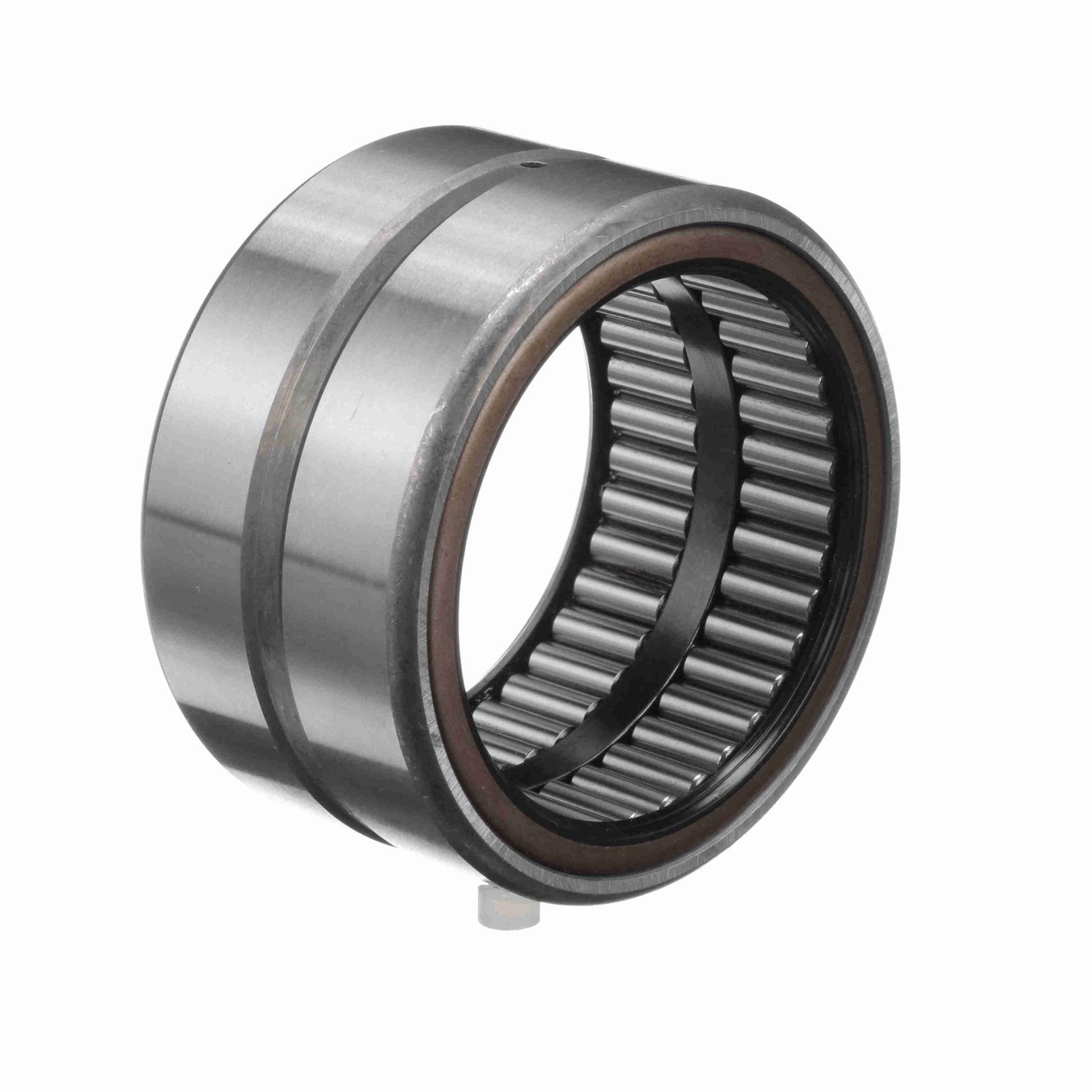

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (with inner) - Sealed - GR 40 SS
General Specifications
| UPC: | 726166062712 | Weight: | 1.37 LB |
| Packaged Length: | 3.31 Inches | Packaged Width: | 1.81 Inches |
| Packaged Height: | 3.31 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.75 | Hole Diameter: | 0.125 |
| Outside Diameter - Inch: | 3.25 in | Housing & Shaft Fillet (in): | 0.08 in |
| Bore Size - Inch: | 2.5000 in |
Technical Specifications
| Includes Inner Ring: | No | Material: | 52100 Bearing Steel |
| Series: | Standard | Cage Material: | No retainer |
| Radial Clearance: | Normal | Seal Type: | Rubber Lip |
| Bore Type: | Straight | Misalignment: | No |
| Number of Rows: | 1 | Rolling Element: | Needle Roller |
| Static Load Rating (lb): | 54,500 lb | Speed (Max) Grease: | 1,530 |
| Dynamic Load Rating: | 16,200 | Sealed: | Sealed - Both Sides |
| Duplexing: | No | Platform: | Guiderol Bearing |
| Full Complement/Caged: | Full Complement | Operating Temperature Range: | -20 to 250 °F |
| Lubrication Hole Type: | Lubrication Groove & Hole | Flanges: | No Flanges |
| Standard Met: | ABMA, ISO | Related Inner Ring: | MI 31 |
| Precision Rating: | RBEC-1 | Enclosure: | Sealed Both Sides |
| Component Type: | Outer race only | Separable: | Nonseparable |
| Retainer: | No |
