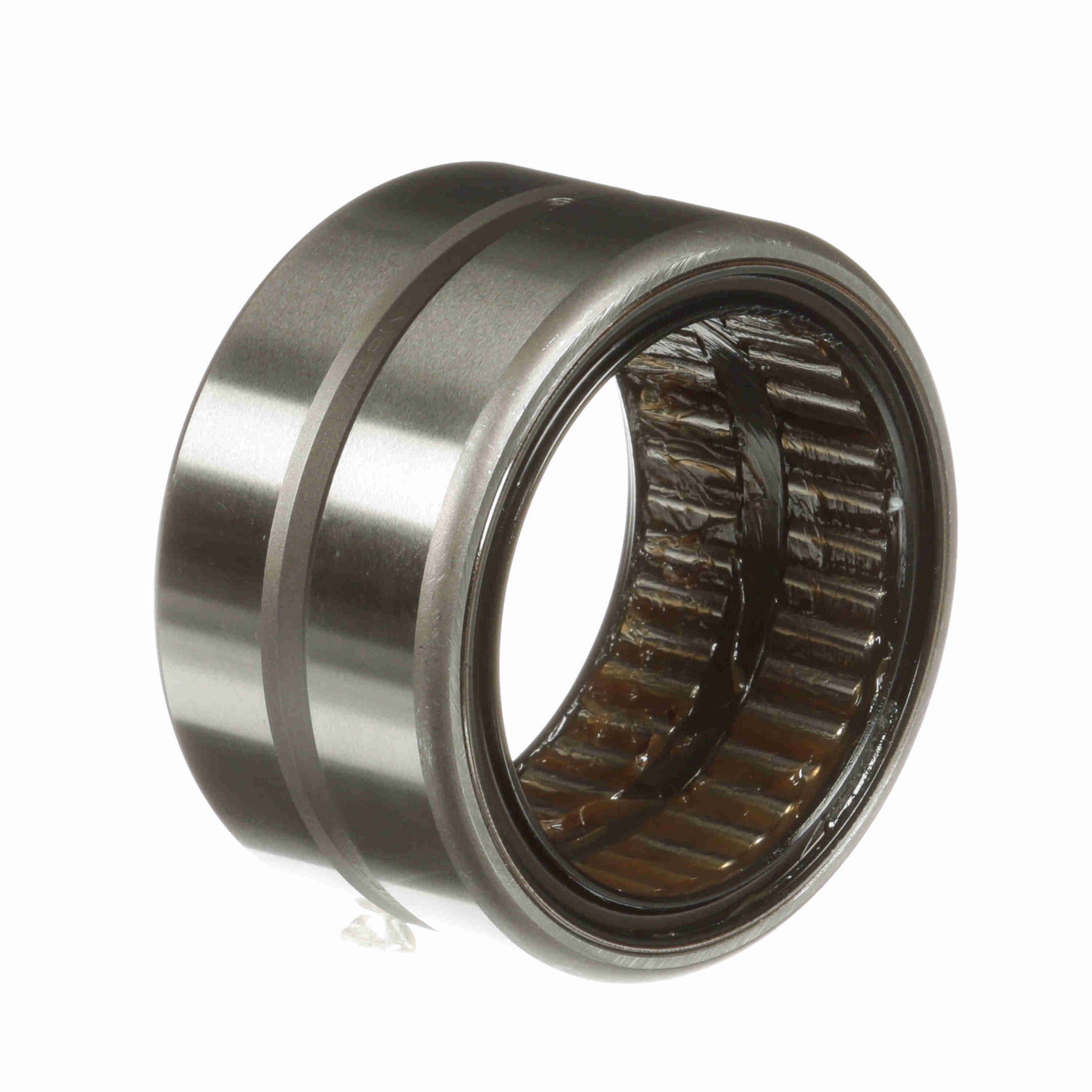

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 40 SRS
General Specifications
| UPC: | 726166062705 | Weight: | 1.31 LB |
| Packaged Length: | 3.31 Inches | Packaged Width: | 1.81 Inches |
| Packaged Height: | 3.31 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.75 | Outside Diameter - Inch: | 3.25 in |
| Hole Diameter: | 0.125 | Housing & Shaft Fillet (in): | 0.08 in |
| Bore Size - Inch: | 2.5000 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Includes Inner Ring: | No |
| Series: | Standard | Cage Material: | No retainer |
| Radial Clearance: | Normal | Bore Type: | Straight |
| Misalignment: | No | Seal Type: | Rubber Lip |
| Number of Rows: | 1 | Rolling Element: | Needle Roller |
| Speed (Max) Grease: | 1,530 | Static Load Rating (lb): | 54,500 lb |
| Sealed: | Sealed - Both Sides | Full Complement/Caged: | Full Complement |
| Dynamic Load Rating: | 16,200 | Duplexing: | No |
| Platform: | Guiderol Bearing | Related Inner Ring: | MI 31 |
| Precision Rating: | RBEC-1 | Flanges: | No Flanges |
| Standard Met: | ABMA, ISO | Operating Temperature Range: | -20 to 250 °F |
| Lubrication Hole Type: | Lubrication Groove & Hole | Enclosure: | Sealed Both Sides |
| Separable: | Nonseparable | Component Type: | Outer race only |
| Retainer: | No |
