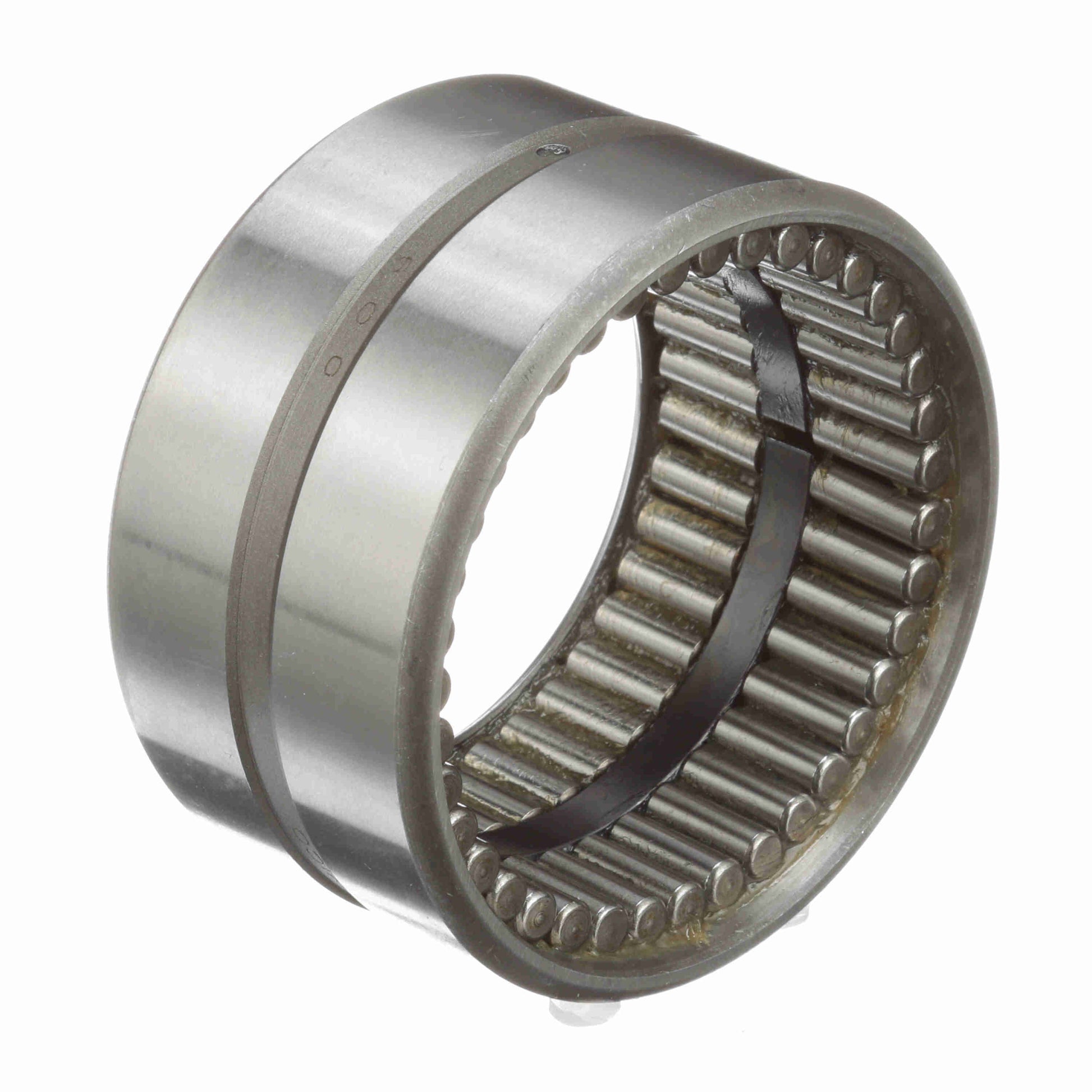

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 40 S
General Specifications
| UPC: | 726166062699 | Weight: | 1.34 LB |
| Packaged Length: | 3.5 Inches | Packaged Width: | 3.4 Inches |
| Packaged Height: | 1.9 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.75 | Hole Diameter: | 0.125 |
| Outside Diameter - Inch: | 3.25 in | Housing & Shaft Fillet (in): | 0.08 in |
| Bore Size - Inch: | 2.5000 in |
Technical Specifications
| Series: | Standard | Material: | 52100 Bearing Steel |
| Includes Inner Ring: | No | Cage Material: | No retainer |
| Misalignment: | No | Bore Type: | Straight |
| Seal Type: | Rubber Lip | Rolling Element: | Needle Roller |
| Number of Rows: | 1 | Radial Clearance: | Normal |
| Dynamic Load Rating: | 16,200 | Duplexing: | No |
| Static Load Rating (lb): | 54,500 lb | Speed (Max) Grease: | 1,530 |
| Sealed: | Sealed - One Side | Platform: | Guiderol Bearing |
| Full Complement/Caged: | Full Complement | Operating Temperature Range: | -20 to 250 °F |
| Related Inner Ring: | MI 31 | Flanges: | No Flanges |
| Precision Rating: | RBEC-1 | Lubrication Hole Type: | Lubrication Groove & Hole |
| Standard Met: | ABMA, ISO | Enclosure: | Sealed One Side |
| Separable: | Nonseparable | Component Type: | Outer race only |
| Retainer: | No |
