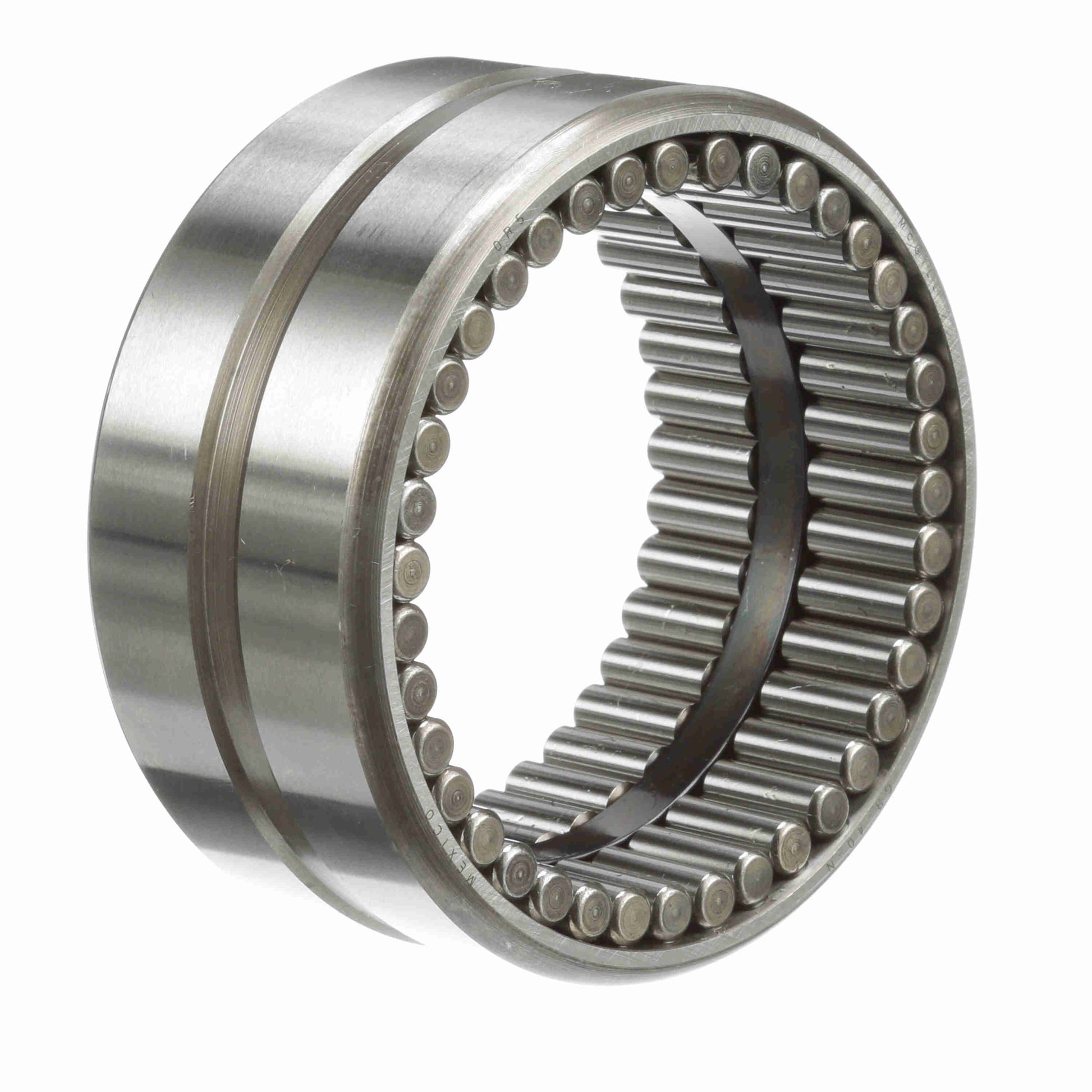

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - GR 40 N
General Specifications
| UPC: | 726166062750 | Weight: | 1.60 LB |
| Packaged Length: | 3.5 Inches | Packaged Width: | 3.3 Inches |
| Packaged Height: | 1.9 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.5 | Bore Size - Inch: | 2.5000 in |
| Hole Diameter: | 0.125 | Outside Diameter - Inch: | 3.25 in |
| Housing & Shaft Fillet (in): | 0.08 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Series: | Narrow |
| Includes Inner Ring: | No | Cage Material: | No retainer |
| Seal Type: | Unsealed | Number of Rows: | 1 |
| Rolling Element: | Needle Roller | Misalignment: | No |
| Bore Type: | Straight | Radial Clearance: | Normal |
| Speed (Max) Grease: | 1,200 | Full Complement/Caged: | Full Complement |
| Speed (Max) Oil: | 2,400 | Platform: | Guiderol Bearing |
| Duplexing: | No | Static Load Rating (lb): | 54,500 lb |
| Sealed: | None | Dynamic Load Rating: | 16,200 |
| Lubrication Hole Type: | Lubrication groove and hole | Operating Temperature Range: | -20 to 250 °F |
| Related Inner Ring: | MI 32 N | Precision Rating: | RBEC-1 |
| Flanges: | No flange | Component Type: | Outer race only |
| Enclosure: | Open | Separable: | Nonseparable |
| Retainer: | No |
