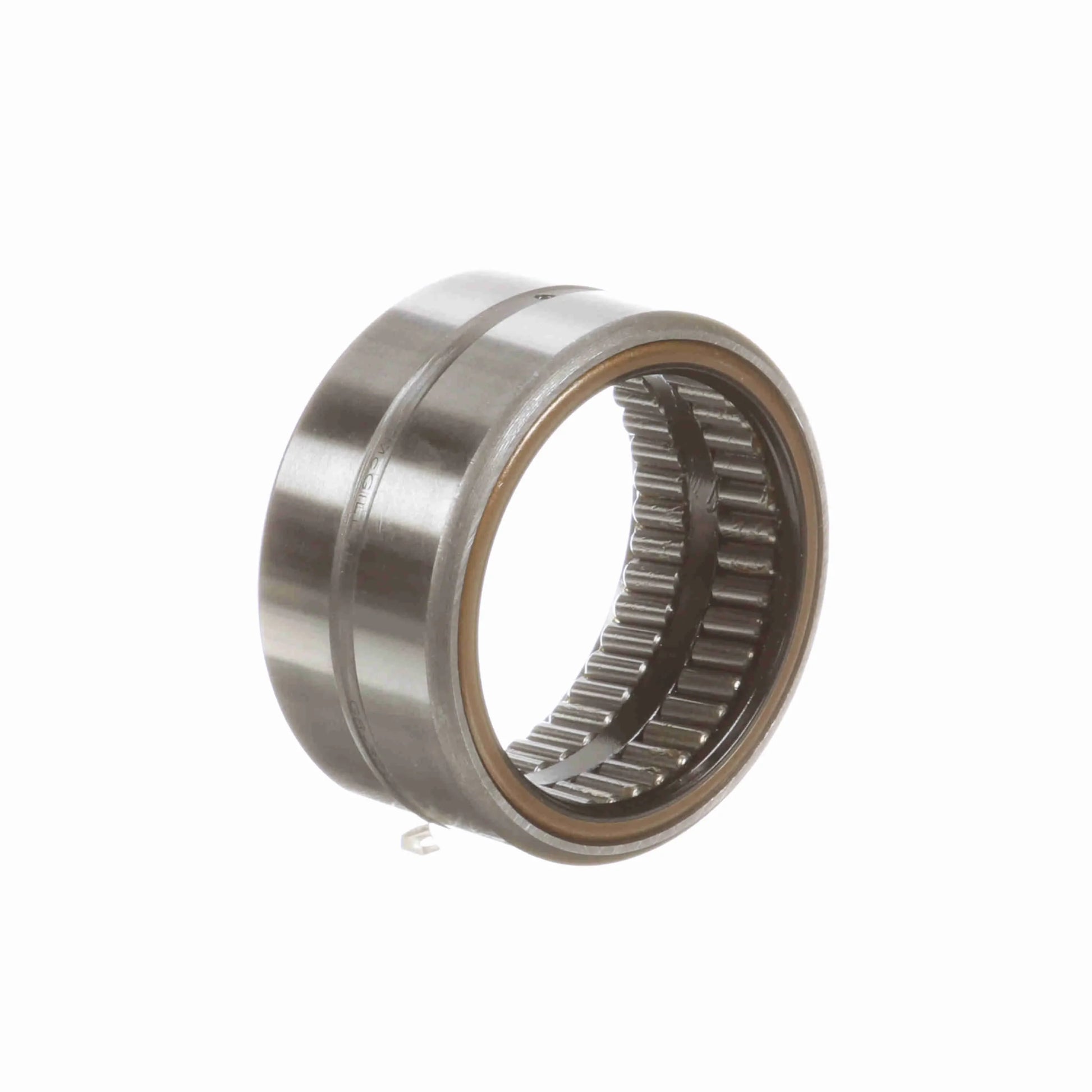

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 32 S
General Specifications
| UPC: | 726166062422 | Weight: | 0.53 LB |
| Packaged Length: | 2.62 Inches | Packaged Width: | 1.31 Inches |
| Packaged Height: | 2.62 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Bore Size - Inch: | 2 in |
| Hole Diameter: | 0.094 | Housing & Shaft Fillet (in): | 0.06 in |
| Outside Diameter - Inch: | 2.5625 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Series: | Standard |
| Includes Inner Ring: | No | Cage Material: | No retainer |
| Seal Type: | Rubber Lip | Bore Type: | Straight |
| Misalignment: | No | Radial Clearance: | Normal |
| Number of Rows: | 1 | Rolling Element: | Needle Roller |
| Platform: | Guiderol Bearing | Sealed: | Sealed - One Side |
| Full Complement/Caged: | Full Complement | Static Load Rating (lb): | 26,700 lb |
| Speed (Max) Grease: | 1,900 | Dynamic Load Rating: | 8,000 |
| Duplexing: | No | Standard Met: | ABMA, ISO |
| Lubrication Hole Type: | Lubrication Groove & Hole | Operating Temperature Range: | -20 to 250 °F |
| Flanges: | No Flanges | Precision Rating: | RBEC-1 |
| Related Inner Ring: | MI 25 | Component Type: | Outer race only |
| Enclosure: | Sealed One Side | Separable: | Nonseparable |
| Retainer: | No |
