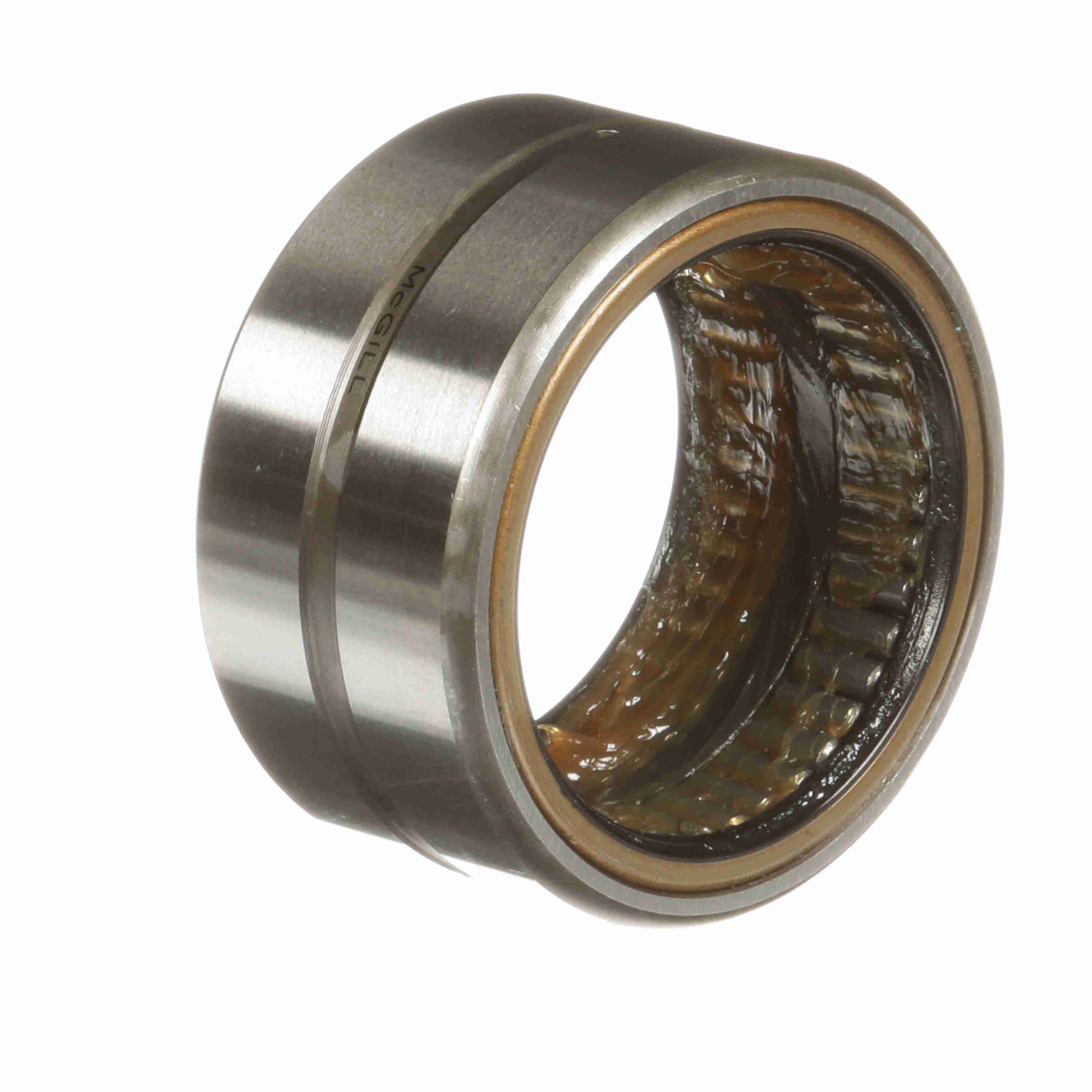

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 30 SRS
General Specifications
| UPC: | 726166062354 | Weight: | 0.55 LB |
| Packaged Length: | 2.7 Inches | Packaged Width: | 2.7 Inches |
| Packaged Height: | 1.4 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Outside Diameter - Inch: | 2.4375 in |
| Hole Diameter: | 0.094 | Housing & Shaft Fillet (in): | 0.06 in |
| Bore Size - Inch: | 1.8750 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Includes Inner Ring: | No |
| Series: | Standard | Cage Material: | No retainer |
| Number of Rows: | 1 | Bore Type: | Straight |
| Rolling Element: | Needle Roller | Misalignment: | No |
| Radial Clearance: | Normal | Seal Type: | Rubber Lip |
| Speed (Max) Grease: | 2,000 | Dynamic Load Rating: | 8,150 |
| Full Complement/Caged: | Full Complement | Static Load Rating (lb): | 25,200 lb |
| Duplexing: | No | Platform: | Guiderol Bearing |
| Sealed: | Sealed - Both Sides | Operating Temperature Range: | -20 to 250 °F |
| Lubrication Hole Type: | Lubrication Groove & Hole | Flanges: | No Flanges |
| Standard Met: | ABMA, ISO | Related Inner Ring: | MI 25 4S |
| Precision Rating: | RBEC-1 | Separable: | Nonseparable |
| Enclosure: | Sealed Both Sides | Component Type: | Outer race only |
| Retainer: | No |
