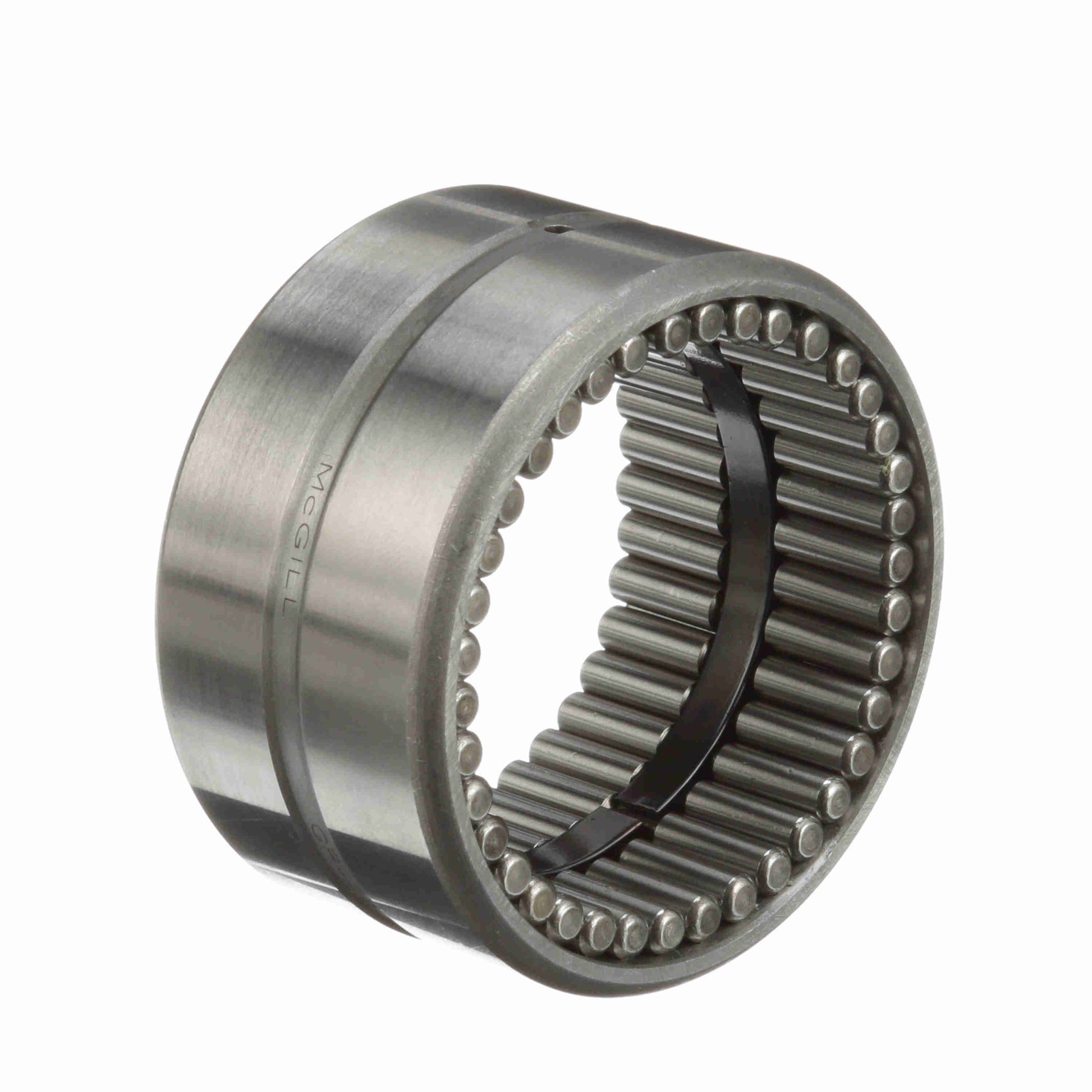

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - GR 28
General Specifications
| UPC: | 726166062194 | Weight: | 0.53 LB |
| Packaged Length: | 2.6 Inches | Packaged Width: | 2.4 Inches |
| Packaged Height: | 1.6 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Hole Diameter: | 0.094 |
| Housing & Shaft Fillet (in): | 0.06 in | Bore Size - Inch: | 1.7500 in |
| Outside Diameter - Inch: | 2.3125 in |
Technical Specifications
| Series: | Standard | Material: | 52100 Bearing Steel |
| Includes Inner Ring: | No | Cage Material: | No retainer |
| Seal Type: | Unsealed | Misalignment: | No |
| Radial Clearance: | Normal | Bore Type: | Straight |
| Rolling Element: | Needle Roller | Number of Rows: | 1 |
| Speed (Max) Grease: | 1,700 | Dynamic Load Rating: | 9,850 |
| Platform: | Guiderol Bearing | Duplexing: | No |
| Full Complement/Caged: | Full Complement | Speed (Max) Oil: | 3,400 |
| Sealed: | None | Static Load Rating (lb): | 32,100 lb |
| Flanges: | No Flanges | Lubrication Hole Type: | Lubrication Groove & Hole |
| Related Inner Ring: | MI 23, MI 24 | Operating Temperature Range: | -20 to 250 °F |
| Precision Rating: | RBEC-1 | Standard Met: | ABMA, ISO |
| Enclosure: | Open | Component Type: | Outer race only |
| Separable: | Nonseparable | Retainer: | No |
