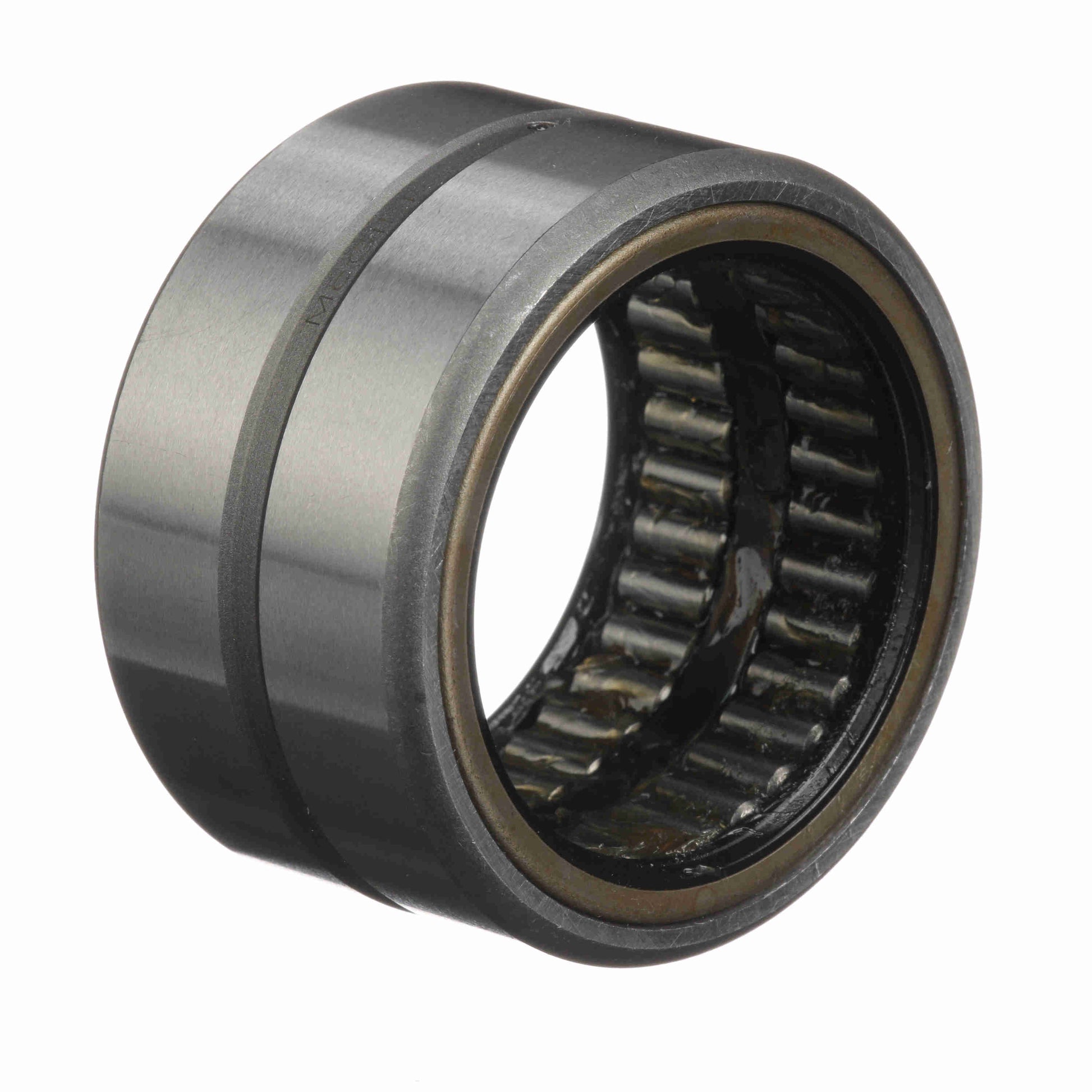

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 26 SS
General Specifications
| UPC: | 726166062149 | Weight: | 0.49 LB |
| Packaged Length: | 2.6 Inches | Packaged Width: | 2.3 Inches |
| Packaged Height: | 1.6 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Outside Diameter - Inch: | 2.1875 in |
| Housing & Shaft Fillet (in): | 0.06 in | Hole Diameter: | 0.094 |
| Bore Size - Inch: | 1.6250 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Series: | Standard |
| Includes Inner Ring: | No | Cage Material: | No retainer |
| Seal Type: | Rubber Lip | Bore Type: | Straight |
| Number of Rows: | 1 | Misalignment: | No |
| Radial Clearance: | Normal | Rolling Element: | Needle Roller |
| Dynamic Load Rating: | 7,500 | Static Load Rating (lb): | 21,700 lb |
| Speed (Max) Oil: | 2,350 | Sealed: | Sealed - Both Sides |
| Speed (Max) Grease: | 1,200 | Duplexing: | No |
| Full Complement/Caged: | Full Complement | Platform: | Guiderol Bearing |
| Flanges: | No flange | Lubrication Hole Type: | Lubrication groove and hole |
| Related Inner Ring: | MI 21 | Precision Rating: | RBEC-1 |
| Operating Temperature Range: | -20 to 250 °F | Enclosure: | Sealed Both Sides |
| Component Type: | Outer race only | Separable: | Nonseparable |
| Retainer: | No |
