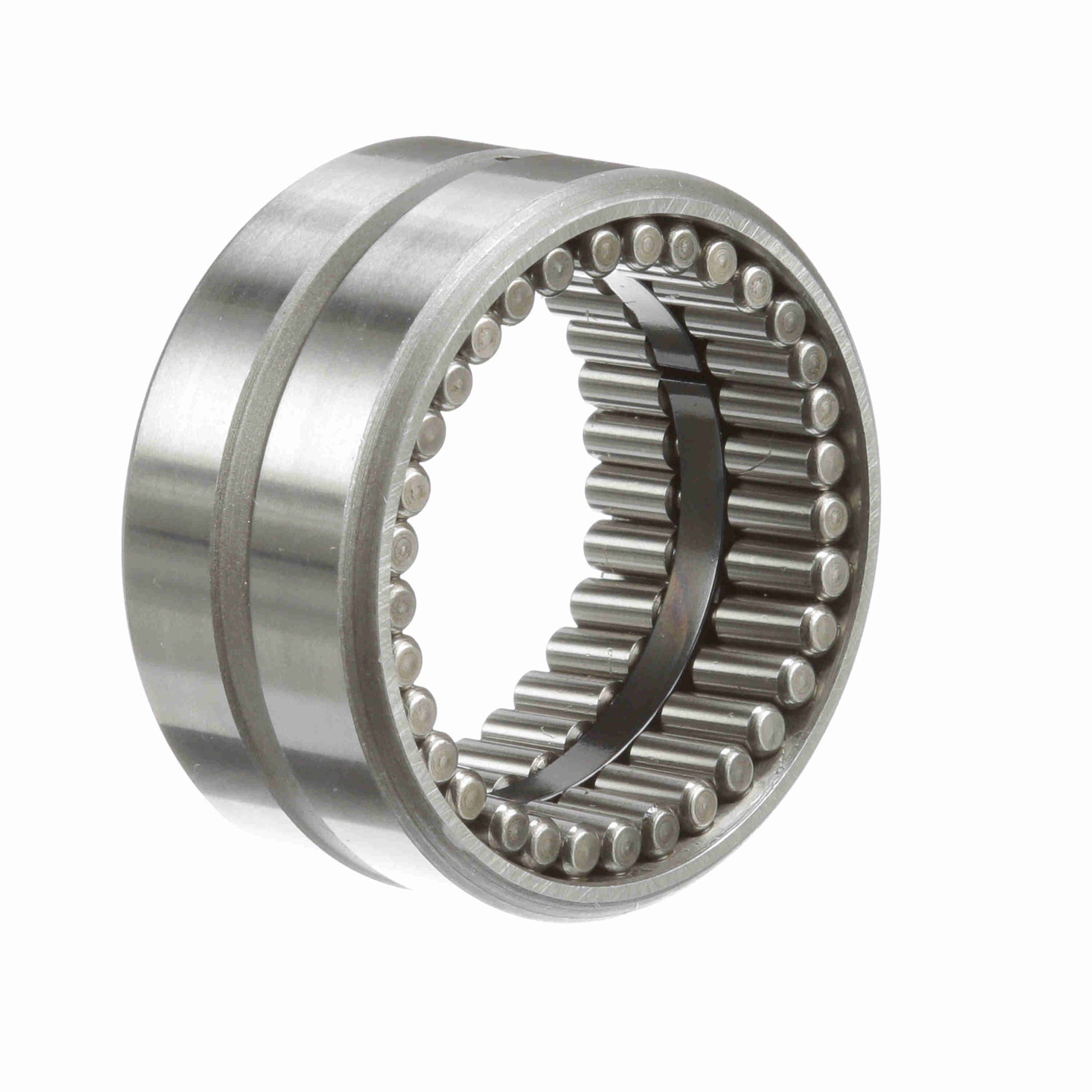

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - GR 24 N
General Specifications
| UPC: | 726166062095 | Weight: | 0.37 LB |
| Packaged Length: | 2.6 Inches | Packaged Width: | 2.3 Inches |
| Packaged Height: | 1.7 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1 | Outside Diameter - Inch: | 2.0625 in |
| Housing & Shaft Fillet (in): | 0.06 in | Hole Diameter: | 0.094 |
| Bore Size - Inch: | 1.5000 in |
Technical Specifications
| Includes Inner Ring: | No | Series: | Narrow |
| Material: | 52100 Bearing Steel | Cage Material: | No retainer |
| Bore Type: | Straight | Rolling Element: | Needle Roller |
| Seal Type: | Unsealed | Radial Clearance: | Normal |
| Misalignment: | No | Number of Rows: | 1 |
| Sealed: | None | Platform: | Guiderol Bearing |
| Static Load Rating (lb): | 20,200 lb | Speed (Max) Grease: | 2,000 |
| Duplexing: | No | Dynamic Load Rating: | 7,150 |
| Full Complement/Caged: | Full Complement | Speed (Max) Oil: | 4,000 |
| Lubrication Hole Type: | Lubrication Groove & Hole | Standard Met: | ABMA, ISO |
| Flanges: | No Flanges | Precision Rating: | RBEC-1 |
| Operating Temperature Range: | -20 to 250 °F | Related Inner Ring: | MI 20 N |
| Component Type: | Outer race only | Separable: | Nonseparable |
| Enclosure: | Open | Retainer: | No |
