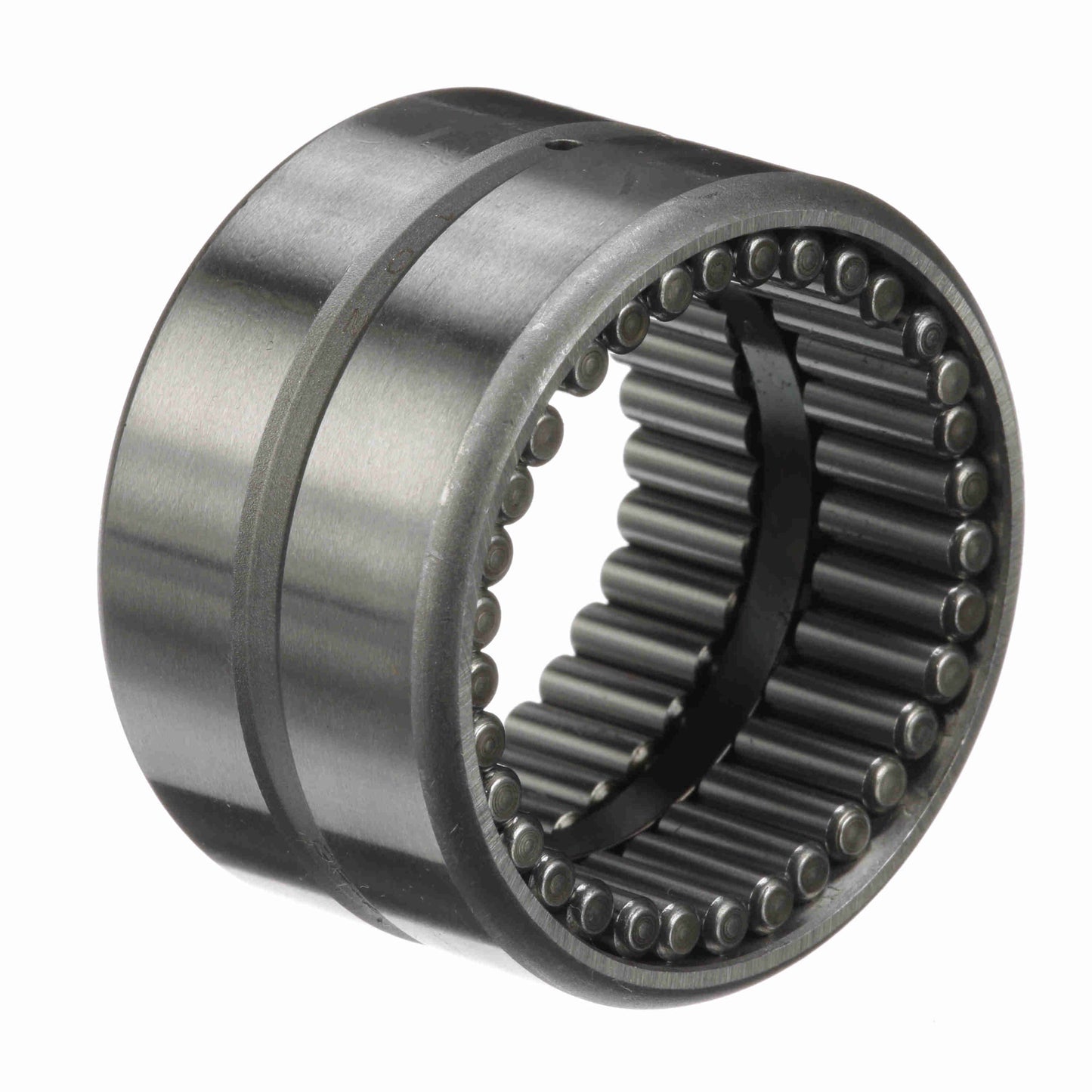

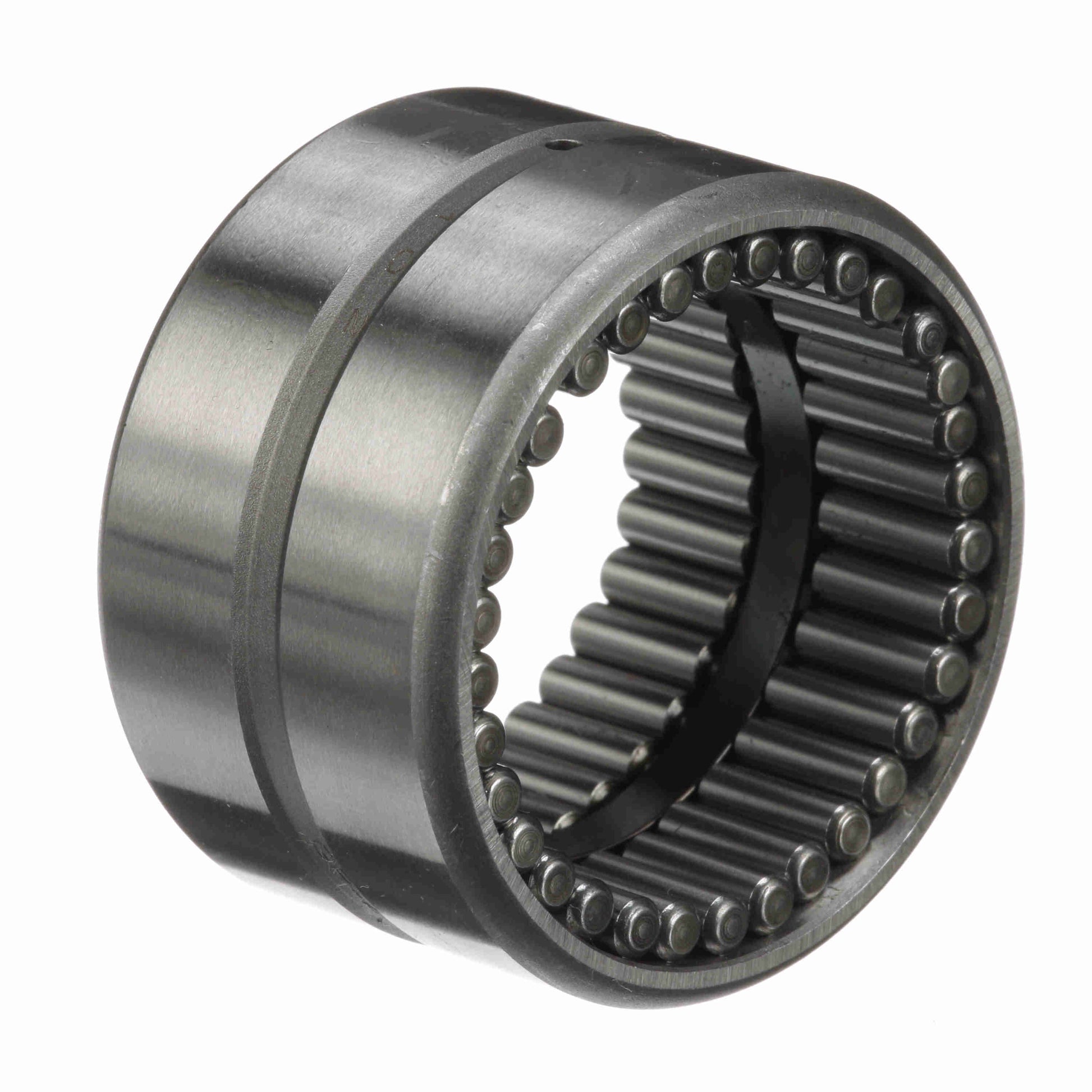

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - GR 24
General Specifications
| UPC: | 726166062002 | Weight: | 0.47 LB |
| Packaged Length: | 2.31 Inches | Packaged Width: | 1.56 Inches |
| Packaged Height: | 2.31 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Outside Diameter - Inch: | 2.0625 in |
| Housing & Shaft Fillet (in): | 0.06 in | Hole Diameter: | 0.094 |
| Bore Size - Inch: | 1.5000 in |
Technical Specifications
| Includes Inner Ring: | No | Material: | 52100 Bearing Steel |
| Series: | Standard | Cage Material: | No retainer |
| Radial Clearance: | Normal | Number of Rows: | 1 |
| Misalignment: | No | Rolling Element: | Needle Roller |
| Bore Type: | Straight | Seal Type: | Unsealed |
| Full Complement/Caged: | Full Complement | Speed (Max) Oil: | 4,000 |
| Speed (Max) Grease: | 2,000 | Duplexing: | No |
| Dynamic Load Rating: | 9,150 | Platform: | Guiderol Bearing |
| Static Load Rating (lb): | 27,800 lb | Sealed: | None |
| Flanges: | No flange | Related Inner Ring: | MI 19 |
| Lubrication Hole Type: | Lubrication groove and hole | Precision Rating: | RBEC-1 |
| Operating Temperature Range: | -20 to 250 °F | Component Type: | Outer race only |
| Separable: | Nonseparable | Enclosure: | Open |
| Retainer: | No |
