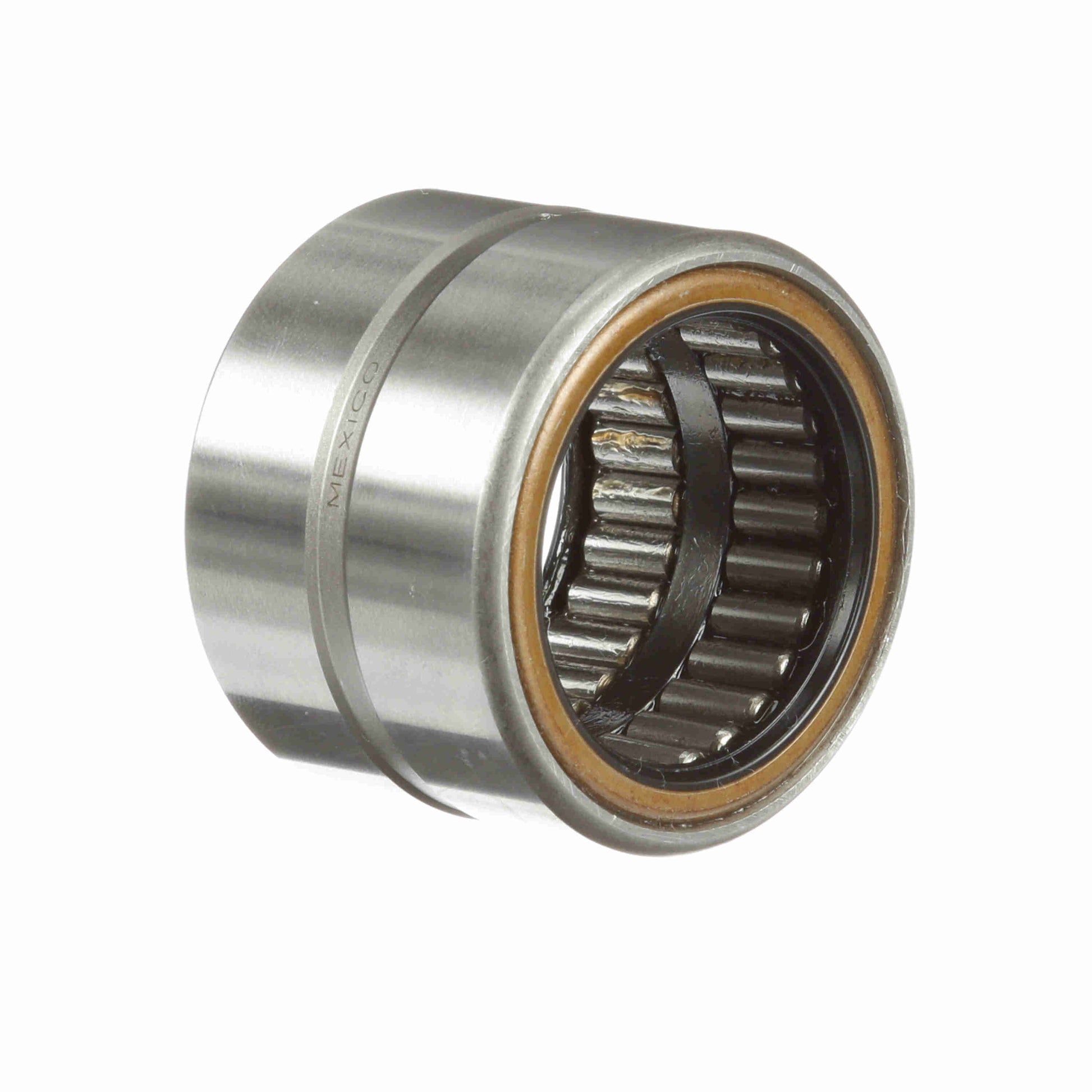

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 20 SS
General Specifications
| UPC: | 726166061807 | Weight: | 0.34 LB |
| Packaged Length: | 1.8 Inches | Packaged Width: | 1.3 Inches |
| Packaged Height: | 2.3 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Hole Diameter: | 0.094 |
| Housing & Shaft Fillet (in): | 0.04 in | Outside Diameter - Inch: | 1.75 in |
| Bore Size - Inch: | 1.2500 in |
Technical Specifications
| Includes Inner Ring: | No | Material: | 52100 Bearing Steel |
| Series: | Standard | Cage Material: | No retainer |
| Number of Rows: | 1 | Bore Type: | Straight |
| Radial Clearance: | Normal | Misalignment: | No |
| Seal Type: | Rubber Lip | Rolling Element: | Needle Roller |
| Dynamic Load Rating: | 6,500 | Platform: | Guiderol Bearing |
| Sealed: | Sealed - Both Sides | Duplexing: | No |
| Speed (Max) Oil: | 3,050 | Static Load Rating (lb): | 17,000 lb |
| Full Complement/Caged: | Full Complement | Speed (Max) Grease: | 1,500 |
| Flanges: | No flange | Precision Rating: | RBEC-1 |
| Related Inner Ring: | MI 16 | Lubrication Hole Type: | Lubrication groove and hole |
| Operating Temperature Range: | -20 to 250 °F | Component Type: | Outer race only |
| Separable: | Nonseparable | Enclosure: | Sealed Both Sides |
| Retainer: | No |
