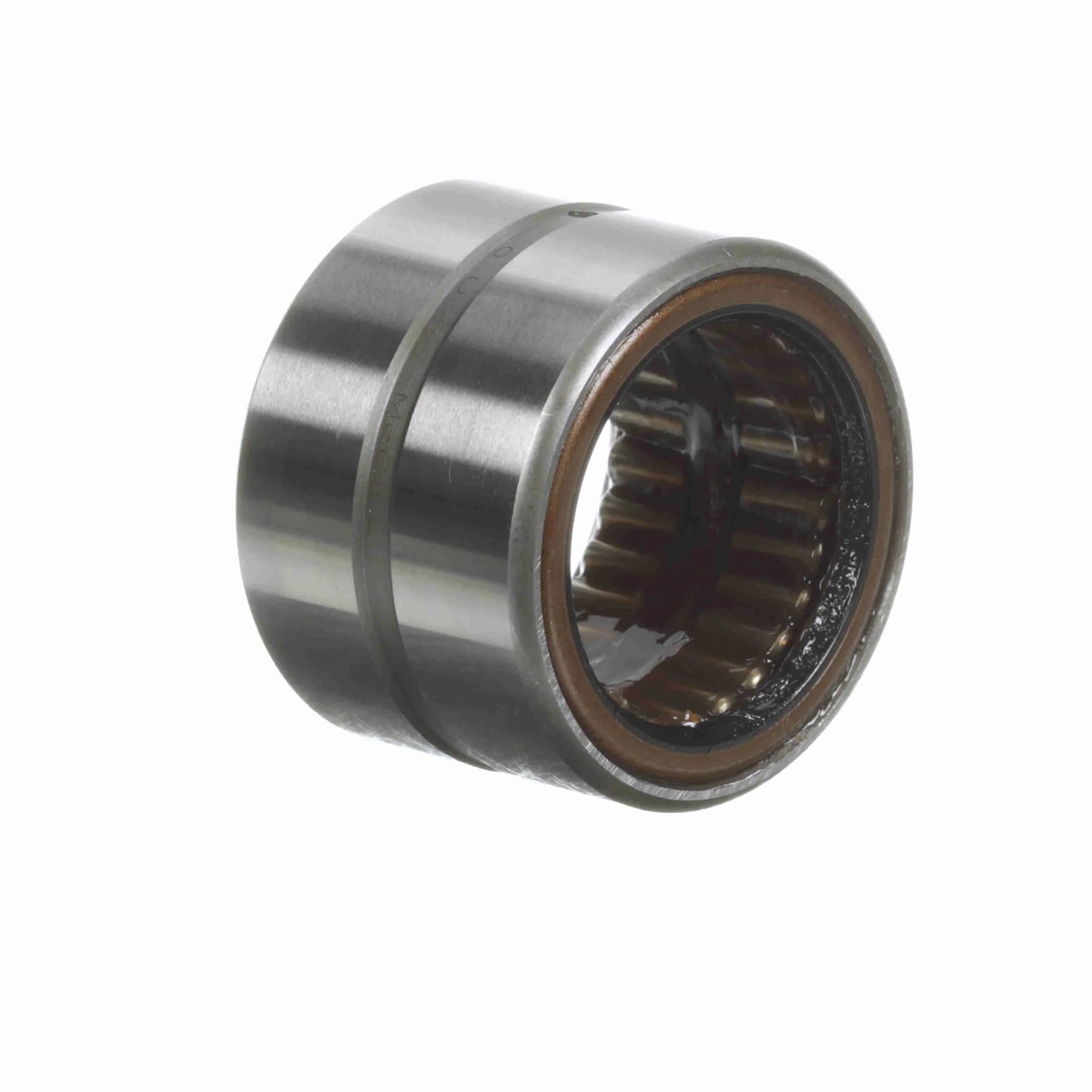

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 20 S
General Specifications
| UPC: | 726166061784 | Weight: | 0.30 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Outside Diameter - Inch: | 1.75 in |
| Bore Size - Inch: | 1.2500 in | Housing & Shaft Fillet (in): | 0.04 in |
| Hole Diameter: | 0.094 |
Technical Specifications
| Material: | 52100 Bearing Steel | Includes Inner Ring: | No |
| Series: | Standard | Cage Material: | No retainer |
| Seal Type: | Rubber Lip | Number of Rows: | 1 |
| Misalignment: | No | Radial Clearance: | Normal |
| Rolling Element: | Needle Roller | Bore Type: | Straight |
| Static Load Rating (lb): | 17,000 lb | Sealed: | Sealed - One Side |
| Speed (Max) Grease: | 3,050 | Platform: | Guiderol Bearing |
| Duplexing: | No | Dynamic Load Rating: | 6,500 |
| Full Complement/Caged: | Full Complement | Standard Met: | ABMA, ISO |
| Flanges: | No Flanges | Operating Temperature Range: | -20 to 250 °F |
| Precision Rating: | RBEC-1 | Related Inner Ring: | MI 16 |
| Lubrication Hole Type: | Lubrication Groove & Hole | Component Type: | Outer race only |
| Enclosure: | Sealed One Side | Separable: | Nonseparable |
| Retainer: | No |
