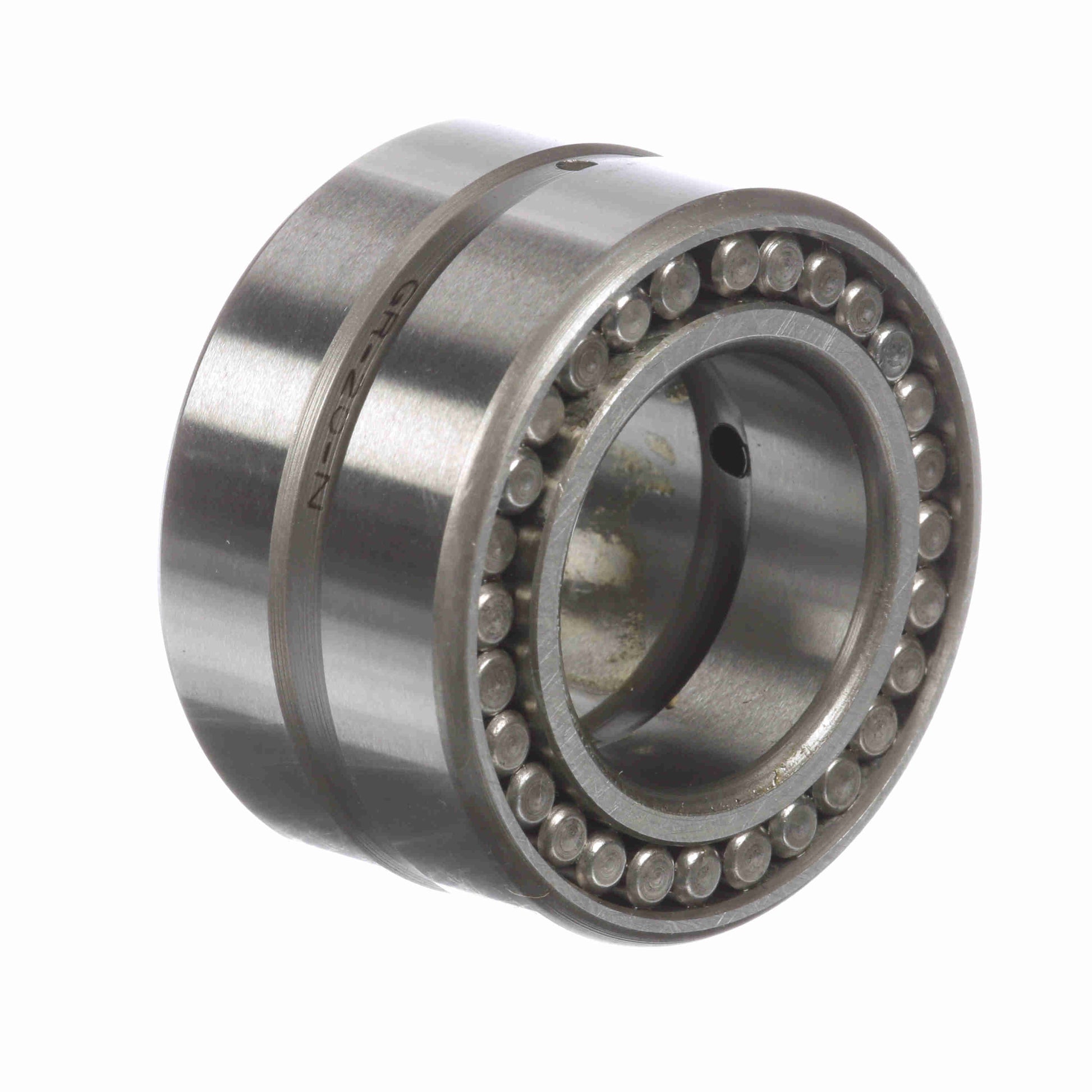

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - GR 20 N/MI 16 N
General Specifications
| UPC: | 726166117351 | Weight: | 0.39 LB |
| Packaged Length: | 1.9 Inches | Packaged Width: | 2.2 Inches |
| Packaged Height: | 1.6 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1 | Inner Width: | 1.01 |
| Hole Diameter: | 0.094 | Outside Diameter - Inch: | 1.75 in |
| Bore Size - Inch: | 1.2500 in | Housing & Shaft Fillet (in): | 0.04 in |
Technical Specifications
| Series: | Narrow | Includes Inner Ring: | Yes |
| Material: | 52100 Bearing Steel | Cage Material: | No retainer |
| Radial Clearance: | Normal | Seal Type: | Unsealed |
| Rolling Element: | Needle Roller | Bore Type: | Straight |
| Number of Rows: | 1 | Misalignment: | No |
| Full Complement/Caged: | Full Complement | Sealed: | None |
| Speed (Max) Grease: | 2,400 | Dynamic Load Rating: | 6,500 |
| Duplexing: | No | Static Load Rating (lb): | 17,000 lb |
| Platform: | Guiderol Bearing | Speed (Max) Oil: | 4,800 |
| Operating Temperature Range: | -20F to 250 °F | Precision Rating: | Not Rated |
| Standard Met: | ABMA;ISO | Lubrication Hole Type: | Lubrication Groove & Hole |
| Separable: | Inner ring - both sides | Enclosure: | Open |
| Component Type: | Outer race only | Retainer: | No |
