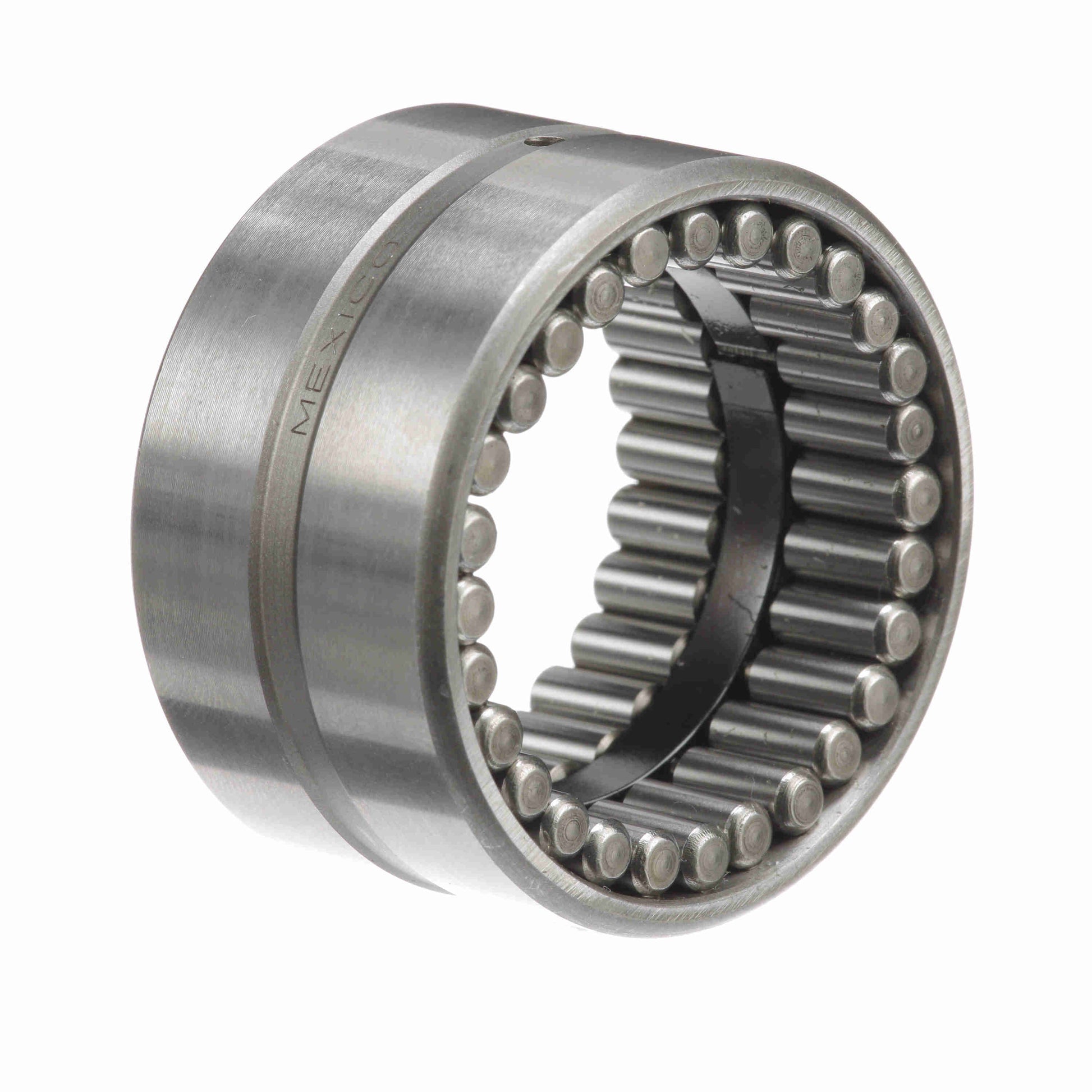

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (with inner) - GR 20 N
General Specifications
| UPC: | 726166061883 | Weight: | 0.25 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1 | Hole Diameter: | 0.094 |
| Bore Size - Inch: | 1.2500 in | Housing & Shaft Fillet (in): | 0.04 in |
| Outside Diameter - Inch: | 1.75 in |
Technical Specifications
| Includes Inner Ring: | No | Material: | 52100 Bearing Steel |
| Series: | Narrow | Cage Material: | No retainer |
| Number of Rows: | 1 | Seal Type: | Unsealed |
| Misalignment: | No | Rolling Element: | Needle Roller |
| Radial Clearance: | Normal | Bore Type: | Straight |
| Platform: | Guiderol Bearing | Speed (Max) Oil: | 4,800 |
| Dynamic Load Rating: | 6,500 | Full Complement/Caged: | Full Complement |
| Sealed: | None | Speed (Max) Grease: | 2,400 |
| Static Load Rating (lb): | 17,000 lb | Duplexing: | No |
| Related Inner Ring: | MI 16 N | Standard Met: | ABMA, ISO |
| Lubrication Hole Type: | Lubrication Groove & Hole | Precision Rating: | RBEC-1 |
| Flanges: | No Flanges | Operating Temperature Range: | -20 to 250 °F |
| Component Type: | Outer race only | Separable: | Nonseparable |
| Enclosure: | Open | Retainer: | No |
