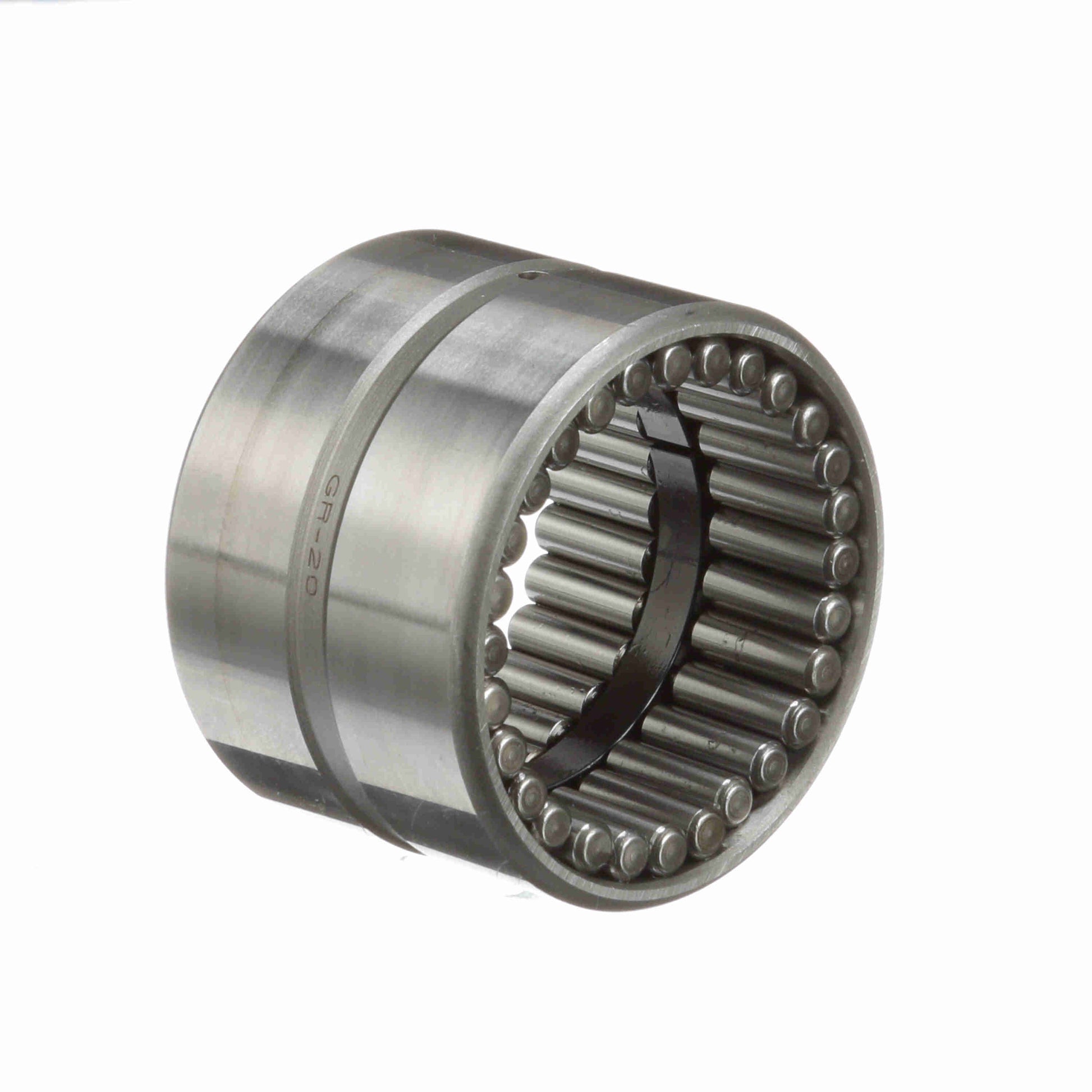

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (with inner) - GR 20
General Specifications
| UPC: | 726166061777 | Weight: | 0.34 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Hole Diameter: | 0.094 |
| Bore Size - Inch: | 1.2500 in | Housing & Shaft Fillet (in): | 0.04 in |
| Outside Diameter - Inch: | 1.75 in |
Technical Specifications
| Includes Inner Ring: | No | Series: | Standard |
| Material: | 52100 Bearing Steel | Cage Material: | No retainer |
| Radial Clearance: | Normal | Misalignment: | No |
| Rolling Element: | Needle Roller | Seal Type: | Unsealed |
| Number of Rows: | 1 | Bore Type: | Straight |
| Platform: | Guiderol Bearing | Full Complement/Caged: | Full Complement |
| Sealed: | None | Duplexing: | No |
| Static Load Rating (lb): | 23,100 lb | Speed (Max) Oil: | 4,800 |
| Speed (Max) Grease: | 2,400 | Dynamic Load Rating: | 8,300 |
| Precision Rating: | RBEC-1 | Lubrication Hole Type: | Lubrication groove and hole |
| Related Inner Ring: | MI 16 | Operating Temperature Range: | -20 to 250 °F |
| Flanges: | No flange | Separable: | Nonseparable |
| Component Type: | Outer race only | Enclosure: | Open |
| Retainer: | No |
