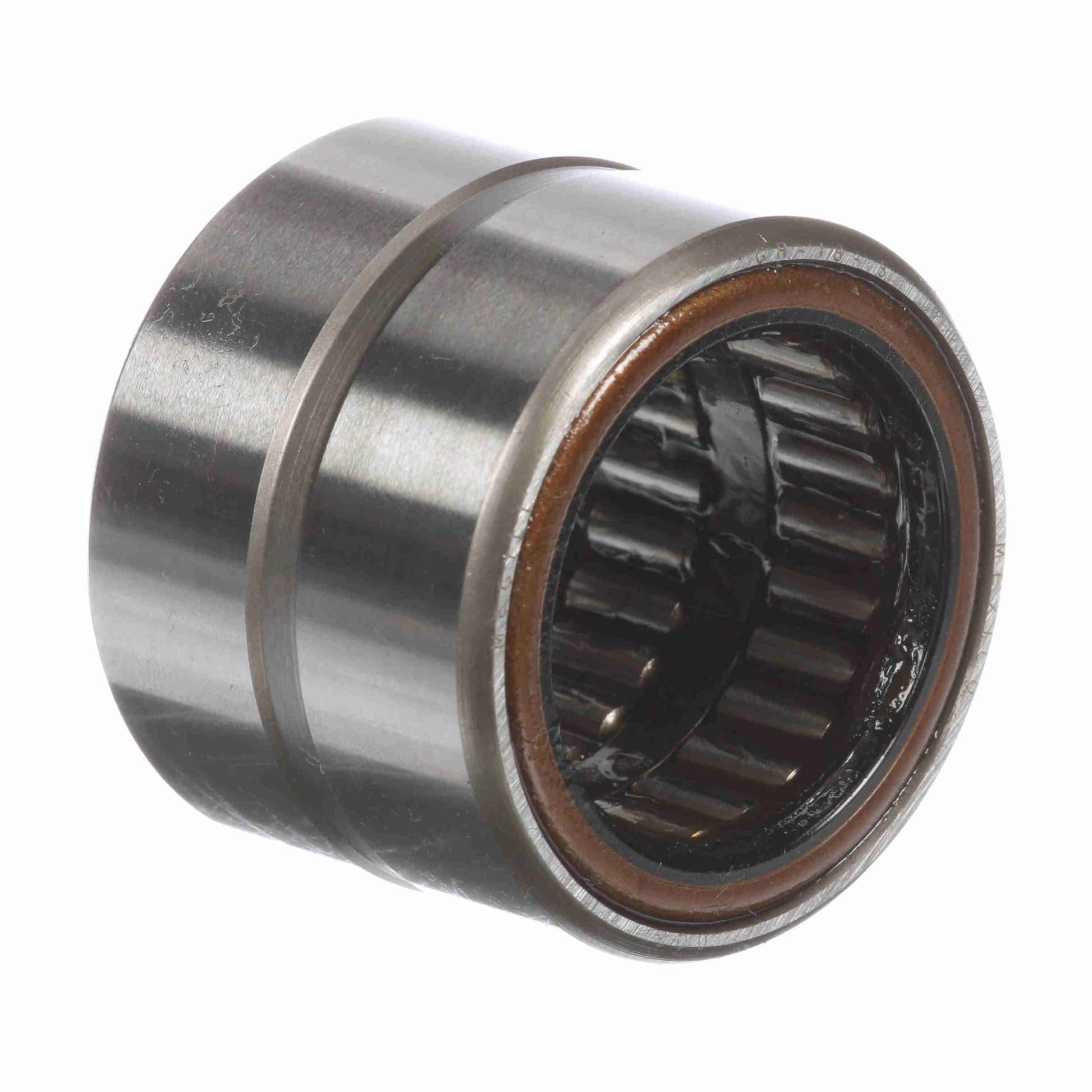

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 18 SRS
General Specifications
| UPC: | 726166061708 | Weight: | 0.31 LB |
| Packaged Length: | 2.4 Inches | Packaged Width: | 1.7 Inches |
| Packaged Height: | 1.6 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Outside Diameter - Inch: | 1.625 in |
| Housing & Shaft Fillet (in): | 0.04 in | Bore Size - Inch: | 1.1250 in |
| Hole Diameter: | 0.094 |
Technical Specifications
| Includes Inner Ring: | No | Series: | Standard |
| Material: | 52100 Bearing Steel | Cage Material: | No retainer |
| Seal Type: | Rubber Lip | Rolling Element: | Needle Roller |
| Number of Rows: | 1 | Misalignment: | No |
| Radial Clearance: | Normal | Bore Type: | Straight |
| Platform: | Guiderol Bearing | Dynamic Load Rating: | 6,250 |
| Duplexing: | No | Speed (Max) Oil: | 3,401 |
| Static Load Rating (lb): | 15,200 lb | Speed (Max) Grease: | 1,700 |
| Sealed: | Sealed - Both Sides | Full Complement/Caged: | Full Complement |
| Precision Rating: | RBEC-1 | Flanges: | No flange |
| Lubrication Hole Type: | Lubrication groove and hole | Related Inner Ring: | MI 14 |
| Operating Temperature Range: | -20 to 250 °F | Component Type: | Outer race only |
| Enclosure: | Sealed Both Sides | Separable: | Nonseparable |
| Retainer: | No |
