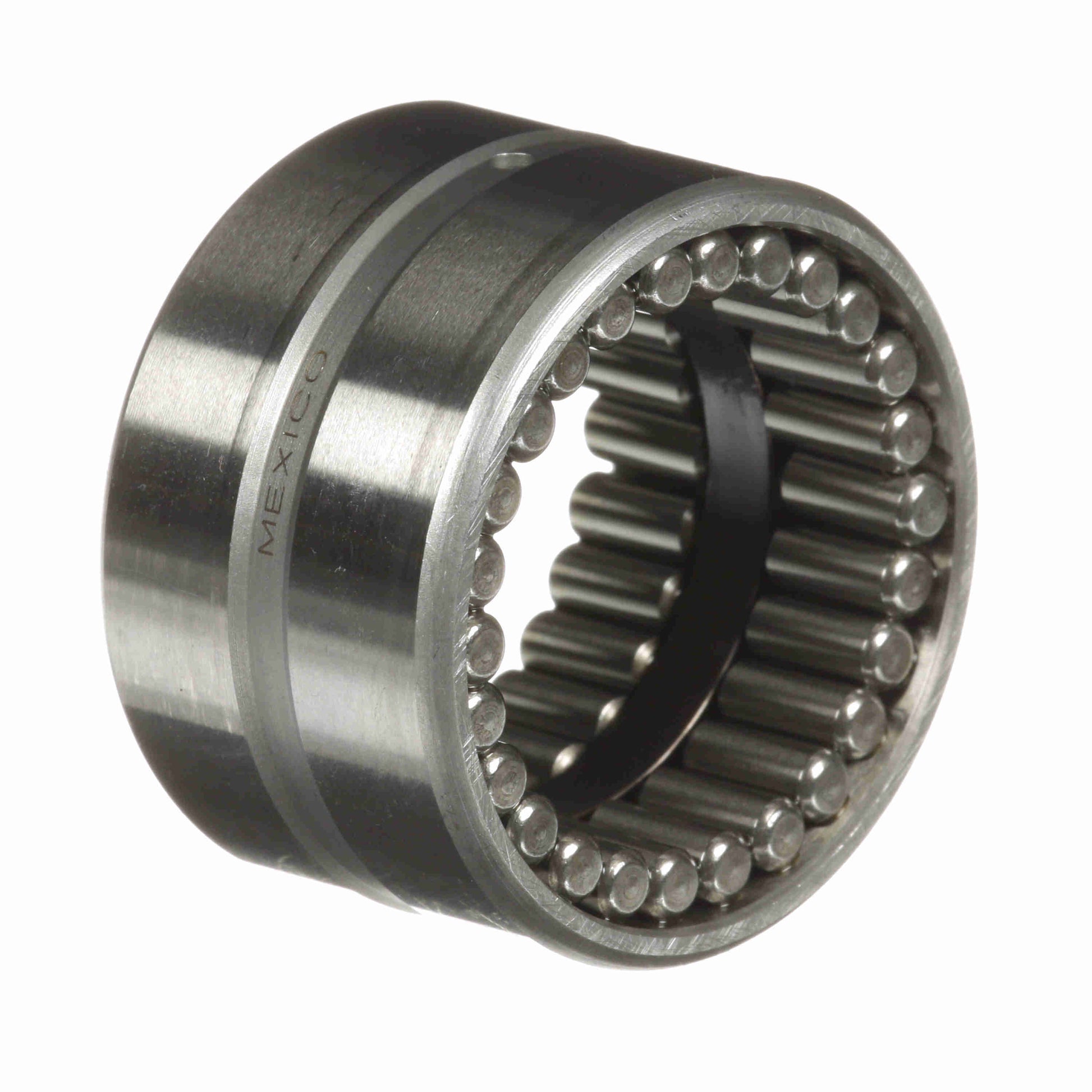

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - GR 18 N
General Specifications
| UPC: | 726166061746 | Weight: | 0.66 LB |
| Packaged Length: | 1.8 Inches | Packaged Width: | 1.4 Inches |
| Packaged Height: | 2.3 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1 | Outside Diameter - Inch: | 1.625 in |
| Bore Size - Inch: | 1.1250 in | Hole Diameter: | 0.094 |
| Housing & Shaft Fillet (in): | 0.04 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Series: | Narrow |
| Includes Inner Ring: | No | Cage Material: | No retainer |
| Seal Type: | Unsealed | Bore Type: | Straight |
| Rolling Element: | Needle Roller | Radial Clearance: | Normal |
| Misalignment: | No | Number of Rows: | 1 |
| Static Load Rating (lb): | 15,200 lb | Speed (Max) Oil: | 5,300 |
| Duplexing: | No | Full Complement/Caged: | Full Complement |
| Sealed: | None | Speed (Max) Grease: | 2,650 |
| Dynamic Load Rating: | 6,250 | Platform: | Guiderol Bearing |
| Standard Met: | ABMA, ISO | Related Inner Ring: | MI 14 N, MI 15 N |
| Lubrication Hole Type: | Lubrication Groove & Hole | Flanges: | No Flanges |
| Precision Rating: | RBEC-1 | Operating Temperature Range: | -20 to 250 °F |
| Separable: | Nonseparable | Component Type: | Outer race only |
| Enclosure: | Open | Retainer: | No |
