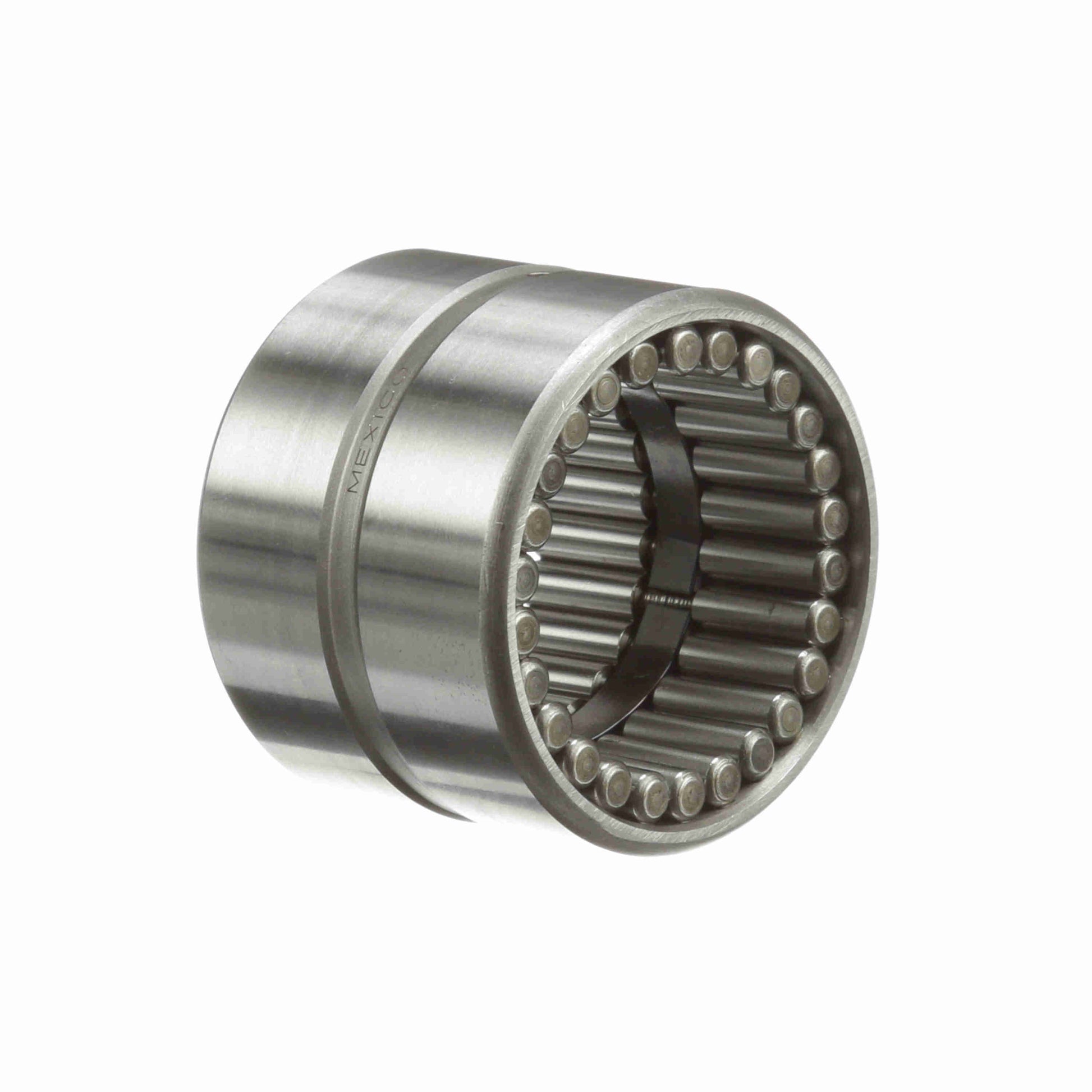

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - GR 18
General Specifications
| UPC: | 726166061685 | Weight: | 0.32 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Outside Diameter - Inch: | 1.625 in |
| Housing & Shaft Fillet (in): | 0.04 in | Hole Diameter: | 0.094 |
| Bore Size - Inch: | 1.1250 in |
Technical Specifications
| Includes Inner Ring: | No | Series: | Standard |
| Material: | 52100 Bearing Steel | Cage Material: | No retainer |
| Misalignment: | No | Bore Type: | Straight |
| Radial Clearance: | Normal | Rolling Element: | Needle Roller |
| Seal Type: | Unsealed | Number of Rows: | 1 |
| Sealed: | None | Full Complement/Caged: | Full Complement |
| Dynamic Load Rating: | 7,900 | Speed (Max) Grease: | 2,650 |
| Platform: | Guiderol Bearing | Static Load Rating (lb): | 20,900 lb |
| Duplexing: | No | Speed (Max) Oil: | 5,300 |
| Operating Temperature Range: | -20 to 250 °F | Lubrication Hole Type: | Lubrication groove and hole |
| Related Inner Ring: | MI 15 | Flanges: | No flange |
| Precision Rating: | RBEC-1 | Component Type: | Outer race only |
| Enclosure: | Open | Separable: | Nonseparable |
| Retainer: | No |
