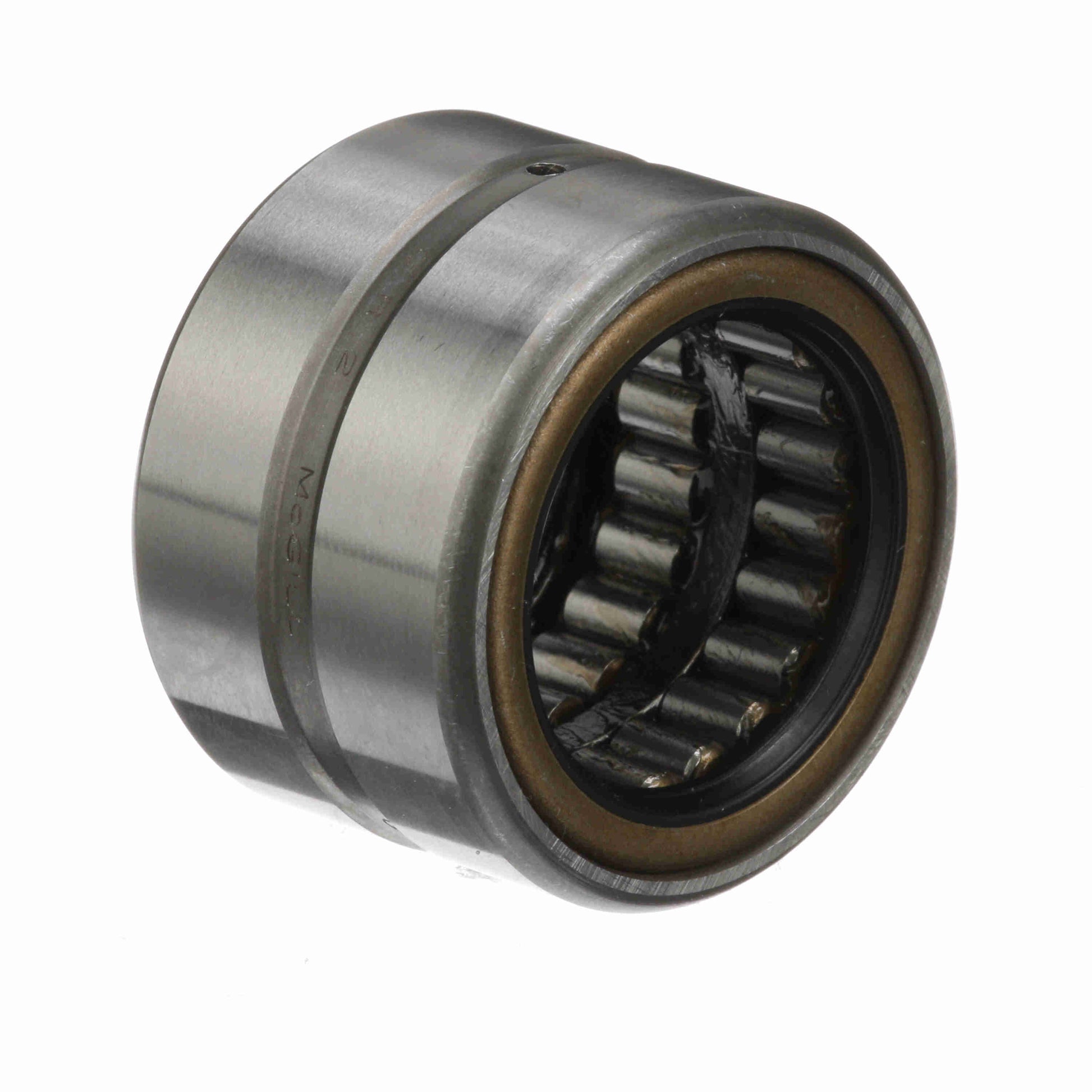

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 16 SS
General Specifications
| UPC: | 726166061609 | Weight: | 0.62 LB |
| Packaged Length: | 1.7 Inches | Packaged Width: | 1.5 Inches |
| Packaged Height: | 2.1 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1 | Hole Diameter: | 0.079 |
| Outside Diameter - Inch: | 1.5 in | Housing & Shaft Fillet (in): | 0.04 in |
| Bore Size - Inch: | 1 in |
Technical Specifications
| Includes Inner Ring: | No | Series: | Standard |
| Material: | 52100 Bearing Steel | Cage Material: | No retainer |
| Seal Type: | Rubber Lip | Radial Clearance: | Normal |
| Misalignment: | No | Number of Rows: | 1 |
| Rolling Element: | Needle Roller | Bore Type: | Straight |
| Full Complement/Caged: | Full Complement | Sealed: | Sealed - Both Sides |
| Static Load Rating (lb): | 9,600 lb | Dynamic Load Rating: | 4,350 |
| Duplexing: | No | Platform: | Guiderol Bearing |
| Speed (Max) Grease: | 3,800 | Standard Met: | ABMA, ISO |
| Lubrication Hole Type: | Lubrication Groove & Hole | Flanges: | No Flanges |
| Operating Temperature Range: | -20 to 250 °F | Precision Rating: | RBEC-1 |
| Related Inner Ring: | MI 12 | Component Type: | Outer race only |
| Separable: | Nonseparable | Enclosure: | Sealed Both Sides |
| Retainer: | No |
