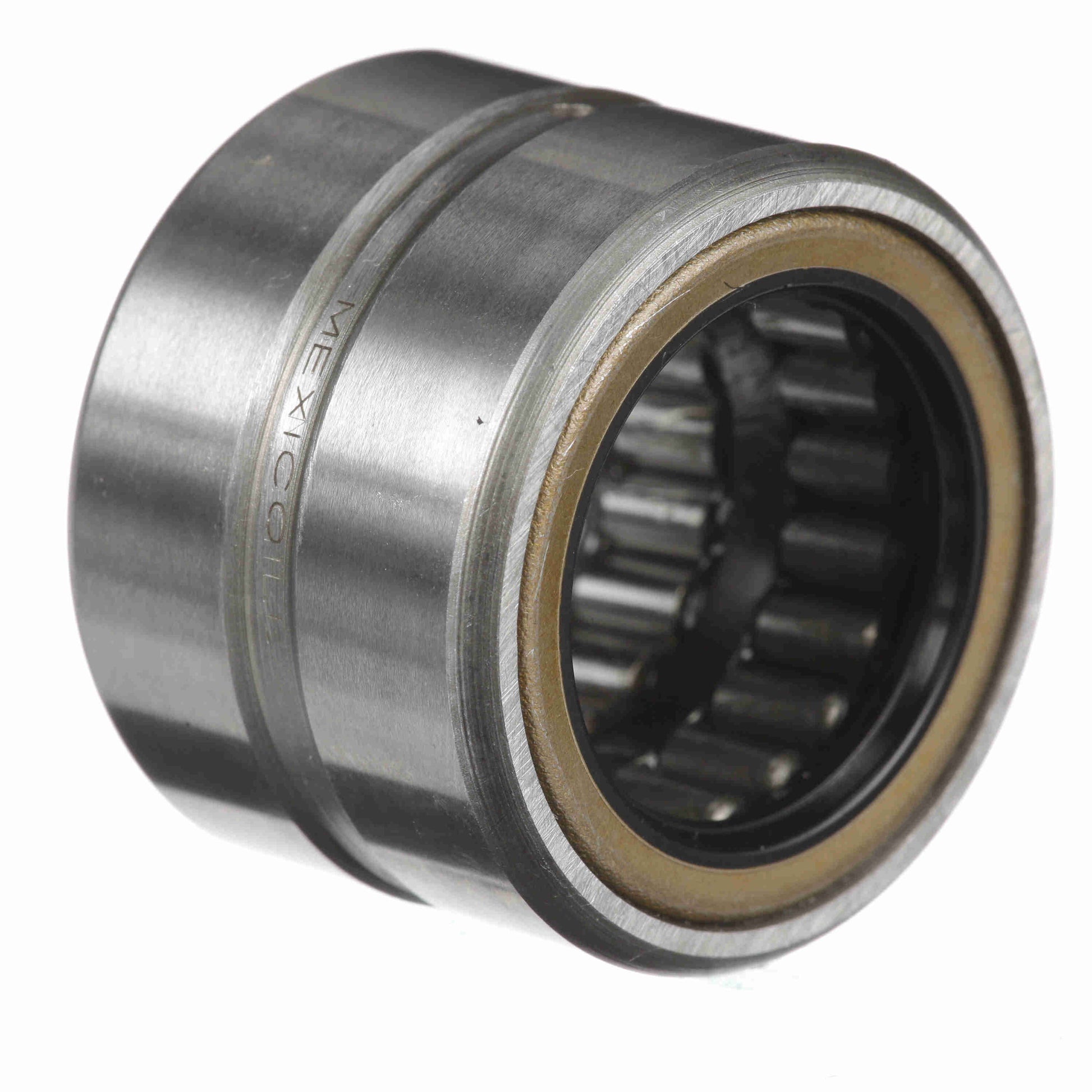

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 14 SS
General Specifications
| UPC: | 726166061470 | Weight: | 0.21 LB |
| Packaged Length: | 1.8 Inches | Packaged Width: | 1.4 Inches |
| Packaged Height: | 2.3 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1 | Bore Size - Inch: | 0.8750 in |
| Hole Diameter: | 0.079 | Housing & Shaft Fillet (in): | 0.04 in |
| Outside Diameter - Inch: | 1.375 in |
Technical Specifications
| Series: | Standard | Material: | 52100 Bearing Steel |
| Includes Inner Ring: | No | Cage Material: | No retainer |
| Radial Clearance: | Normal | Rolling Element: | Needle Roller |
| Misalignment: | No | Number of Rows: | 1 |
| Seal Type: | Rubber Lip | Bore Type: | Straight |
| Static Load Rating (lb): | 8,400 lb | Sealed: | Sealed - Both Sides |
| Dynamic Load Rating: | 4,150 | Full Complement/Caged: | Full Complement |
| Platform: | Guiderol Bearing | Duplexing: | No |
| Speed (Max) Grease: | 4,400 | Standard Met: | ABMA, ISO |
| Precision Rating: | RBEC-1 | Lubrication Hole Type: | Lubrication Groove & Hole |
| Related Inner Ring: | MI 10 | Flanges: | No Flanges |
| Operating Temperature Range: | -20 to 250 °F | Component Type: | Outer race only |
| Enclosure: | Sealed Both Sides | Separable: | Nonseparable |
| Retainer: | No |
