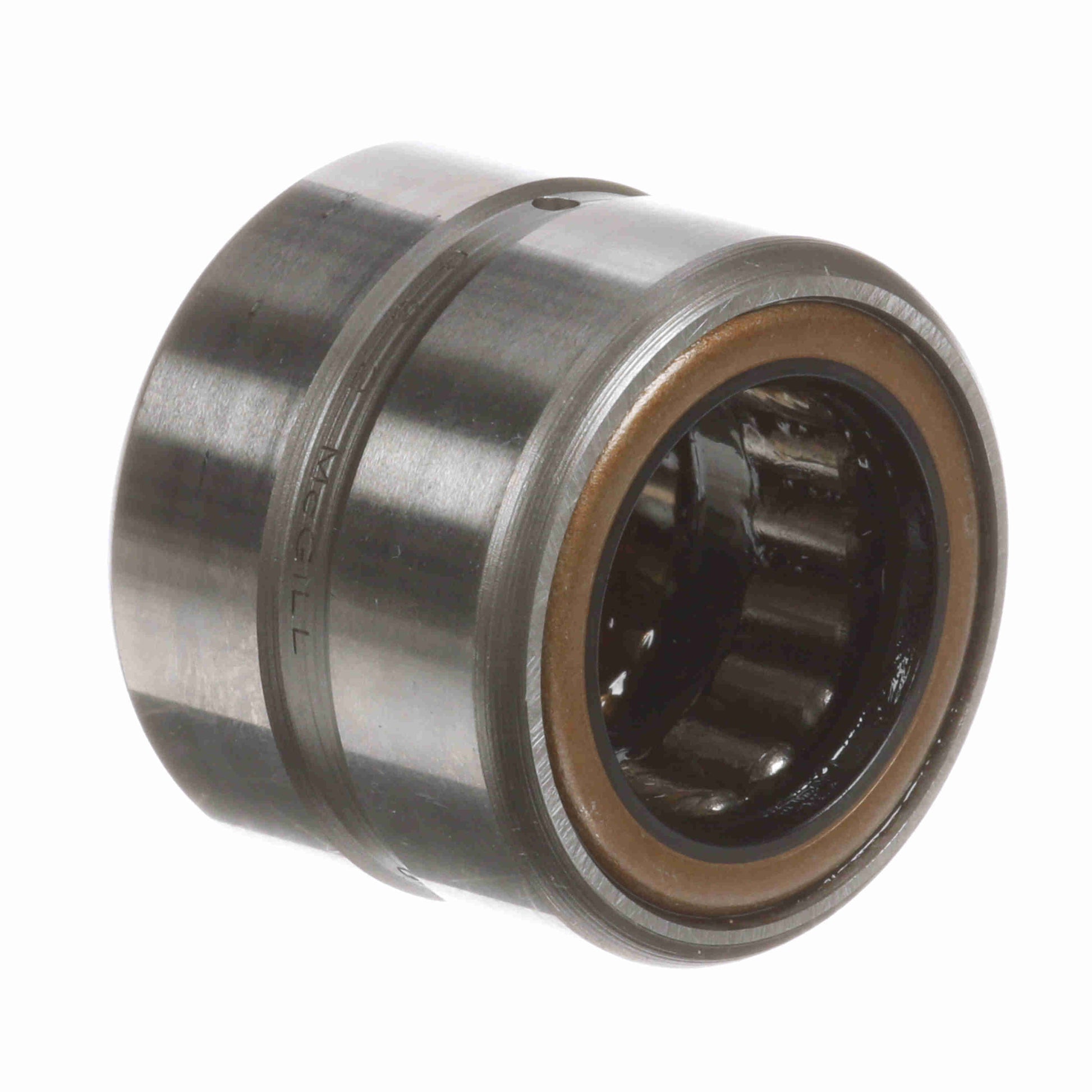

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 12 S
General Specifications
| UPC: | 726166061326 | Weight: | 0.17 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1 | Housing & Shaft Fillet (in): | 0.04 in |
| Outside Diameter - Inch: | 1.25 in | Hole Diameter: | 0.079 |
| Bore Size - Inch: | 0.7500 in |
Technical Specifications
| Includes Inner Ring: | No | Material: | 52100 Bearing Steel |
| Series: | Standard | Cage Material: | No retainer |
| Misalignment: | No | Rolling Element: | Needle Roller |
| Number of Rows: | 1 | Radial Clearance: | Normal |
| Seal Type: | Rubber Lip | Bore Type: | Straight |
| Sealed: | Sealed - One Side | Platform: | Guiderol Bearing |
| Full Complement/Caged: | Full Complement | Speed (Max) Grease: | 5,100 |
| Dynamic Load Rating: | 3,700 | Duplexing: | No |
| Static Load Rating (lb): | 7,200 lb | Standard Met: | ABMA, ISO |
| Related Inner Ring: | MI 8 | Flanges: | No Flanges |
| Operating Temperature Range: | -20 to 250 °F | Precision Rating: | RBEC-1 |
| Lubrication Hole Type: | Lubrication Groove & Hole | Component Type: | Outer race only |
| Enclosure: | Sealed One Side | Separable: | Nonseparable |
| Retainer: | No |
