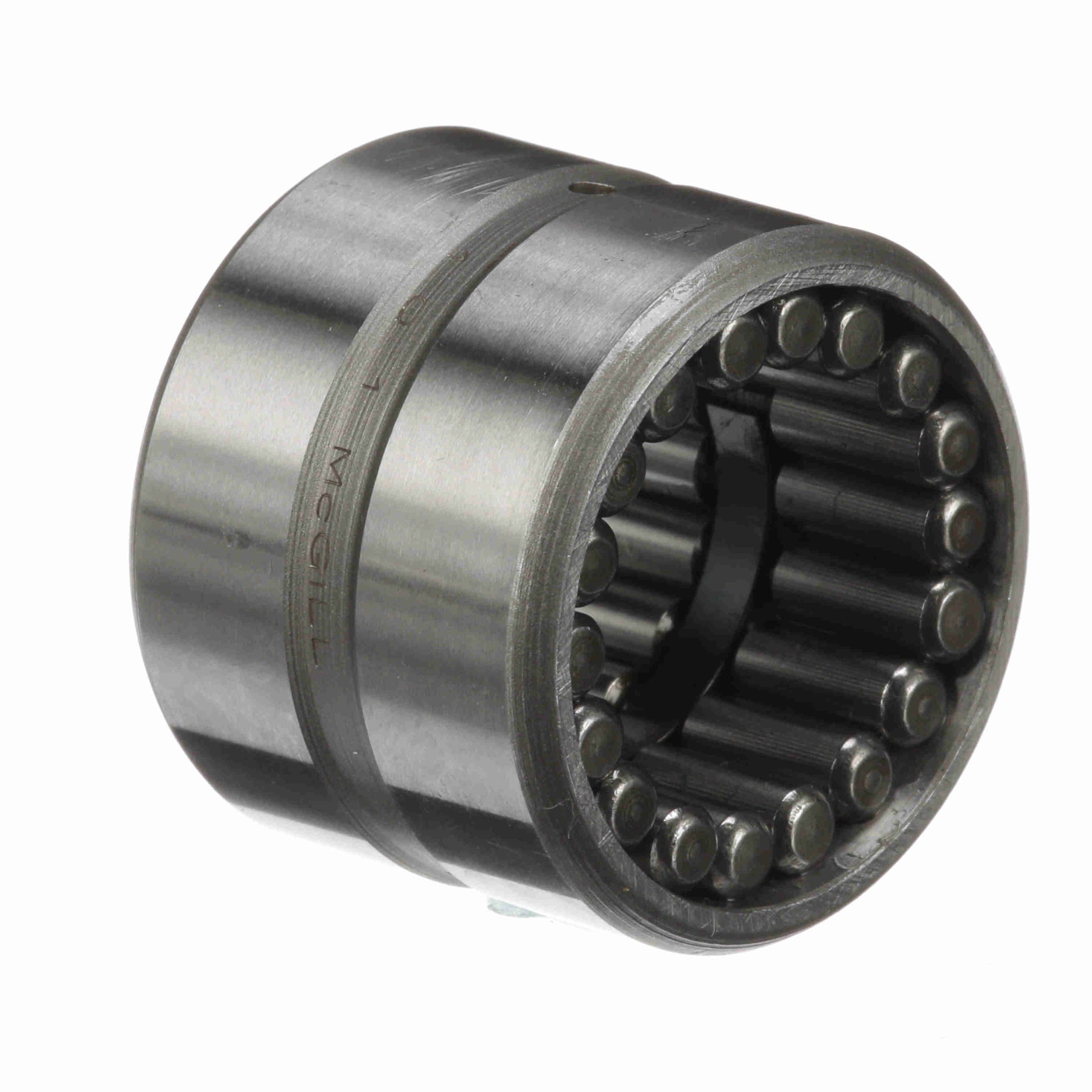

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - GR 12
General Specifications
| UPC: | 726166061319 | Weight: | 0.60 LB |
| Packaged Length: | 2.3 Inches | Packaged Width: | 1.4 Inches |
| Packaged Height: | 1.8 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1 | Bore Size - Inch: | 0.7500 in |
| Outside Diameter - Inch: | 1.25 in | Housing & Shaft Fillet (in): | 0.04 in |
| Hole Diameter: | 0.079 |
Technical Specifications
| Includes Inner Ring: | No | Material: | 52100 Bearing Steel |
| Series: | Standard | Cage Material: | No retainer |
| Rolling Element: | Needle Roller | Misalignment: | No |
| Radial Clearance: | Normal | Bore Type: | Straight |
| Seal Type: | Unsealed | Number of Rows: | 1 |
| Duplexing: | No | Speed (Max) Grease: | 4,000 |
| Platform: | Guiderol Bearing | Dynamic Load Rating: | 5,100 |
| Full Complement/Caged: | Full Complement | Speed (Max) Oil: | 8,000 |
| Sealed: | None | Static Load Rating (lb): | 10,900 lb |
| Operating Temperature Range: | -20 to 250 °F | Related Inner Ring: | MI 8 |
| Standard Met: | ABMA, ISO | Flanges: | No Flanges |
| Precision Rating: | RBEC-1 | Lubrication Hole Type: | Lubrication Groove & Hole |
| Separable: | Nonseparable | Enclosure: | Open |
| Component Type: | Outer race only | Retainer: | No |
