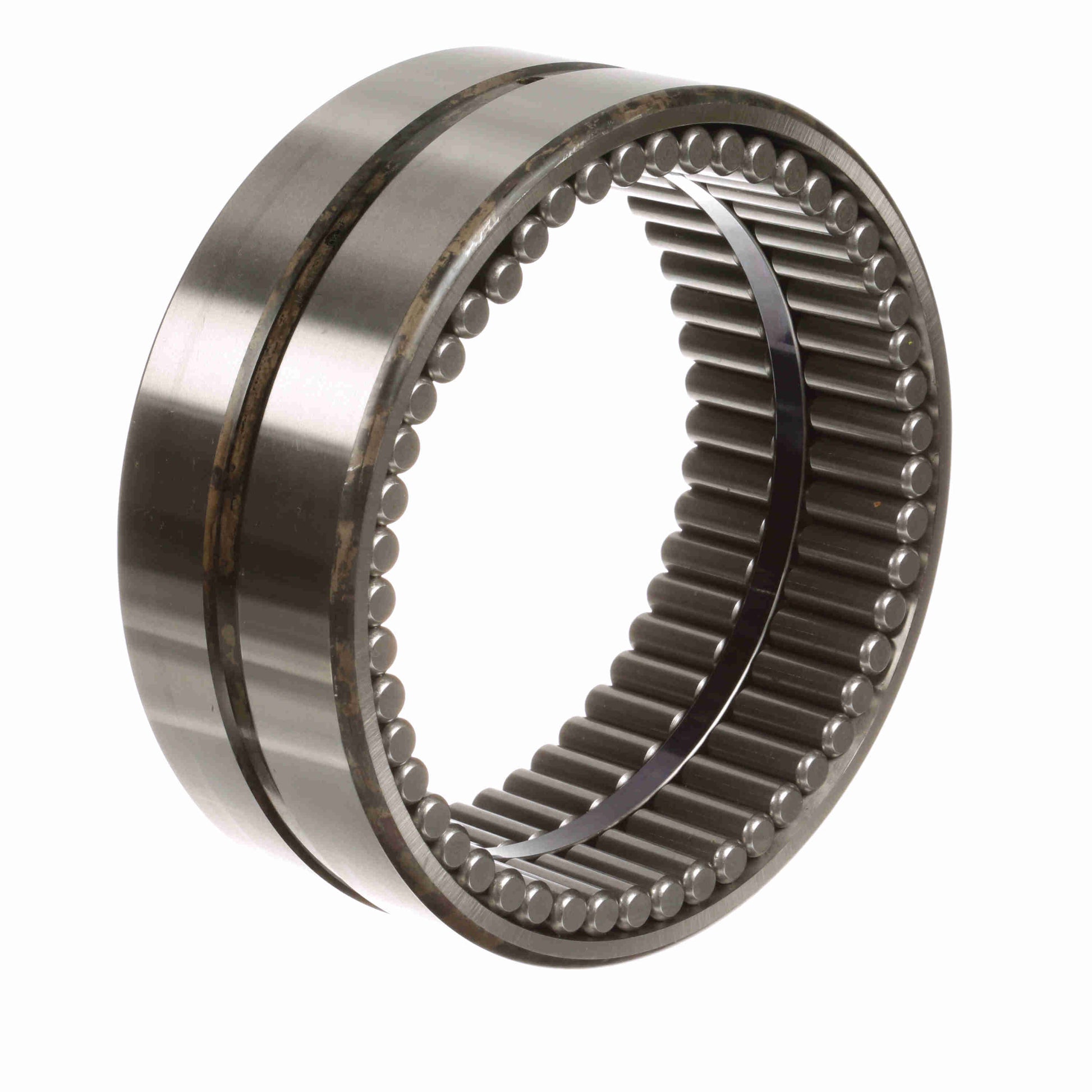

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (with inner) - GR 104
General Specifications
| UPC: | 726166063689 | Weight: | 13.55 LB |
| Packaged Length: | 8.06 Inches | Packaged Width: | 8.06 Inches |
| Packaged Height: | 3 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 3 | Bore Size - Inch: | 6.5000 in |
| Housing & Shaft Fillet (in): | 0.12 in | Outside Diameter - Inch: | 8 in |
| Hole Diameter: | 0.25 |
Technical Specifications
| Series: | Standard | Includes Inner Ring: | No |
| Material: | 52100 Bearing Steel | Cage Material: | No retainer |
| Rolling Element: | Needle Roller | Number of Rows: | 1 |
| Misalignment: | No | Bore Type: | Straight |
| Seal Type: | Unsealed | Radial Clearance: | Normal |
| Speed (Max) Grease: | 450 | Full Complement/Caged: | Full Complement |
| Static Load Rating (lb): | 308,000 lb | Duplexing: | No |
| Speed (Max) Oil: | 930 | Dynamic Load Rating: | 75,000 |
| Sealed: | None | Platform: | Guiderol Bearing |
| Precision Rating: | RBEC-1 | Lubrication Hole Type: | Lubrication Groove & Hole |
| Related Inner Ring: | MI 88 | Flanges: | No Flanges |
| Standard Met: | ABMA, ISO | Operating Temperature Range: | -20 to 250 °F |
| Component Type: | Outer race only | Enclosure: | Open |
| Separable: | Nonseparable | Retainer: | No |
