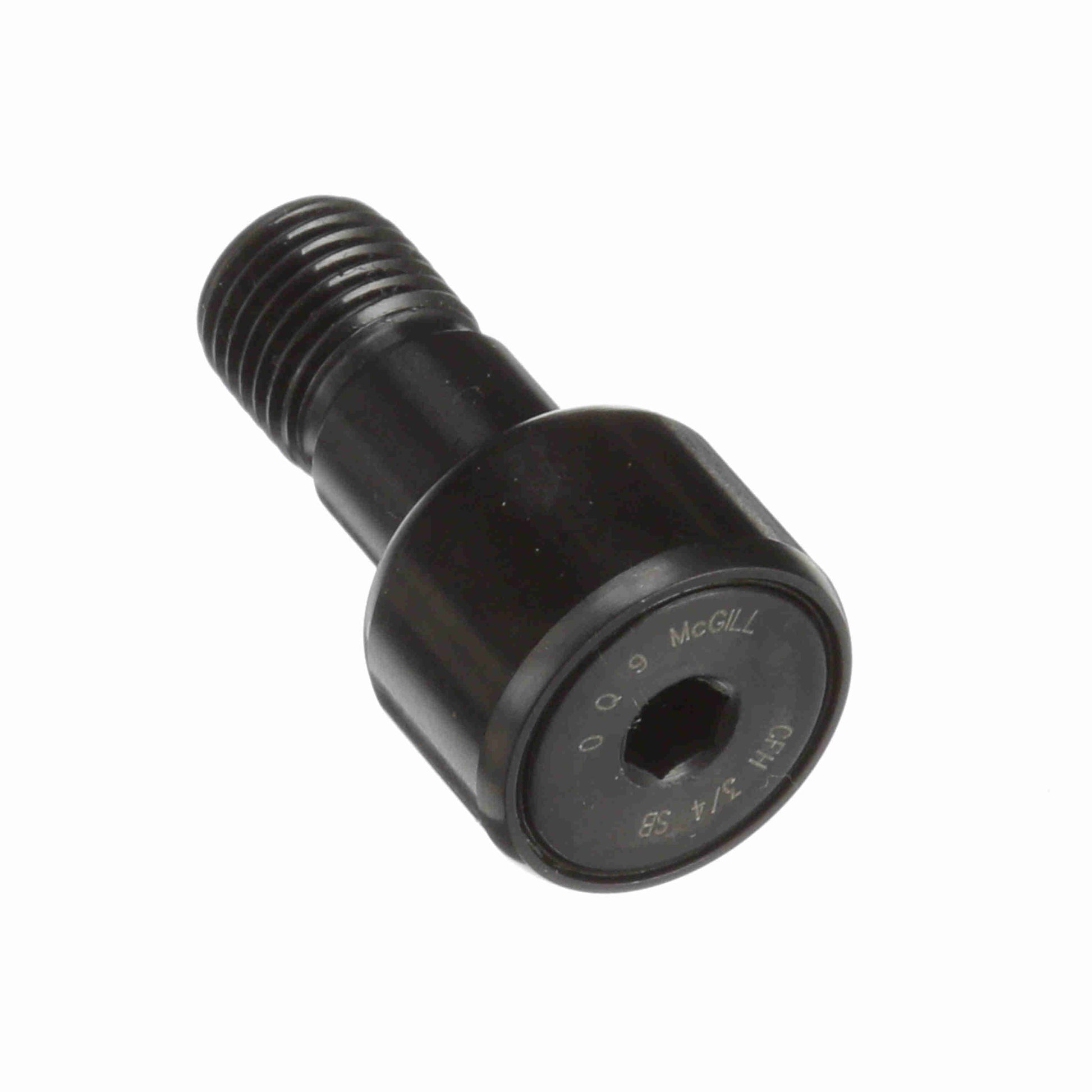

รายละเอียด ตลับลูกปืน McGill Heavy Stud CAMROL® Cylindrical Inch Cam Follower - Stud Mount Roller - Hex Hole - Sealed - CFH 3/4 SB
General Specifications
| UPC: | 726166032210 | Weight: | 0.10 LB |
| Packaged Length: | 1.75 Inches | Packaged Width: | 1 Inches |
| Packaged Height: | 1.75 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Threads: | 7/16-20 | Roller Width - Inch: | 0.5 |
| Stud Length - Inch: | 0.875 | Oil Hole Diameter - Inch: | 0.094 |
| Oil Hole Center - Inch: | 0.25 | Minimum Thread Length - Inch: | 0.375 |
| Lubrication Fitting Size - Metric: | 3/16 | Stud Diameter - Inch: | 0.4375 |
| Roller Diameter - Inch: | 0.75 | Lubrication Fitting Size - Inch: | 3/16 |
Technical Specifications
| Rolling Element: | Needle Roller - Full Complement | O.D. Configuration: | Cylindrical |
| Limiting Speed: | 6,400 | Adjustment: | None |
| Hex/Slot: | Hex Hole | Sealing: | Sealed |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Platform: | CAMROL® | Clamping Torque - in-lbf: | 250 |
| Roller Shape: | Cylindrical | Stud Type: | Heavy Stud |
| Static Load Rating: | 2,100 | Dynamic Load Rating - lb: | 1,660 |
| Tolerance Class: | P0 Equivalent |
