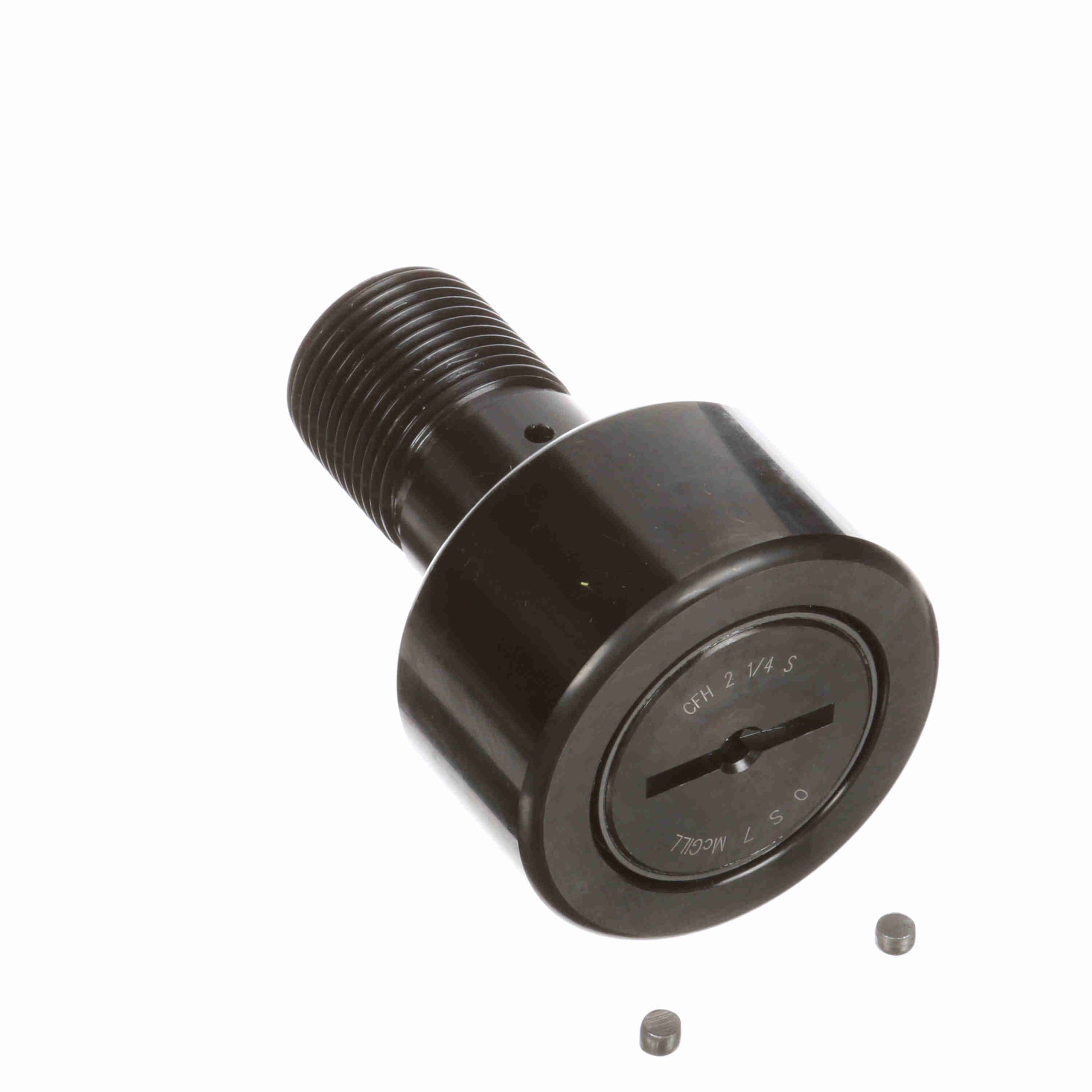

รายละเอียด ตลับลูกปืน McGill Heavy Stud CAMROL® Cylindrical Inch Cam Follower - Stud Mount Roller - Screwdriver Slot - Sealed - CFH 2 1/4 S
General Specifications
| UPC: | 726166038038 | Weight: | 1.81 LB |
| Packaged Length: | 2.31 Inches | Packaged Width: | 2.31 Inches |
| Packaged Height: | 3.43 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Threads: | 1 1/8-12 | Stud Diameter - Inch: | 1.125 |
| Oil Hole Center - Inch: | 0.5 | Lubrication Fitting Size - Metric: | 3/16 |
| Roller Width - Inch: | 1.25 | Stud Length - Inch: | 2 |
| Roller Diameter - Inch: | 2.25 | Minimum Thread Length - Inch: | 1 |
| Lubrication Fitting Size - Inch: | 3/16 | Oil Hole Diameter - Inch: | 0.125 |
Technical Specifications
| Hex/Slot: | Screwdriver Slot | Rolling Element: | Needle Roller - Full Complement |
| Sealing: | Sealed | O.D. Configuration: | Cylindrical |
| Limiting Speed: | 1,300 | Adjustment: | None |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Clamping Torque - in-lbf: | 2,800 | Stud Type: | Heavy Stud |
| Platform: | CAMROL® | Tolerance Class: | P0 Equivalent |
| Static Load Rating: | 17,600 | Dynamic Load Rating - lb: | 8,090 |
| Roller Shape: | Cylindrical |
