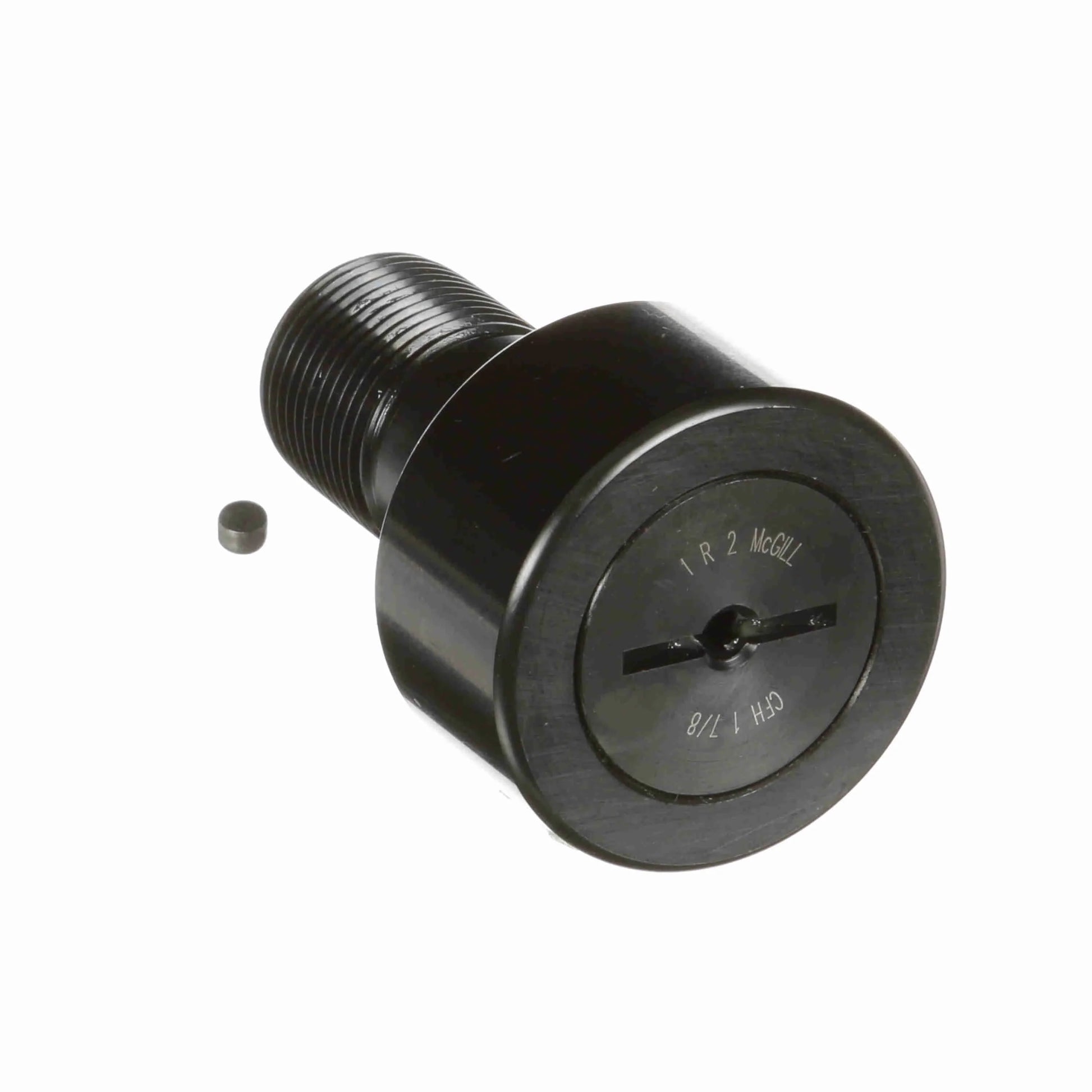

รายละเอียด ตลับลูกปืน McGill Heavy Stud CAMROL® Cylindrical Inch Cam Follower - Stud Mount Roller - Screwdriver Slot - CFH 1 7/8
General Specifications
| UPC: | 726166037031 | Weight: | 1.11 LB |
| Packaged Length: | 2 Inches | Packaged Width: | 2 Inches |
| Packaged Height: | 2.87 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Threads: | 1-14 | Stud Diameter - Inch: | 1 |
| Oil Hole Diameter - Inch: | 0.094 | Roller Width - Inch: | 1 |
| Lubrication Fitting Size - Metric: | 3/16 | Stud Length - Inch: | 1.75 |
| Minimum Thread Length - Inch: | 0.875 | Roller Diameter - Inch: | 1.875 |
| Lubrication Fitting Size - Inch: | 3/16 | Oil Hole Center - Inch: | 0.438 |
Technical Specifications
| Adjustment: | None | Sealing: | Unsealed |
| Limiting Speed: | 2,000 | Rolling Element: | Needle Roller - Full Complement |
| O.D. Configuration: | Cylindrical | Hex/Slot: | Screwdriver Slot |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Static Load Rating: | 14,800 | Platform: | CAMROL® |
| Stud Type: | Heavy Stud | Clamping Torque - in-lbf: | 2,250 |
| Roller Shape: | Cylindrical | Tolerance Class: | P0 Equivalent |
| Dynamic Load Rating - lb: | 6,385 |
