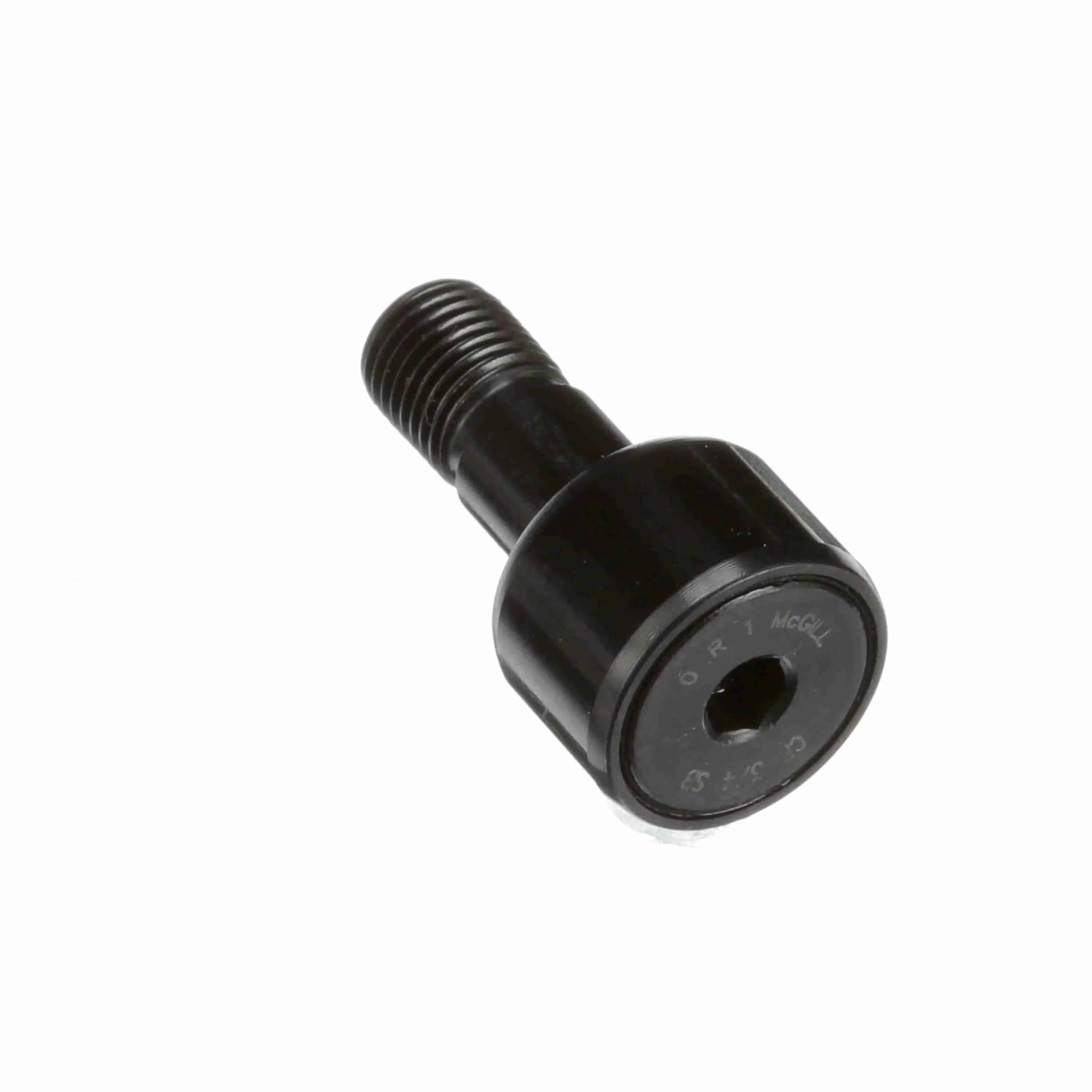

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Inch Cam Follower - Stud Mount Roller - Hex Hole - Sealed - CF 3/4 SB
General Specifications
| UPC: | 726166031923 | Weight: | 0.09 LB |
| Packaged Length: | 1.75 Inches | Packaged Width: | 1 Inches |
| Packaged Height: | 1.75 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Threads: | 3/8-24 | Oil Hole Center - Inch: | 0.25 |
| Oil Hole Diameter - Inch: | 0.094 | Roller Width - Inch: | 0.5 |
| Stud Length - Inch: | 0.875 | Minimum Thread Length: | 0.375 |
| Roller Diameter - Inch: | 0.75 | Hex Socket - Inch: | 0.1875 |
| Lubrication Fitting Size - Metric: | 0.1875 | Stud Diameter - Inch: | 0.375 |
| Lubrication Fitting Size - Inch: | 0.1875 |
Technical Specifications
| Limiting Speed: | 6,400 | Adjustment: | None |
| O.D. Configuration: | Cylindrical | Rolling Element: | Needle Roller - Full Complement |
| Sealing: | Sealed | Dynamic Radial Rating: | 1,660 |
| Hex/Slot: | Hex Hole | Relubricatable: | Yes |
| Material: | Bearing Steel, Black Oxide Finish | Clamping Torque - in-lbf: | 95 |
| Static Load Rating: | 1,500 | Dynamic Load Rating - lb: | 1,660 |
| Stud Type: | Standard Stud | Platform: | CAMROL® |
| Tolerance Class: | P0 Equivalent | Roller Shape: | Cylindrical |
