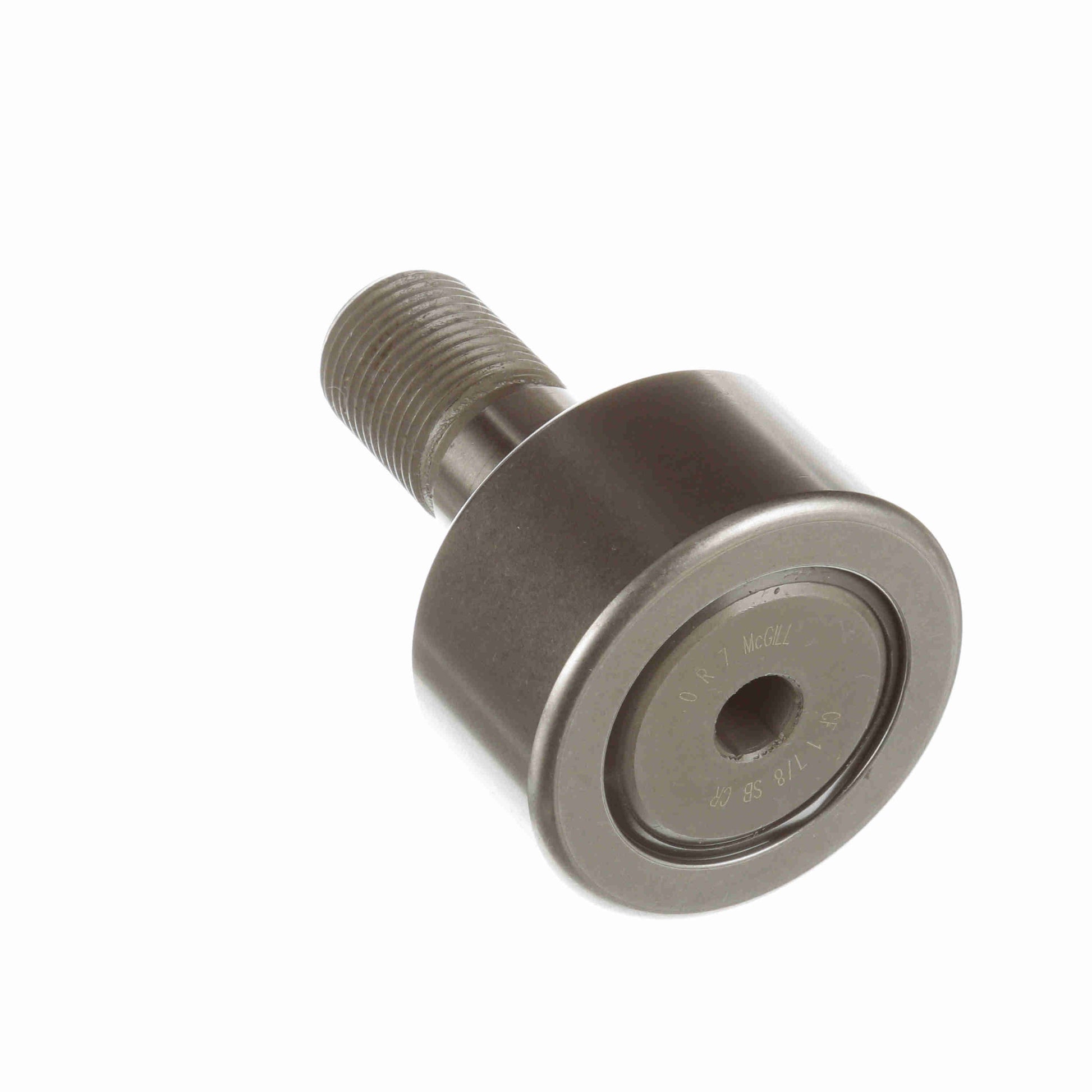

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical 440C Stainless Steel CRES Cam Follower - Stud Mount Roller - Hex Hole - Sealed - CF 1 7/8 SB CR
General Specifications
| UPC: | 726166118433 | Weight: | 1.34 LB |
| Packaged Length: | 2 Inches | Packaged Width: | 2 Inches |
| Packaged Height: | 2.87 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Threads: | 3/4-16 | Stud Length - Inch: | 1.75 |
| Lubrication Fitting Size - Inch: | 0.1875 | Lubrication Fitting Size - Metric: | 0.1875 |
| Roller Diameter - Inch: | 1.875 | Stud Diameter - Inch: | 0.75 |
| Roller Width - Inch: | 1 | Minimum Thread Length: | 0.875 |
| Hex Socket - Inch: | 0.3125 |
Technical Specifications
| Sealing: | Sealed | O.D. Configuration: | Cylindrical |
| Rolling Element: | Needle Roller - Full Complement | Hex/Slot: | Hex Hole |
| Adjustment: | None | Dynamic Radial Rating: | 6,000 |
| Limiting Speed: | 2,000 | Relubricatable: | Yes |
| Material: | 440C Stainless Steel | Static Load Rating: | 5,550 |
| Clamping Torque - in-lbf: | 1,250 | Platform: | CAMROL® |
| Tolerance Class: | P0 Equivalent | Roller Shape: | Cylindrical |
| Stud Type: | Standard Stud | Dynamic Load Rating - lb: | 5,730 |
