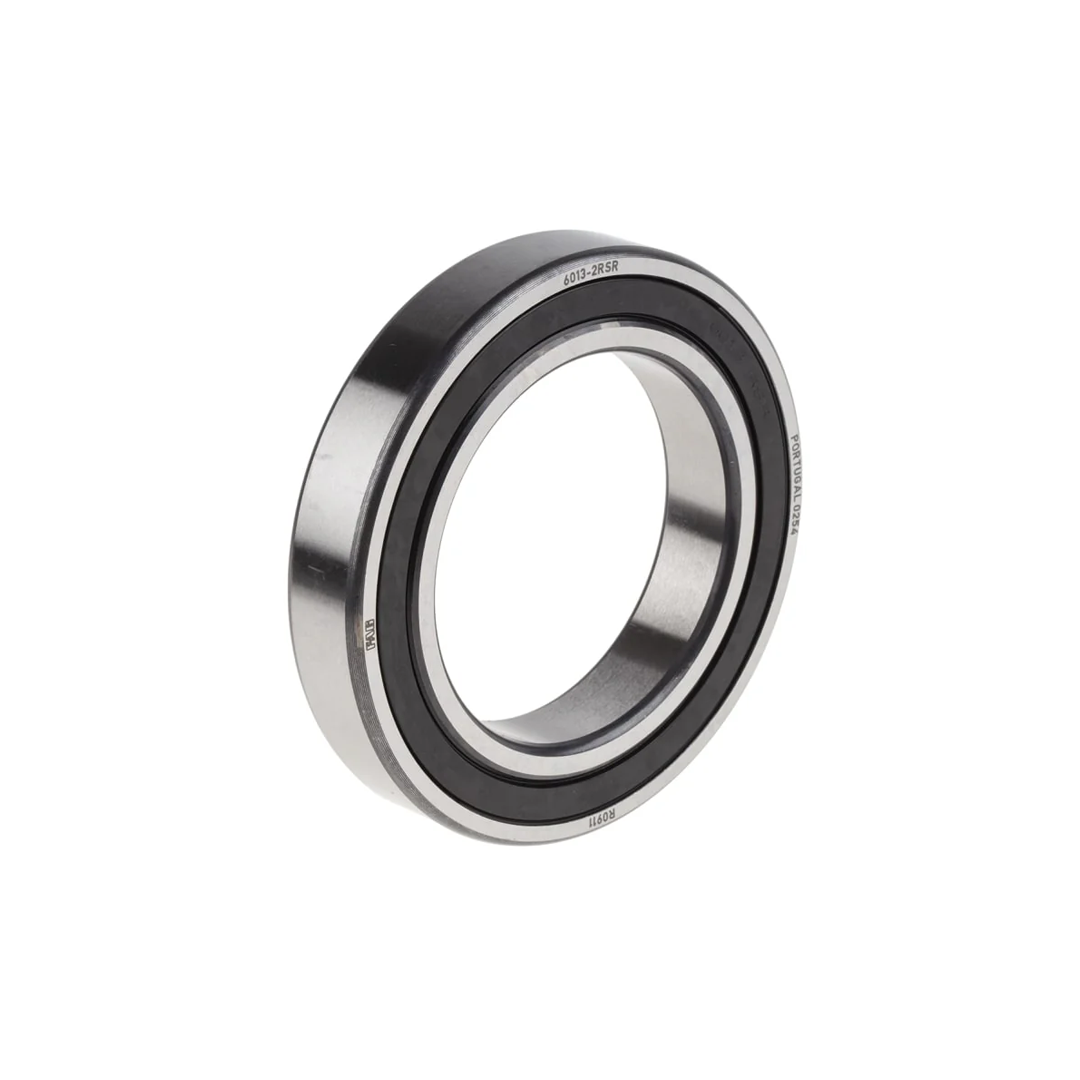

ตลับลูกปืน FAG 6013-2RSR

The FAG double sealed single row deep groove ball bearing with a sheet steel cage supports radial loads and axial loads in both directions. It is also suitable for high speed applications. It has an internal diameter of 65mm, an outer diameter of 100mm and a width of 18mm. The bearing allows for thermal expansion as the bearing supports radial loads and its balls, operating in the deep raceway geometry, reduce rotational friction. This bearing is rated 'Very Light, ' making it applicable for use in limited space applications where shaft sizes are large and the loads are not substantial. The inner and outer rings and balls are made of a low-alloy, through-hardened chromium steel for durability, heat tolerance and resistance to deformity under heavy loads and the sheet steel cage prevents the balls from coming into contact with each other during use, reducing friction, vibration and noise. The bearing has a rubber seal on either side that is fastened to the outside ring, extends over the rolling elements and makes contact with the inside ring, keeping out contaminants such as dirt and grime. The seals also hold in a high quality lubricant applied during manufacturing that will last the lifetime of the bearing.

• Maximum rotational speed of4300rpm• Static load capacity of 5620lbf• Dynamic Load Capacity of 6900lbf• Deep groove geometry for high speeds and supporting both radial and axial loads• Operating temperatures up to 120C• Sheet steel cage evenly spaces balls for reduced friction, vibration and noise• Rubber seals on both sides of the bearing keep the lubricant in and contaminants out

• Transmissions• Motors• Pumps• Bicycles• Inline skates

• DIN 625-1
