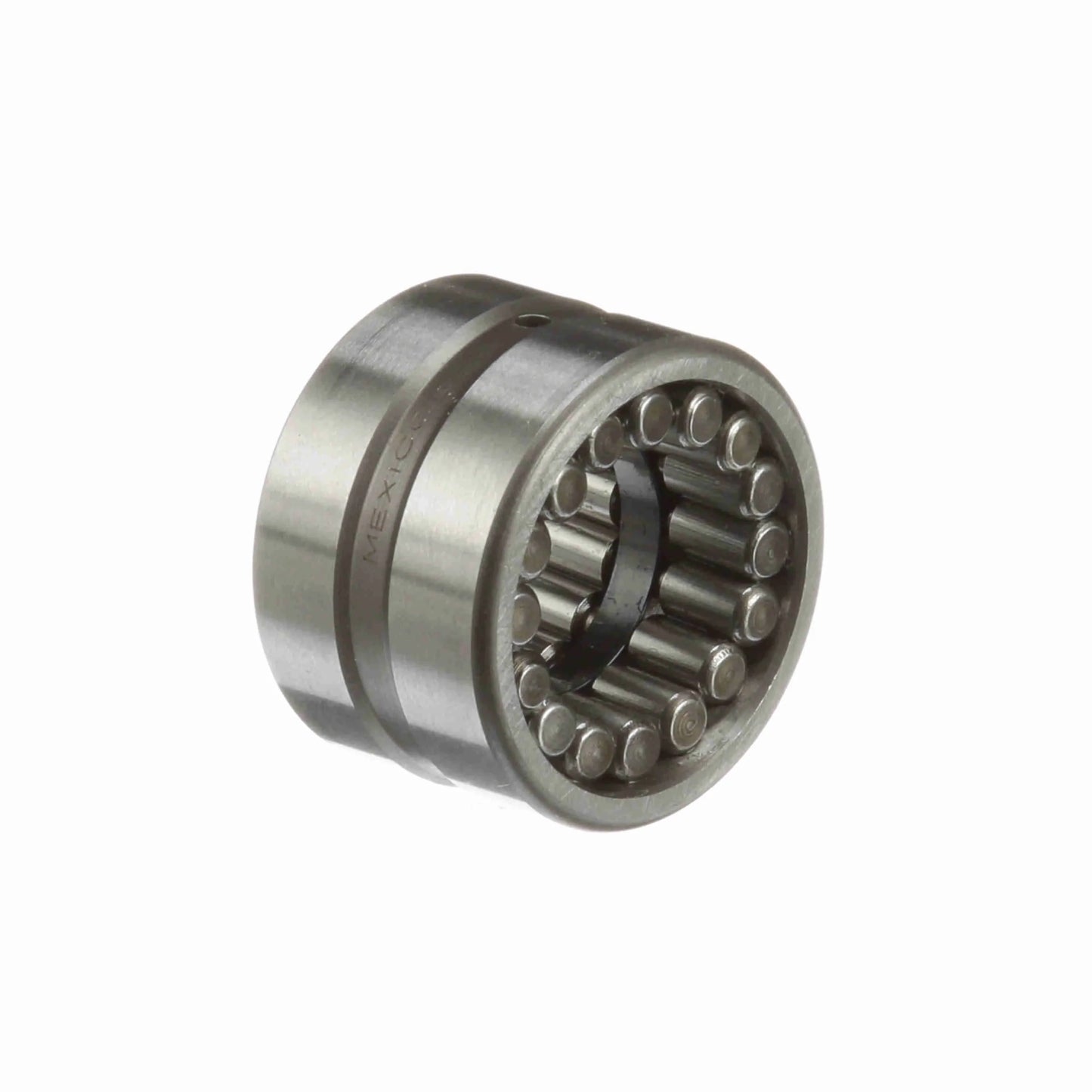

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - GR 10 N
General Specifications
| UPC: | 726166061289 | Weight: | 0.13 LB |
| Packaged Length: | 1.9 Inches | Packaged Width: | 1.7 Inches |
| Packaged Height: | 1 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 0.75 | Bore Size - Inch: | 0.6250 in |
| Housing & Shaft Fillet (in): | 0.025 in | Hole Diameter: | 0.079 |
| Outside Diameter - Inch: | 1.125 in |
Technical Specifications
| Series: | Narrow | Material: | 52100 Bearing Steel |
| Includes Inner Ring: | No | Cage Material: | No retainer |
| Rolling Element: | Needle Roller | Seal Type: | Unsealed |
| Radial Clearance: | Normal | Bore Type: | Straight |
| Number of Rows: | 1 | Misalignment: | No |
| Full Complement/Caged: | Full Complement | Platform: | Guiderol Bearing |
| Static Load Rating (lb): | 6,400 lb | Speed (Max) Oil: | 9,600 |
| Speed (Max) Grease: | 4,800 | Dynamic Load Rating: | 3,400 |
| Duplexing: | No | Sealed: | None |
| Lubrication Hole Type: | Lubrication groove and hole | Precision Rating: | RBEC-1 |
| Related Inner Ring: | MI 6 N, MI 7 N | Operating Temperature Range: | -20 to 250 °F |
| Flanges: | No flange | Separable: | Nonseparable |
| Component Type: | Outer race only | Enclosure: | Open |
| Retainer: | No |
