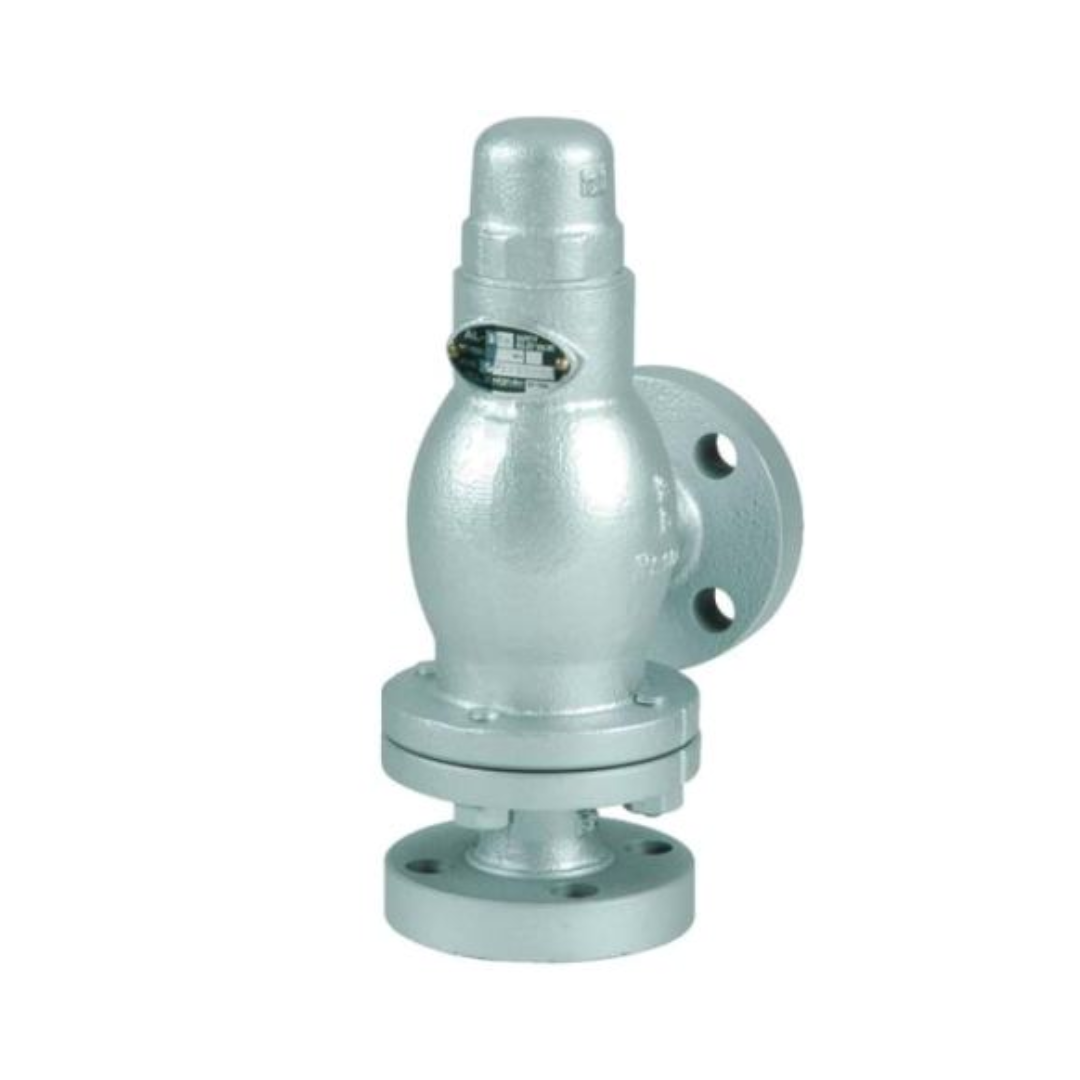

![Safety Valve วาล์วนิรภัย Yoshitake AL-301 1 1/2 นิ้ว 40A](https://cdn.shopify.com/s/files/1/0577/0801/9878/files/Diamension_Valve_Yoshitake_0038_AL-301.jpg?v=1680159222)
Dimensions
Size | Dimension (mm) | Flow area (mm2) | Weight(Kg.) | |||
---|---|---|---|---|---|---|
L | H1 | H | Seat diameter | |||
15A | 90 | 108 | 245 | 25 | 49.1 | 4.7 |
20A | 90 | 108 | 245 | 25 | 49.1 | 5.0 |
25A | 90 | 108 | 245 | 25 | 49.1 | 6.2 |
32A | 91 | 115 | 285 | 37 | 107.6 | 8.6 |
40A | 91 | 115 | 285 | 38 | 113.5 | 8.8 |
50A | 105 | 132 | 311 | 50 | 196.4 | 12.6 |
