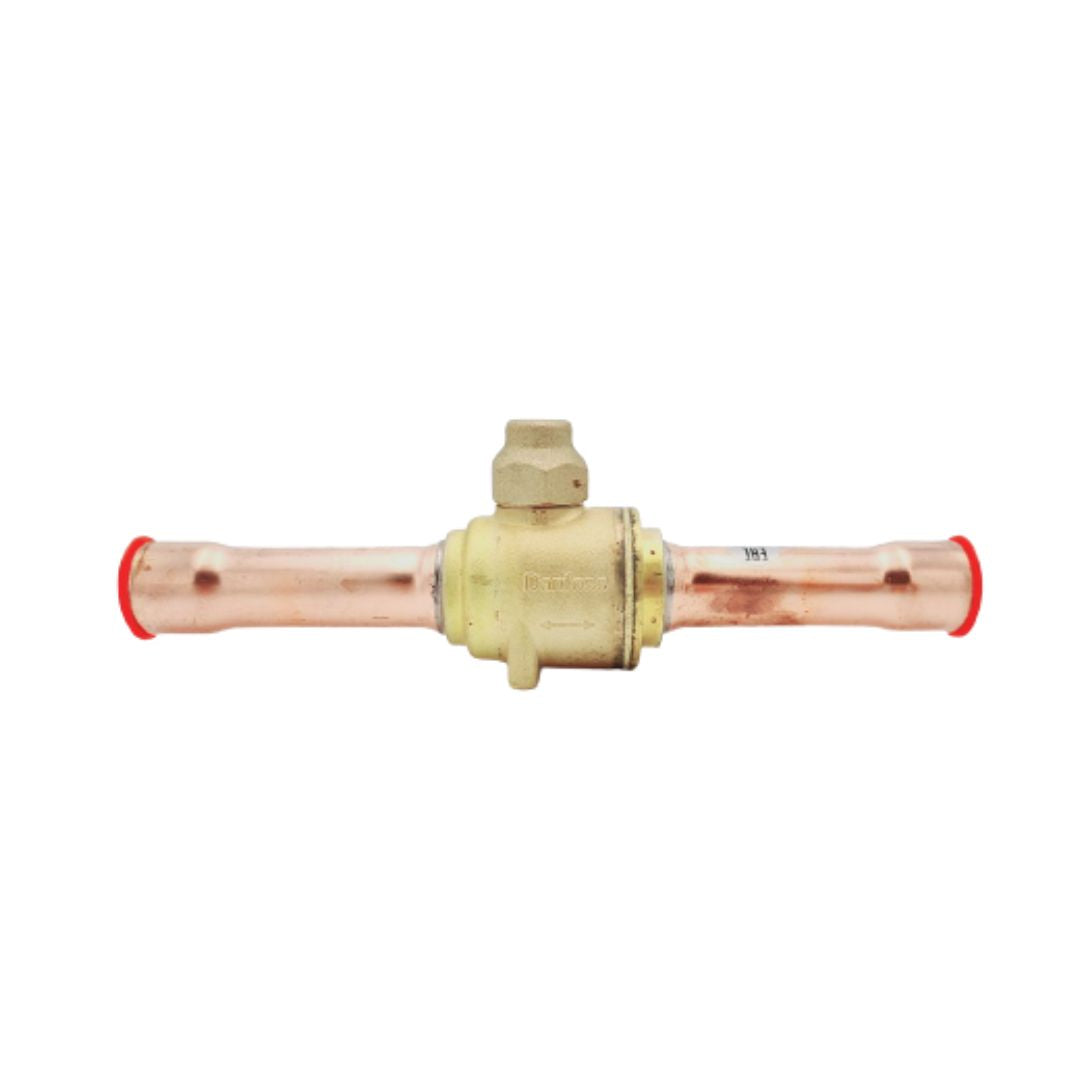

Ball Valve Danfoss GBC 22s Connection 7/8 lnch Code 009L7025
Ball Valve Danfoss GBC 22s Connection 7/8 lnch Code 009L7025
ราคาปกติ
2,639.62 ฿
ราคาปกติ
ราคาโปรโมชัน
2,639.62 ฿
ราคาต่อหน่วย
ต่อ
DANFOSS
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
รายละเอียด Ball Valve Danfoss GBC 22s Connection 7/8 lnch Code 009L7025
Data Sheets :
Product details
| Gross weight | 0.458 Kg |
| Net weight | 0.4 Kg |
| Volume | 0.77 Liter |
| EAN | 5702428515764 |
| Access port | No |
| Approval | C UL US LISTED CE EAC UKCA |
| Body material | Brass |
| Connection material | Copper |
| Cv value [gal/min] | 38.54 gal/min |
| Direction | Straightway |
| Equipment | Cap w. wire seal |
| Flow direction | Bi-flow |
| Flow direction indicator | Embossed 2-way arrow |
| Fluid Group | 1 2 |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 7/8 in |
| Inlet size [mm] | 22 mm |
| Kv value [m³/h] | 33.34 m³/h |
| Max. media temp. Oil free [°C] | 80 °C |
| Max. test pressure [bar] | 65 bar |
| Max. test pressure [psig] | 940 psig |
| Max. Working Pressure [bar] | 45 bar |
| Max. Working Pressure [psig] | 650 psig |
| Medium temp. range note | 100°C-150°C for short term use |
| Oil free refrigerants | R1234ze(E) R134a R513A R515B R516A |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 7/8 in |
| Outlet size [mm] | 22 mm |
| Packing format | Multi pack |
| Panel mounting option | M4 × 0.7 (2 PC) |
| PED category | Art. 4, par. 3 |
| Product accessories | BM/GBC valve accessories |
| Product group | Shut-off and regulating valves |
| Product Name Description | Shut-off ball valve |
| Quantity per packing format | 25 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a,R22/R407C,R407A,R407F R410A,R448A,R449A,R450A,R452A R513A,R1234yf,R407H,R449B,R454C R455A,R515B,R516A,R1234ze(E),R290 R452B,R454B,R454A,R404A/R507A R463A,R32 |
| SCIP dossier no. | 4b2fe785-688b-4157-ad7e-68b26c6e3e7b |
| Serviceable | BM/GBC valve spare parts |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 300 °F |
| Temperature range [°F] [min] | -40 °F |
| Type | GBC 22s |
| UL approved refrigerants | R134a,R22,R404A,R407A R407C,R407F,R407H,R410A R448A,R449A,R449B,R450A R452A,R507A,R513A,R515B R516A,R1234yf,R1234ze(E) R290,R32,R452B,R454A R454B,R454C,R455A,R463A |
